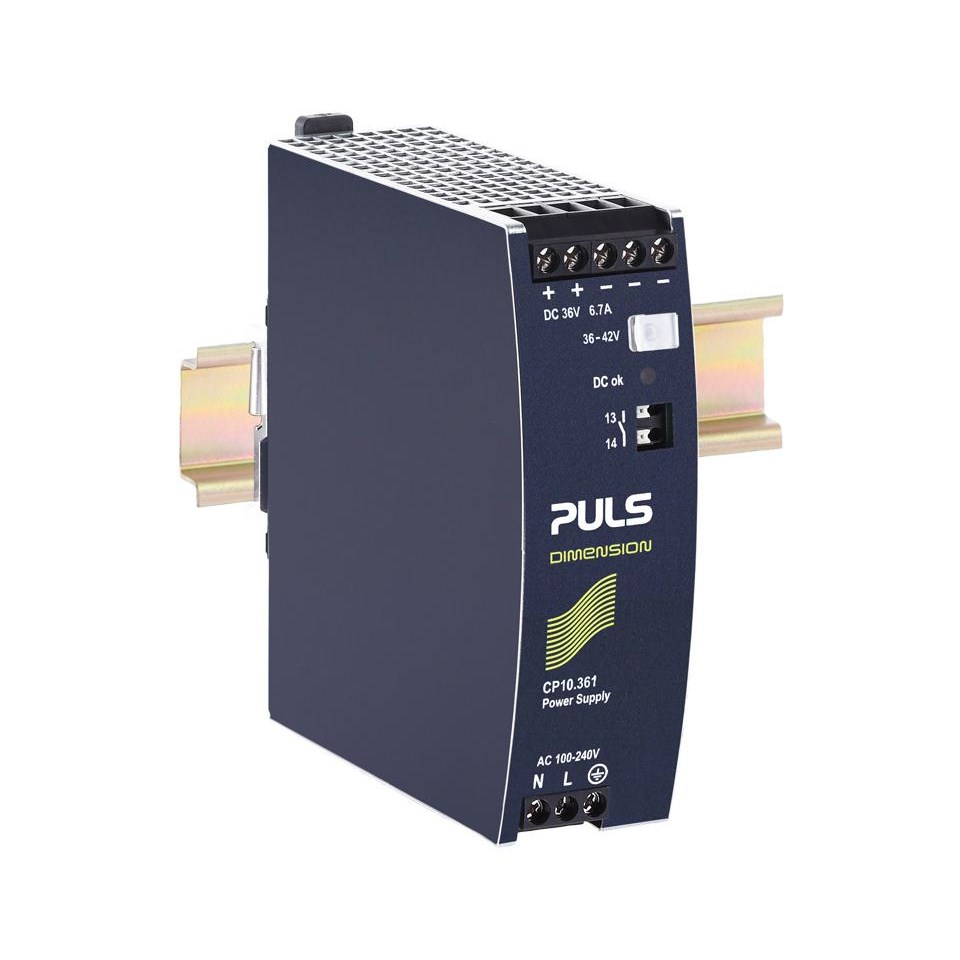

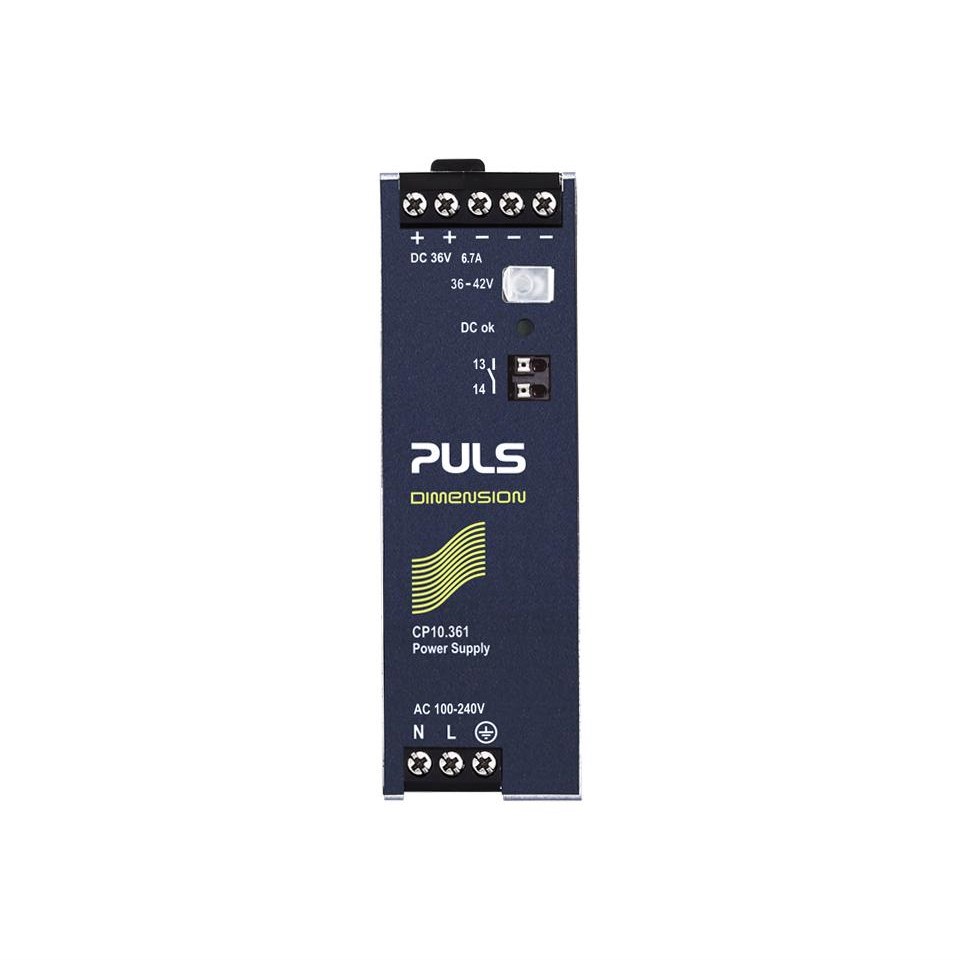

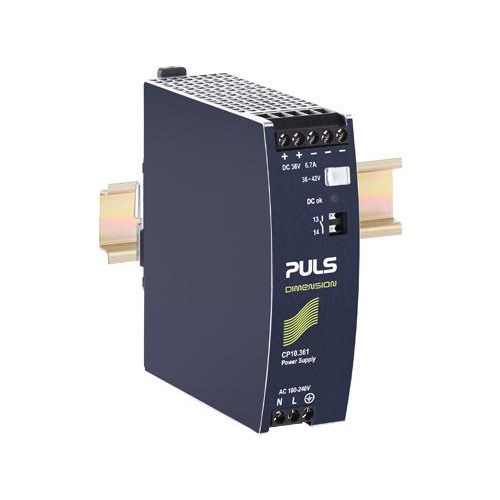

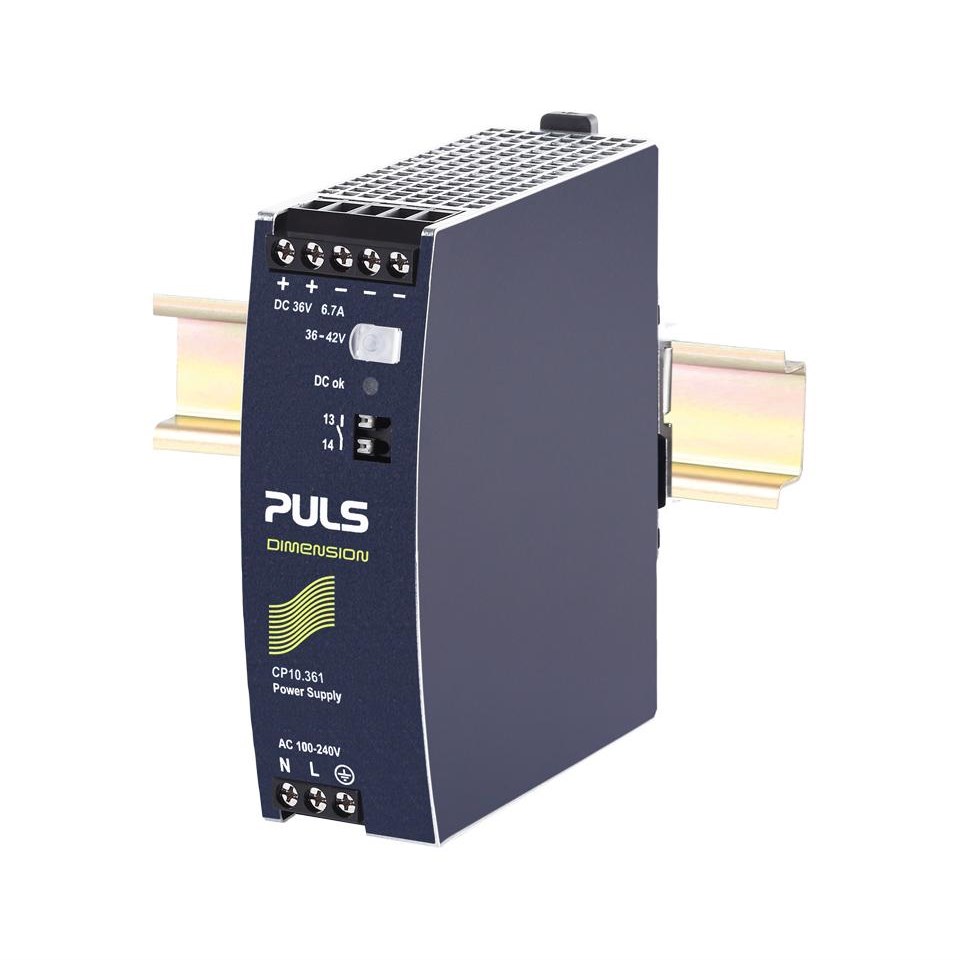

Puls CP10.361 Power Supply 1PH 110-150VDC 36VDC 6.7A 240 Watt 12.1 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CP10.361

  • Single-phase, 240W power supply
  • High efficiency at 95.2%
  • Wide-range input, 110-150 VDC
  • Active inrush current limitation
  • DIN rail mounting for easy install
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension C

Electrical

Input Voltage
100 - 240 V AC (± 15 %) / 110 V - 150 V DC (± 20 %)
Output Current - Nominal
5.7A at 42V 6.7A at 36V
Output Current - Range
6.7A to 5.7A
Output Power
240W
Output Voltage - Nominal
36V DC
Output Voltage - Range
36V to 42V
Efficiency
95.2% (typical)
Terminal Type
Screw Terminals

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.6kg
Width
39mm

Environmental

Operating Temperature
-25°C to 70°C
