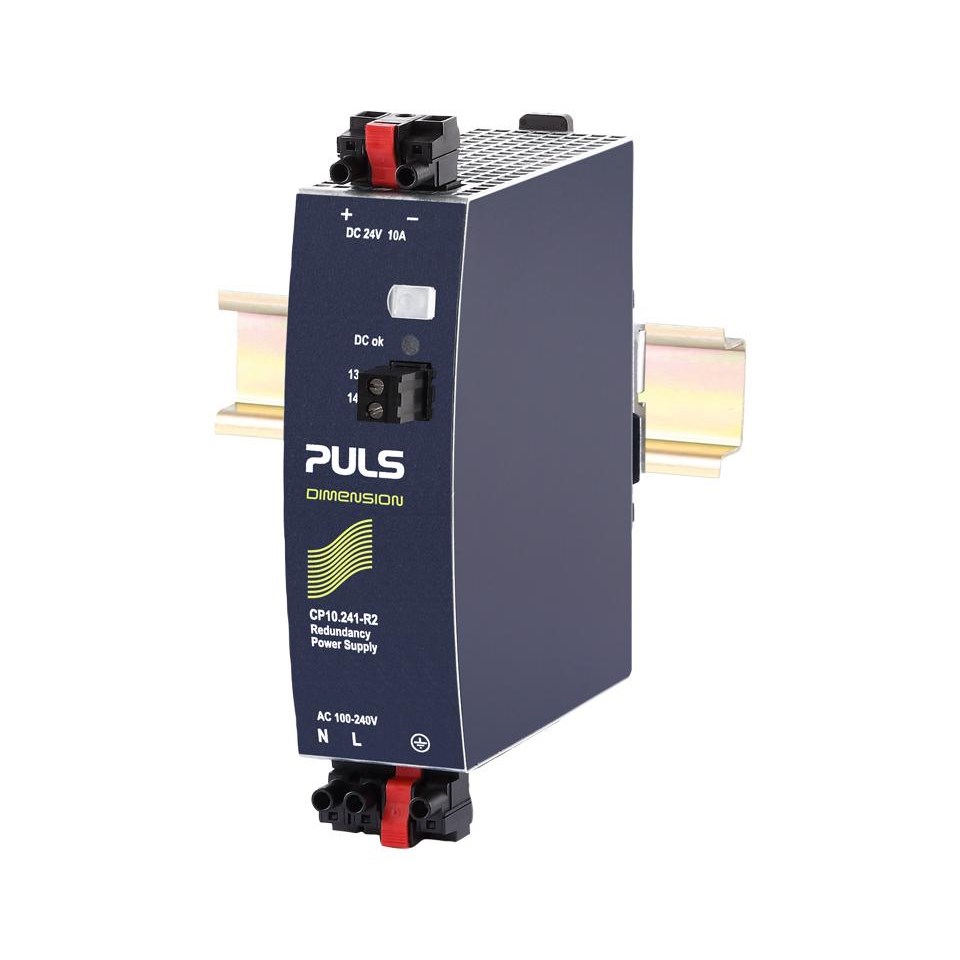

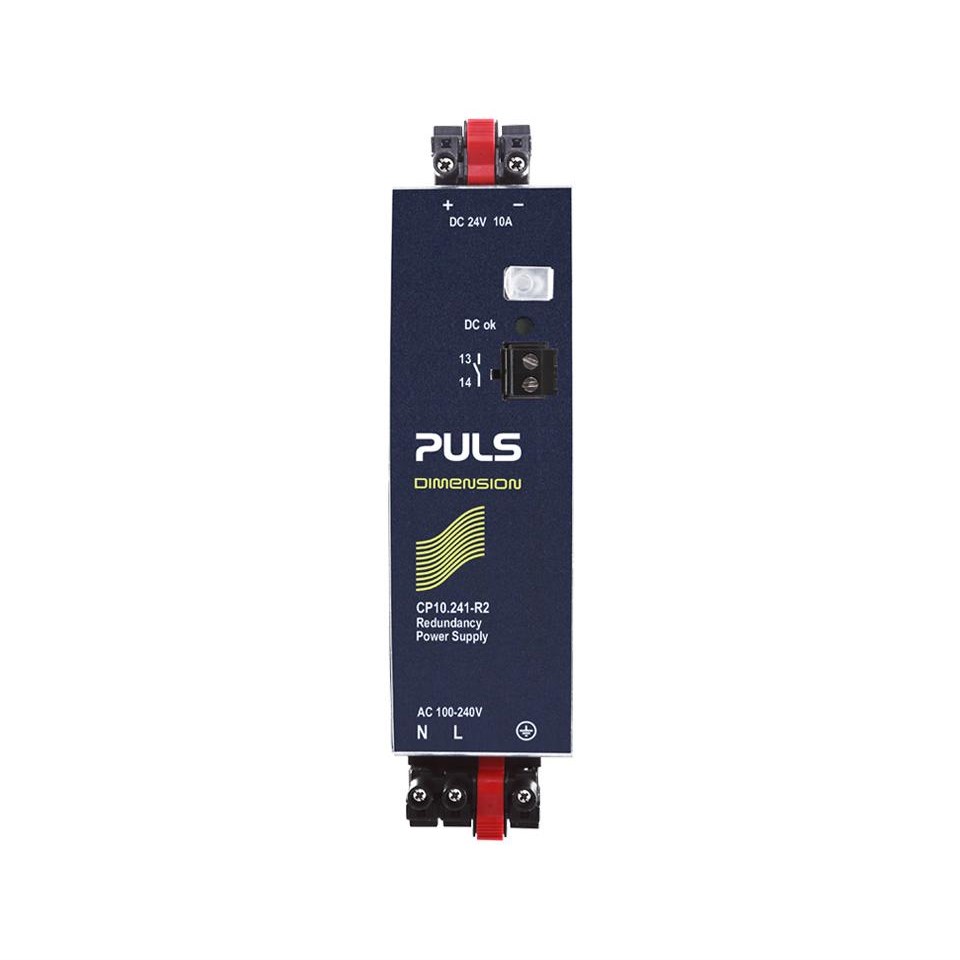

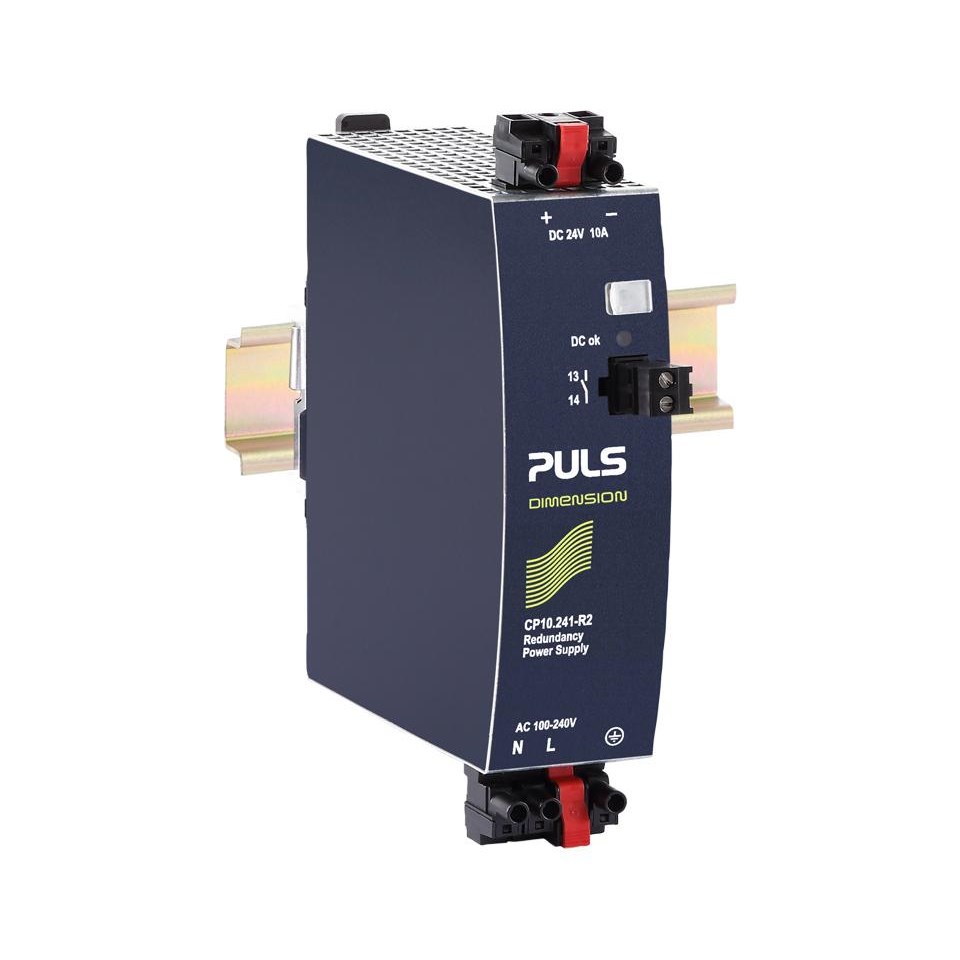

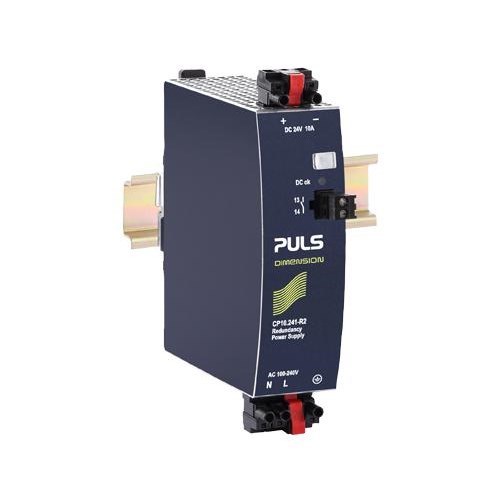

Puls CP10.241-R2 Power Supply 110-150VDC 10A 240 Watt 13.4 Watt DIN Rail Mount Plug IP20

Product Code: CP10.241-R2

  • Rated current of 10 A for reliable performance
  • Compact size: 39 mm width, 124 mm height
  • High efficiency at 94.7% with active inrush limit
  • Wide operational temp range: -25 to 70°C
  • DIN rail mounting with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply With Integrated Decoupling Function
Brand
Puls
Series
CP-Series

Electrical

Input Voltage
110V to 150V
Output Current - Nominal
10A
Output Power
240W
Output Voltage - Nominal
24V
Efficiency
93 / 94.7%
Terminal Type
Plug connector

Mechanical

Housing Material
Body:Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.6kg
Width
39mm

Environmental

Approvals / Conformity
IEC 60950, IEC 62368, IEC 61010, UL 61010, Class I Div 2, ATEX, IECEx, IEC 61558-2-16, Semi F47, IEC 60068-2-60, ISA-71.04-1985, VDMA 24364, CE, WEEE, REACH, RoHS-China, KC, CCC
Operating Temperature
-25°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
