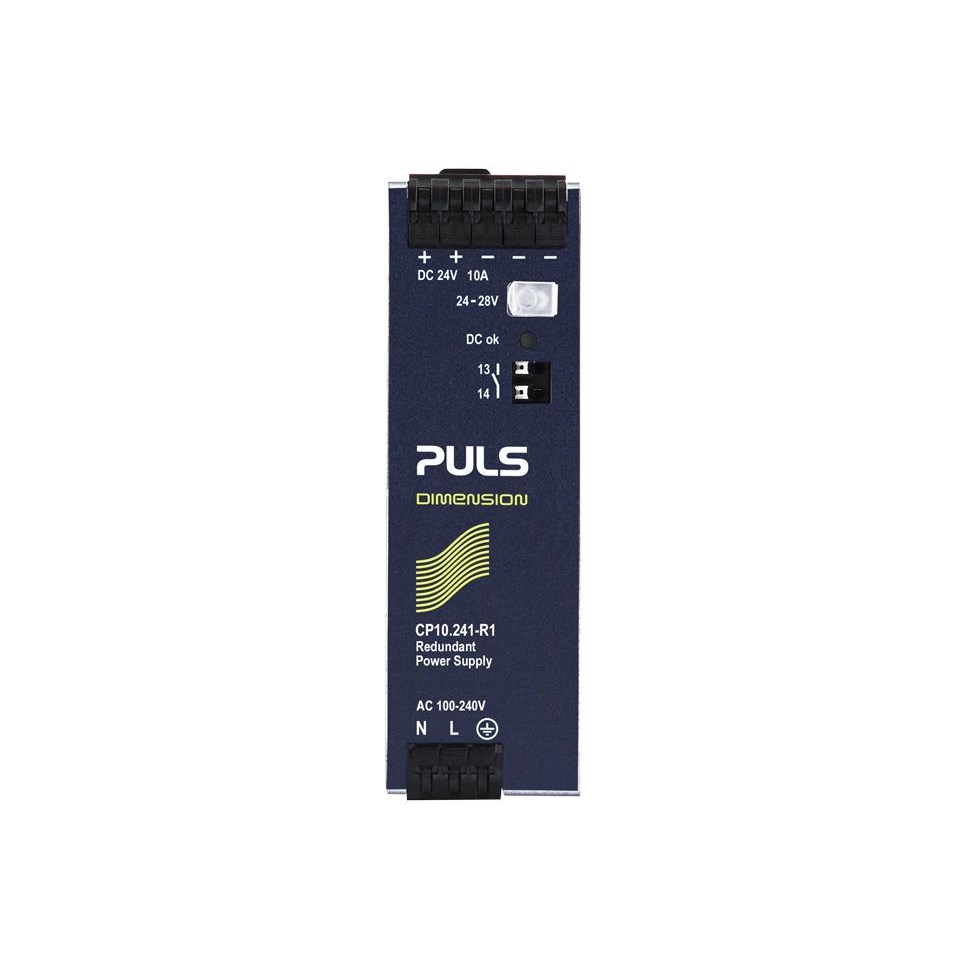

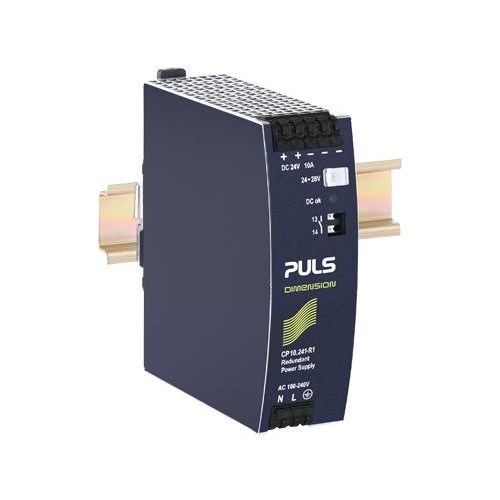

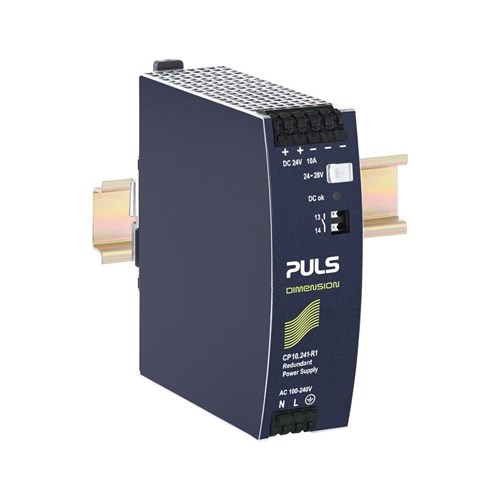

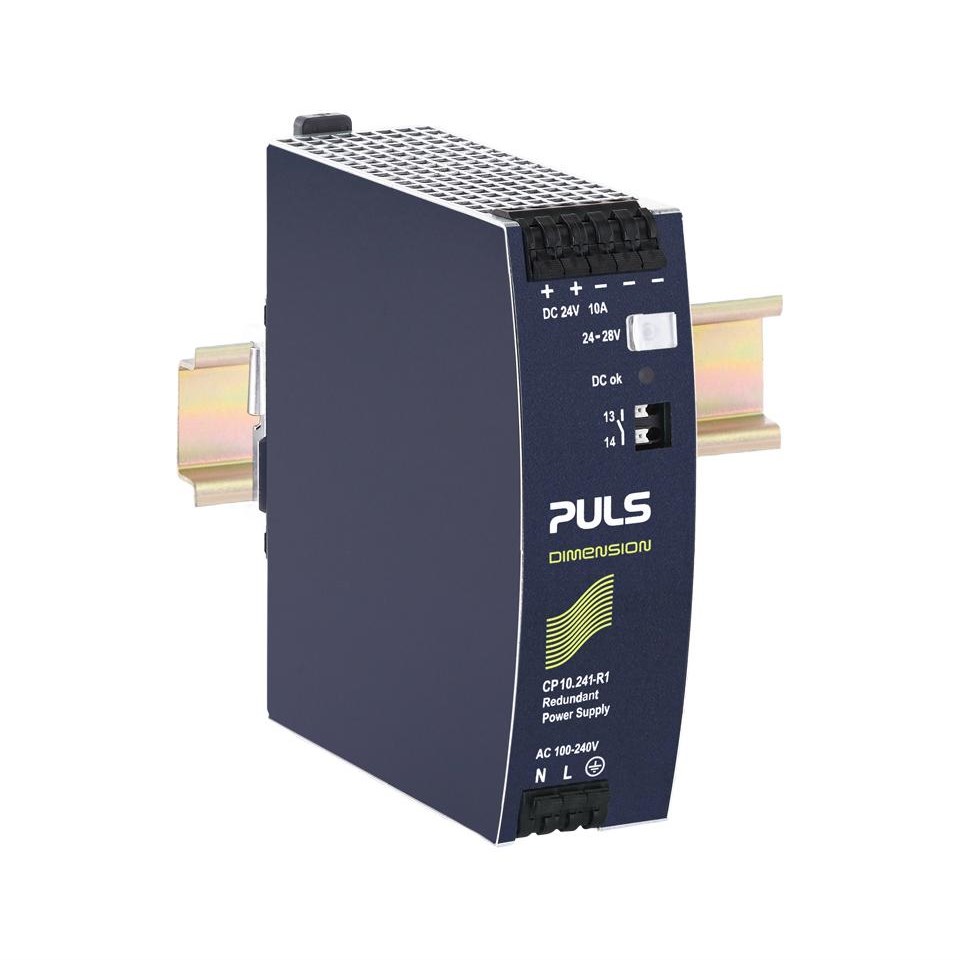

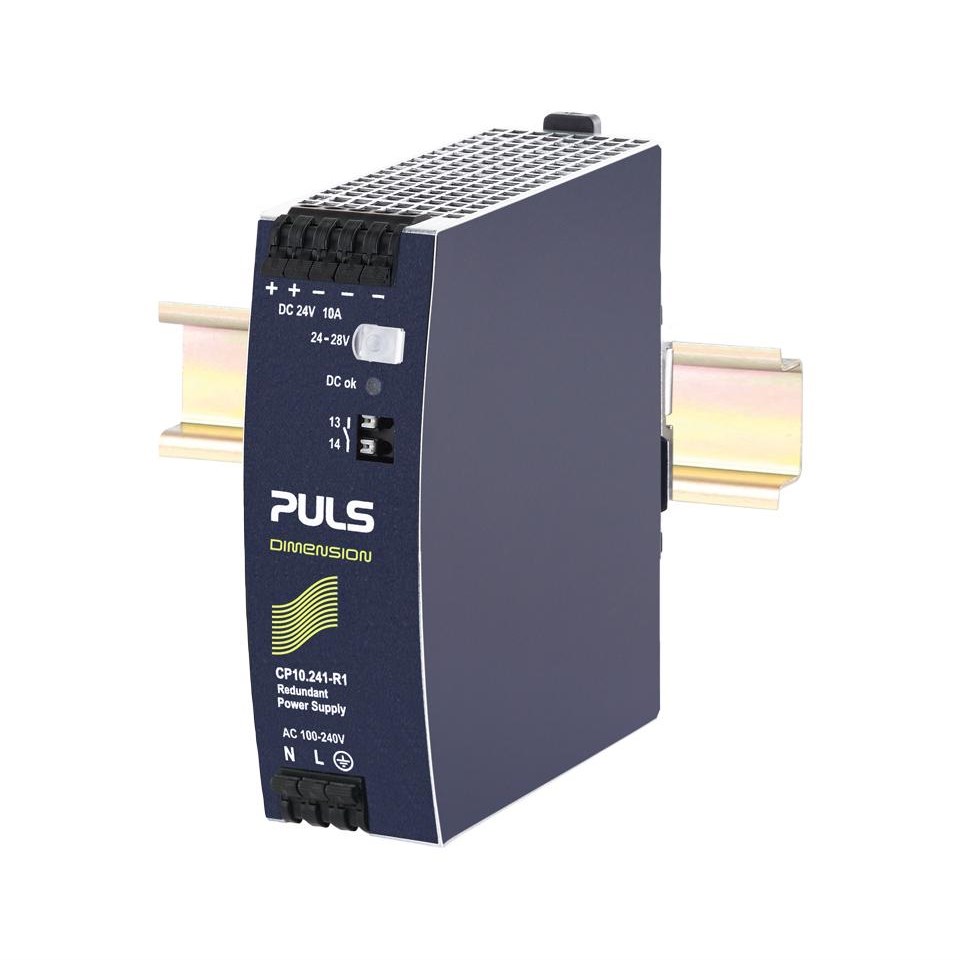

Puls CP10.241-R1 Power Supply 110-150VDC 10A 240 Watt 13.4 Watt DIN Rail Mount Spring Clamp IP20

Product Code: CP10.241-R1

  • Rated current of 10 A for reliable performance
  • Compact dimensions: 39 mm W x 124 mm H x 117 mm D
  • Meets multiple global safety standards and approvals
  • Efficient operation with a 94.7% efficiency rating
  • DIN rail mounting for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension CP

Electrical

Input Voltage
100-240 V AC / 110-150 V DC
Output Current - Nominal
10A
Output Power
240W
Output Voltage - Nominal
24V DC
Output Voltage - Range
23.8V to 25.2V
Efficiency
93 / 94.7% at 120 / 230 Vac
Terminal Type
Quick-connect spring-clamp terminals

Mechanical

Housing Material
Body: Aluminium alloy Cover: zinc-plated steel

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.6kg
Width
39mm

Environmental

Operating Temperature
-25°C to 70°C
