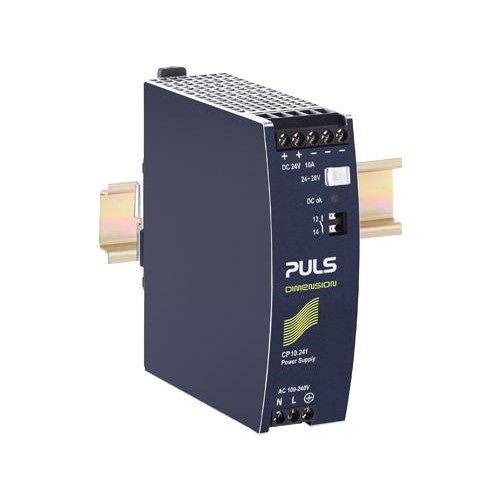

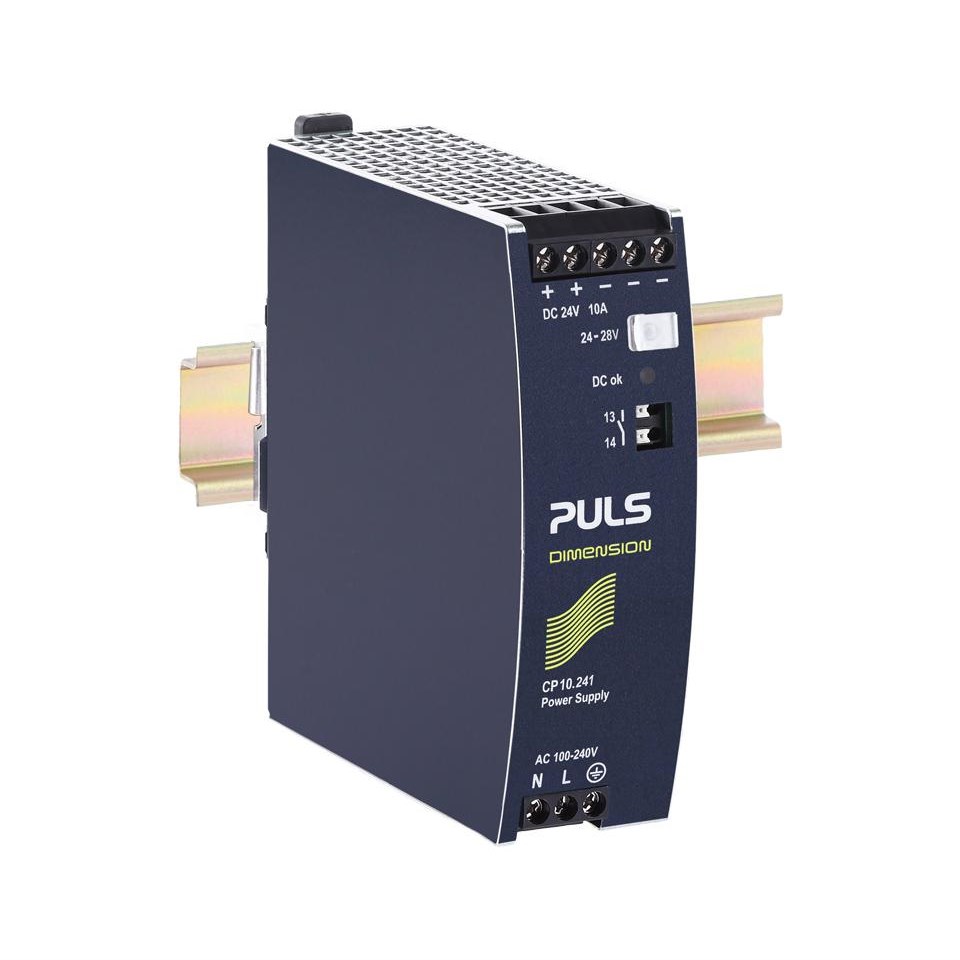

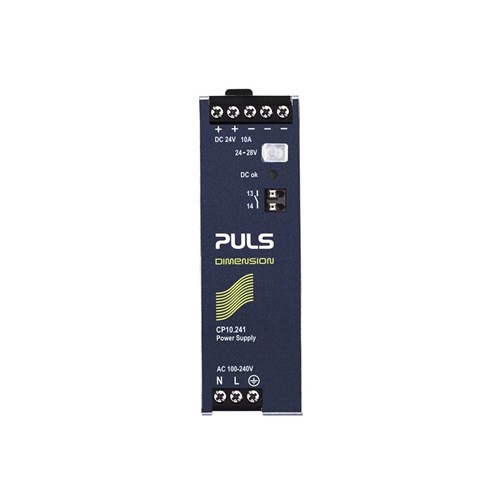

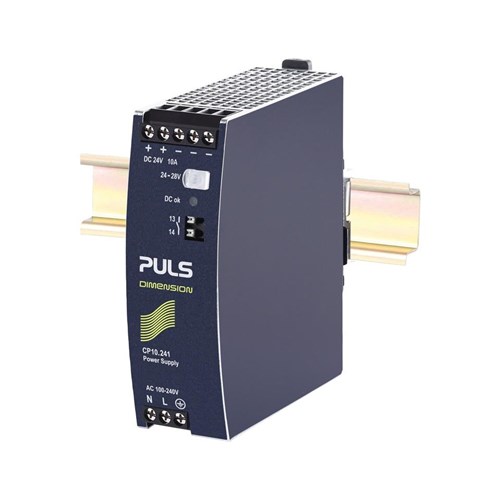

Puls CP10.241 Power Supply 1PH 110-150VDC 24VDC 10A 240 Watt 12.1 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CP10.241

  • Compact size: 39mm width, 124mm height
  • High efficiency at 95.2%
  • Rated power of 240W with active inrush limit
  • Wide-range input for flexibility
  • IP20 protection, DIN rail mountable
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
CP-Series

Electrical

Input Voltage
100-240V AC / 110-150V DC
Output Current - Nominal
10A
Output Current - Range
10A to 8.6A
Output Power
240W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
93.6 / 95.2%
Terminal Type
screw

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.6kg
Width
39mm

Environmental

Approvals / Conformity
UL 508, IEC 61010-2-201, IEC 60950-1, UL 60950-1, ATEX, IECEx, Class 1 Div 2, Marine (DNV), Marine (ABS), IEC 61558-2-16, SEMI F47, IEC 60068--60, ISA-71.04 G32, Labs, CE, REACH, WEEE, KC, CCC
Operating Temperature
-25°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
