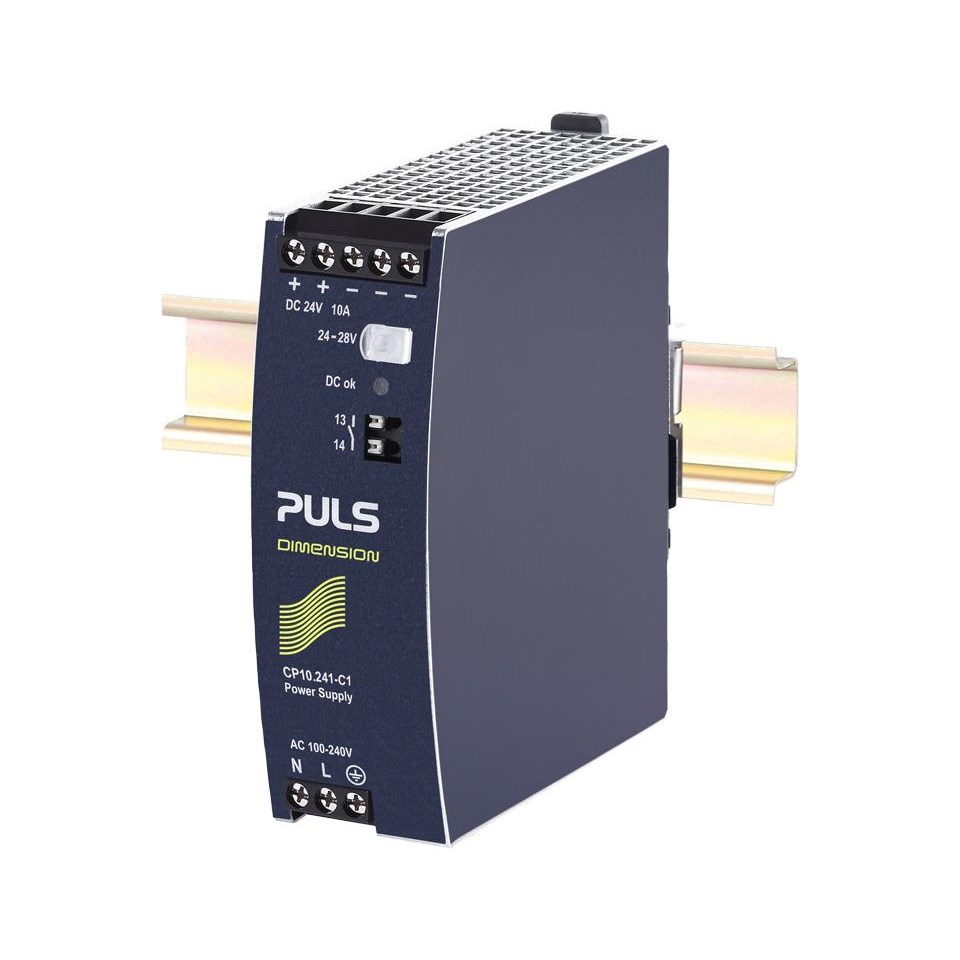

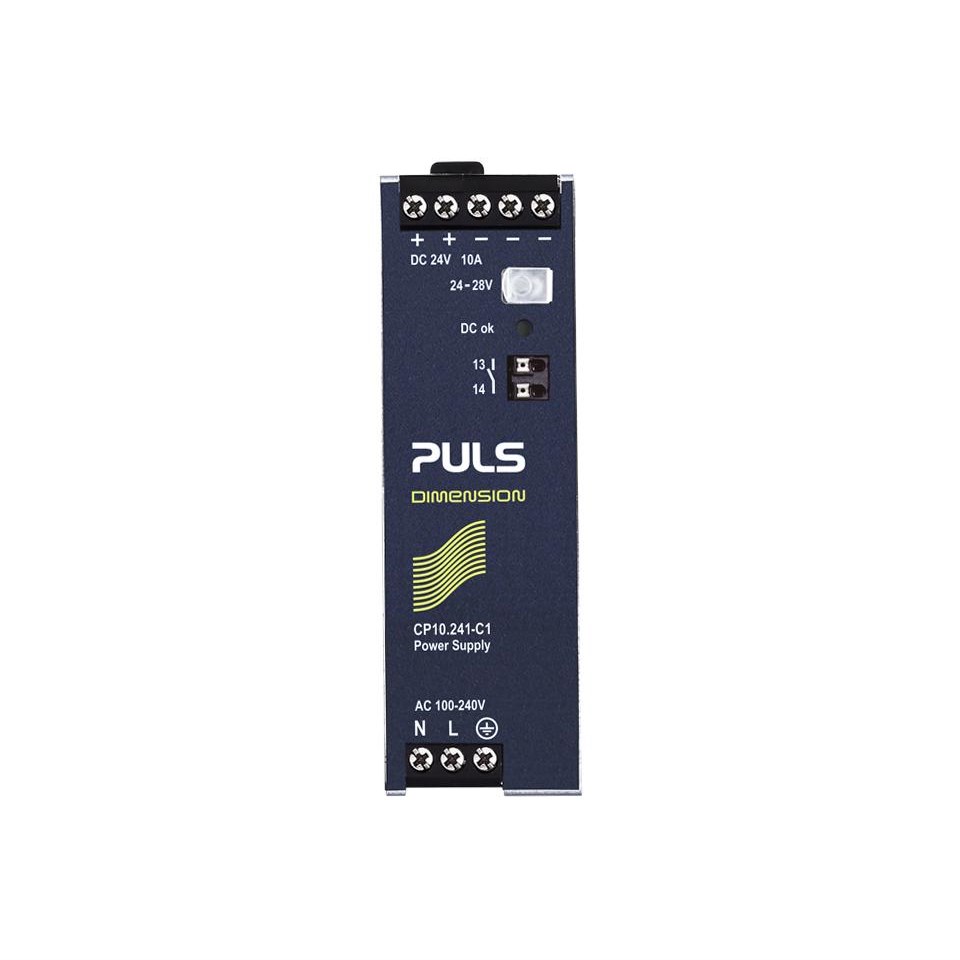

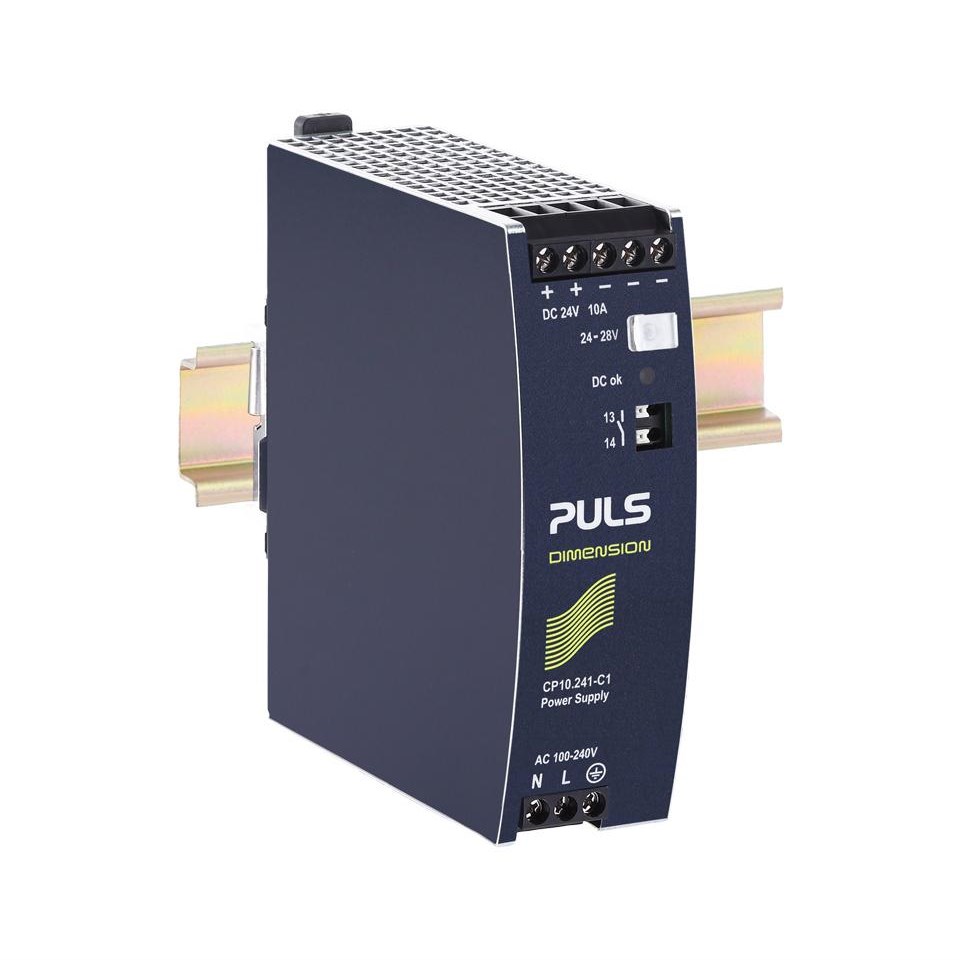

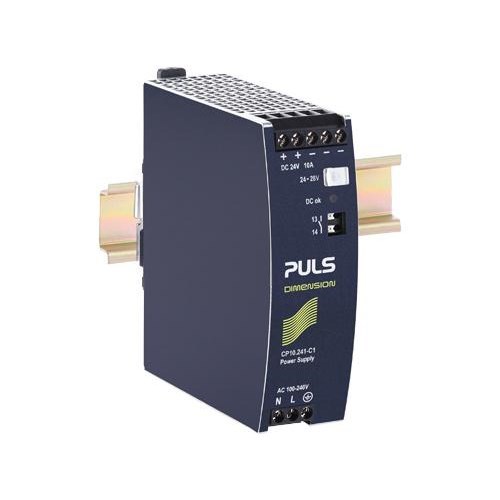

Puls CP10.241-C1 Power Supply 1PH 110-150VDC 10A 240 Watt 12.1 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CP10.241-C1

  • 95.2% efficiency for optimal performance
  • Wide-range input from 110-150 VDC
  • DIN Rail mounting for easy installation
  • Active harmonic correction ensures stability
  • IP20 protection against solid objects
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension C

Electrical

Input Voltage
100 - 240 V AC (-15 %/+10 %) / 110 V - 150 V DC (± 20 %)
Output Current - Nominal
8.6A at 28V 10A at 24V
Output Current - Range
10A to 8.6A
Output Power
240W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
0.952
Terminal Type
Screw Terminals

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.6kg
Width
39mm

Environmental

Operating Temperature
-25°C to 70°C
Conformal Coated
Yes
