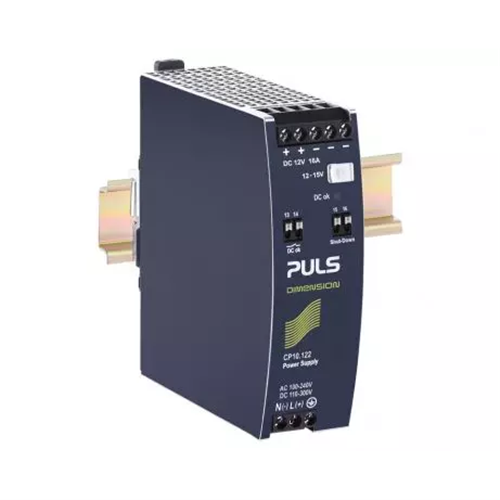

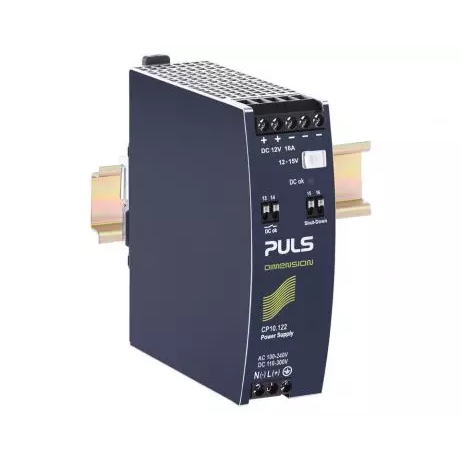

Puls CP10.122 Power Supply 100-240VAC 12-15VDC 9A 192 Watt 11.6 Watt DIN Rail Mount Screw Terminal

Product Code: CP10.122

  • High efficiency at 94.3%
  • Compact size: 39x124x117 mm
  • Active harmonic correction
  • Wide voltage range: 100-240 VAC, 12-15 VDC
  • DIN rail mounting for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Power Supply
Brand
Puls
Series
Dimension C

Electrical

Input Voltage
100 - 240 V AC (-15 %/+10 %) / 110 V - 300 V DC (± 20 %)
Output Current - Nominal
12.8A at 15V 16A at 12V
Output Current - Range
16A to 12.8A
Output Power
192W
Output Voltage - Nominal
12V DC
Output Voltage - Range
12V to 15V
Efficiency
94.3% (typical)
Terminal Type
Screw Terminals

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.6kg
Width
39mm

Environmental

Operating Temperature
-25°C to 70°C
