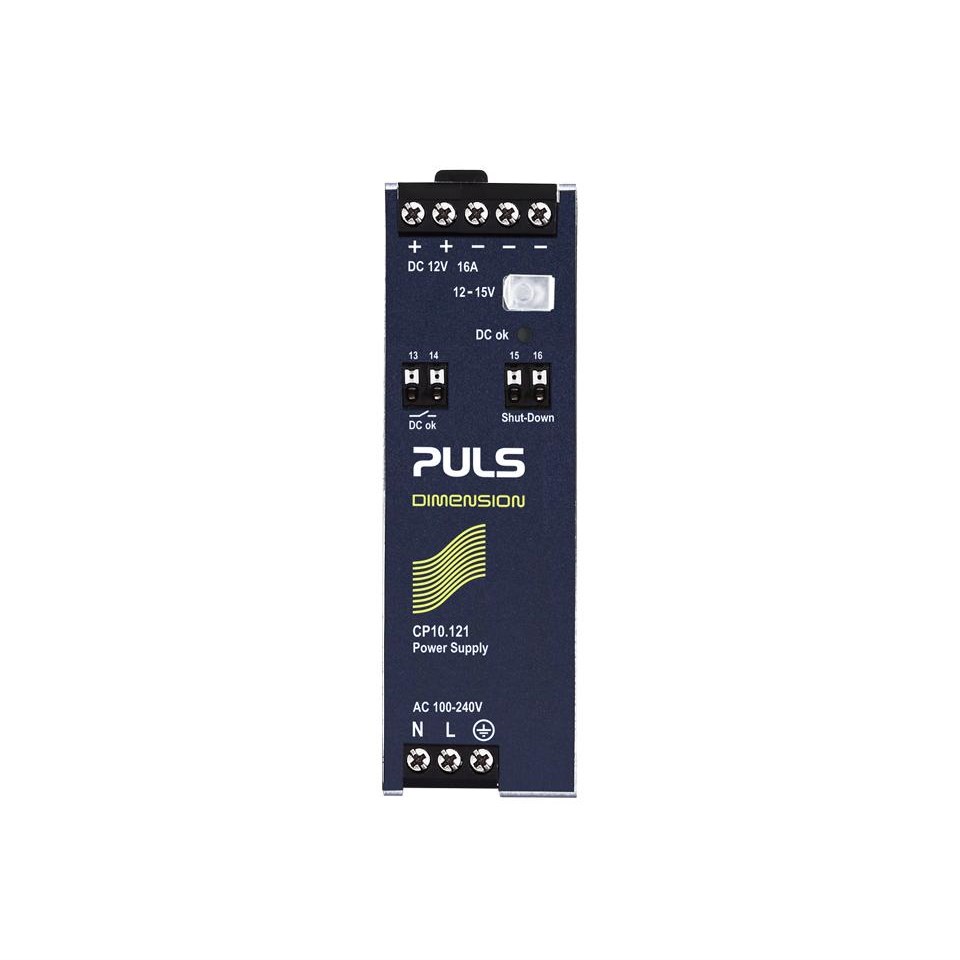

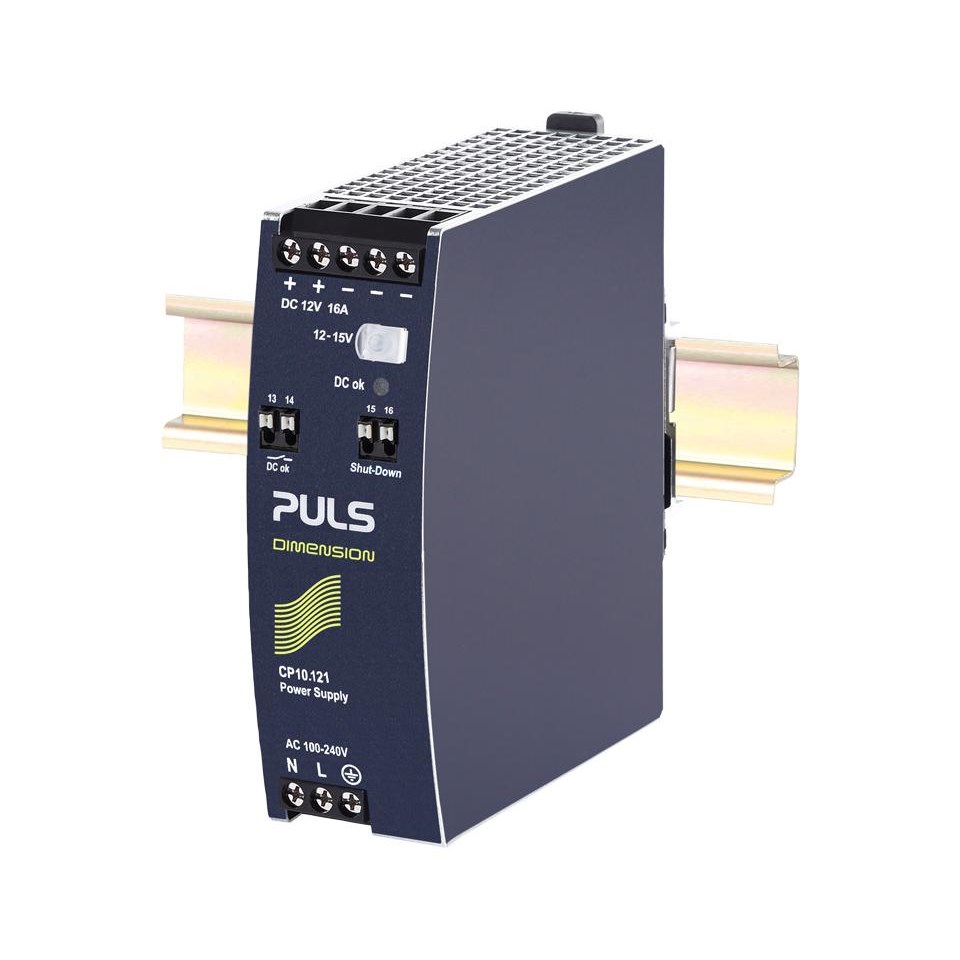

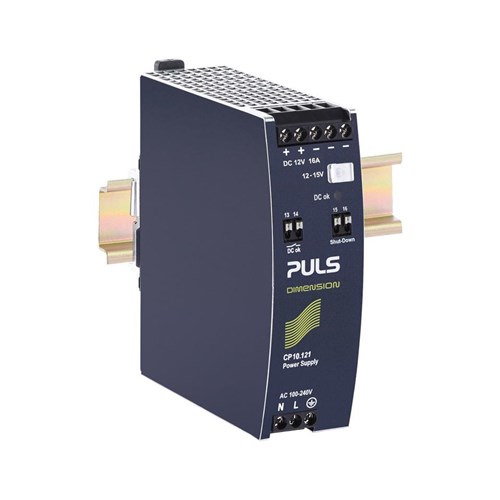

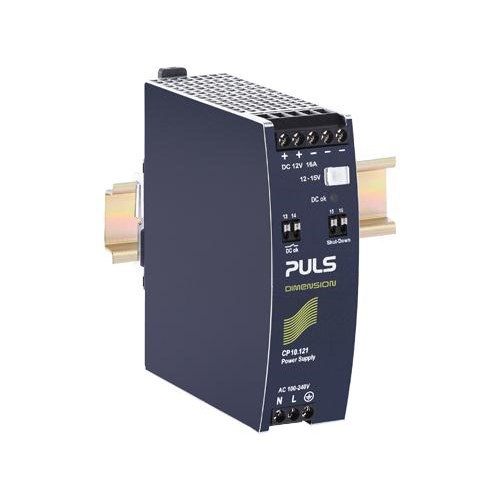

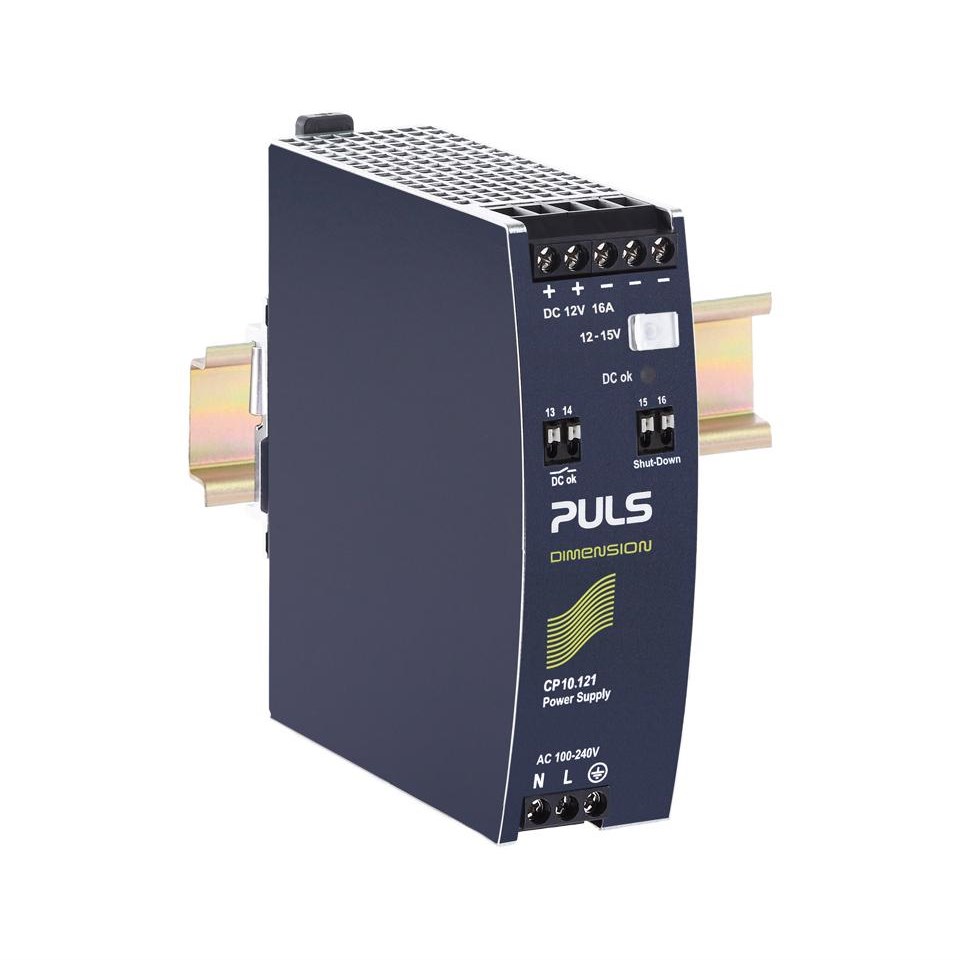

Puls CP10.121 Power Supply 1PH 110-150VDC 12VDC 16A 192 Watt 11.6 Watt DIN Rail Mount Screw Terminal IP20

Product Code: CP10.121

  • Single-phase, 16 A rated current
  • Compact size: 39x124x117 mm
  • Wide voltage range: 110-150 VDC, 12 VDC
  • High efficiency at 94.3%
  • DIN rail mounting with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DIN Rail Power Supplies
Brand
Puls
Series
CP-Series

Electrical

Input Voltage
100-240V AC / 110-150V DC
Output Current - Nominal
16A
Output Current - Range
16A to 12.8A
Output Power
192W
Output Voltage - Nominal
12V DC
Output Voltage - Range
12V to 15V DC
Efficiency
92.8 / 94.3%
Terminal Type
screw

Mechanical

Housing Material
Body: Aluminium alloy Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.6kg
Width
39mm

Environmental

Approvals / Conformity
UL 508, IEC 61010-2-201, IEC 60950-1, UL 60950-1, ATEX, IECEx, Class I Div 2, Marine (DNV), Marine (ABS), IEC 60068-2-60, ISA-71.04 G3, Labs, CE, WEEE, REACH, UKCA, CCC, KC
Operating Temperature
-25°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
