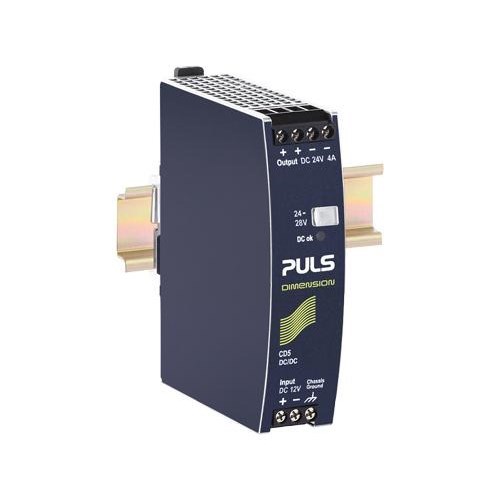

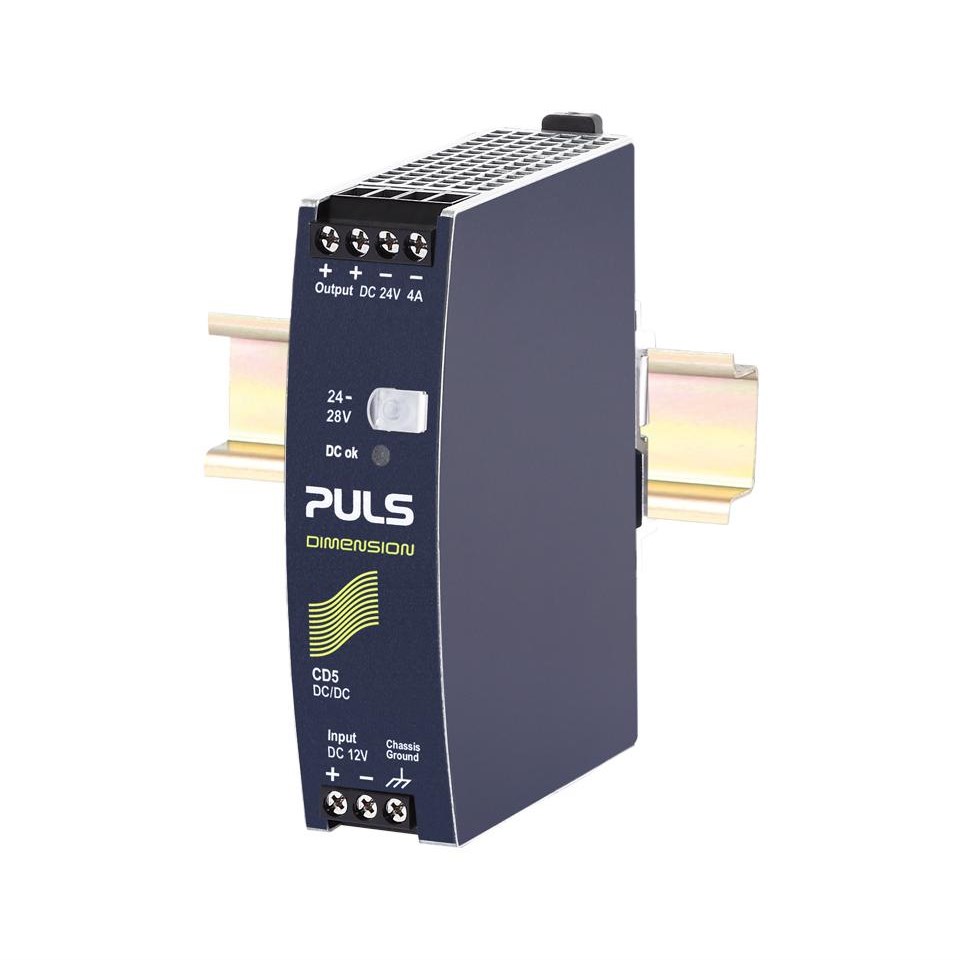

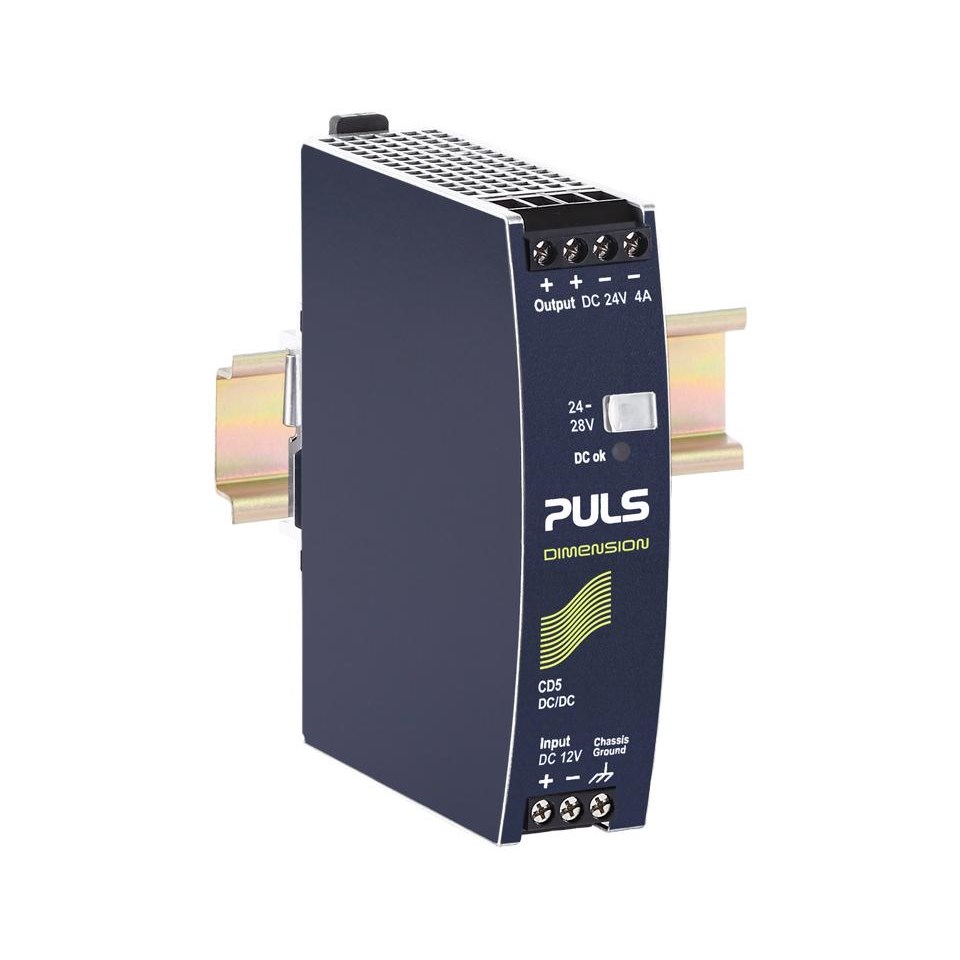

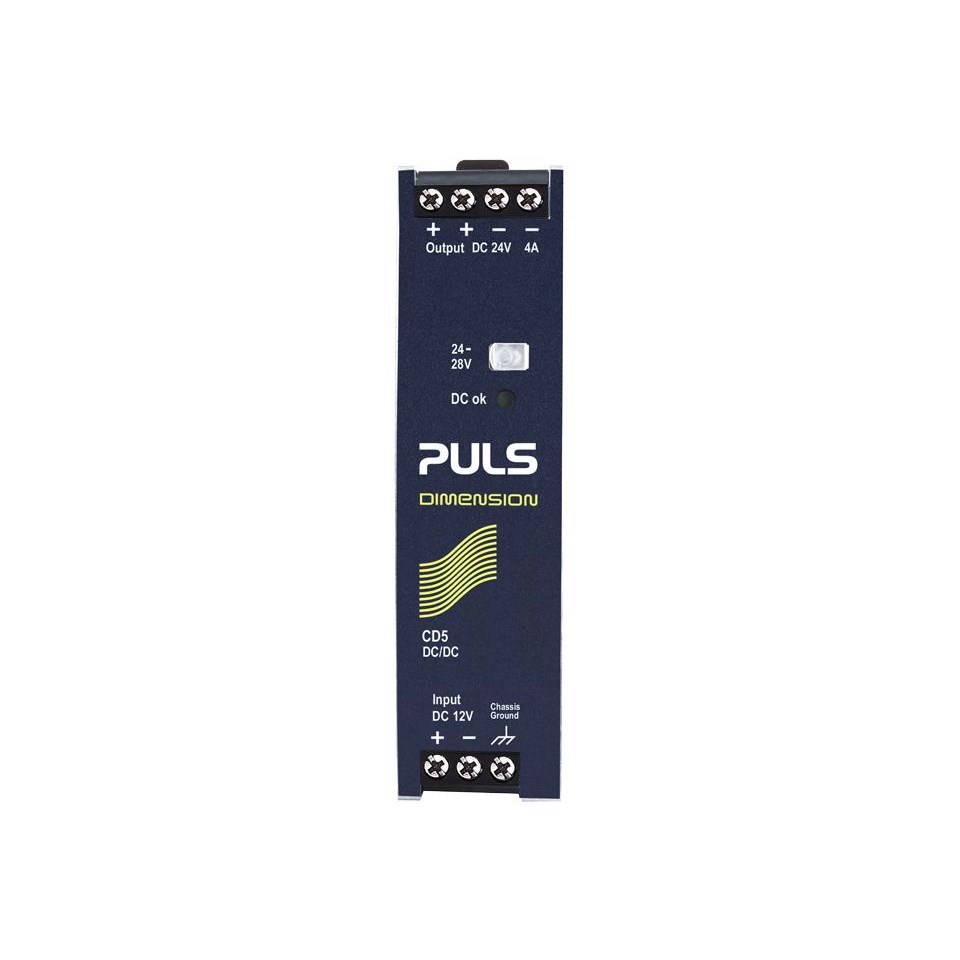

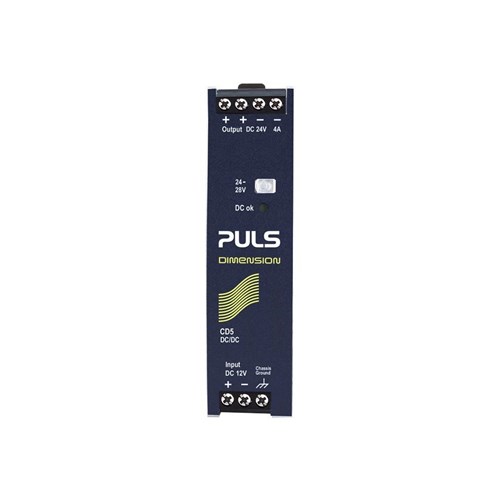

Puls CD5.243 DC/DC Converter 12VDC 4A 96 Watt

Product Code: CD5.243

  • Compact size: 32mm W x 124mm H x 102mm D
  • High efficiency at 87.7%
  • Rated power of 96W with 20% reserve
  • DIN Rail mounting for easy installation
  • Wide temp range: -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC/DC Converter
Brand
Puls
Series
CD

Electrical

Input Voltage
DC 12V (-30 %/+35 %)
Output Current - Nominal
4A at 24V DC
Output Current - Range
4A to 3.4A
Output Power
96W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
87.7% (typical)
Terminal Type
Screw terminals

Mechanical

Diagnostic Functions
DC-OK LED

Dimensions & Physical Data

Depth
102mm
Height
124mm
Weight
0.435kg
Width
32mm

Environmental

Approvals / Conformity
UL 508, UL 60950-1, Class I Div 2, ATEX, IECEx, Marine
Operating Temperature
-25°C to 70°C
IP Rating
IP20

Documents

IPD Product Catalogue V17
