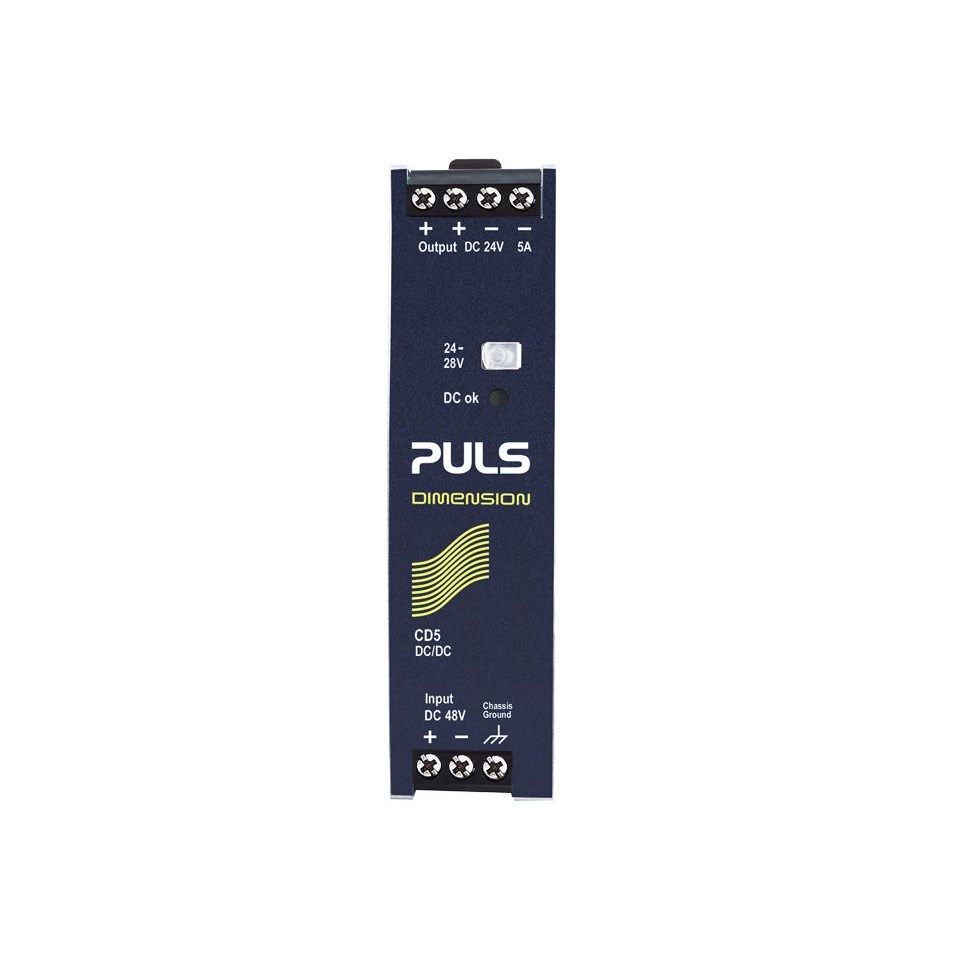

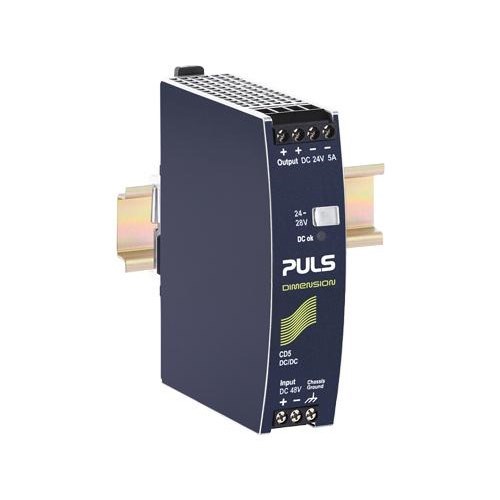

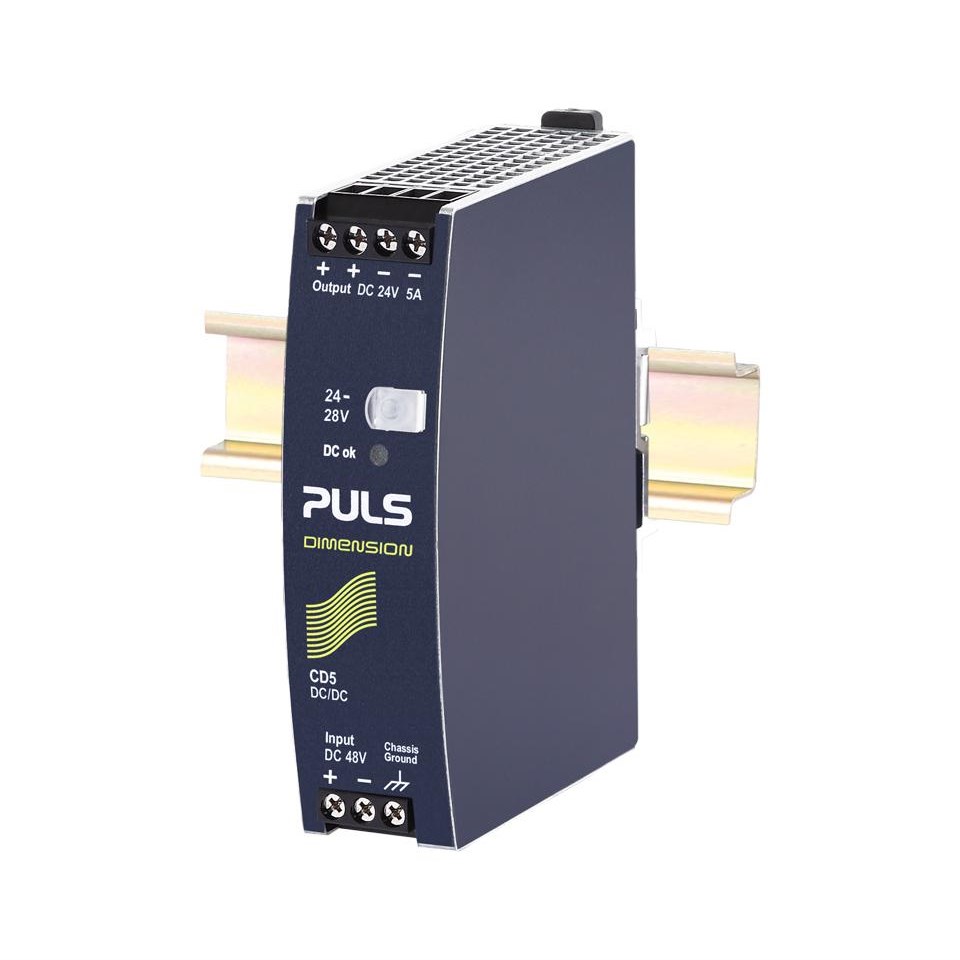

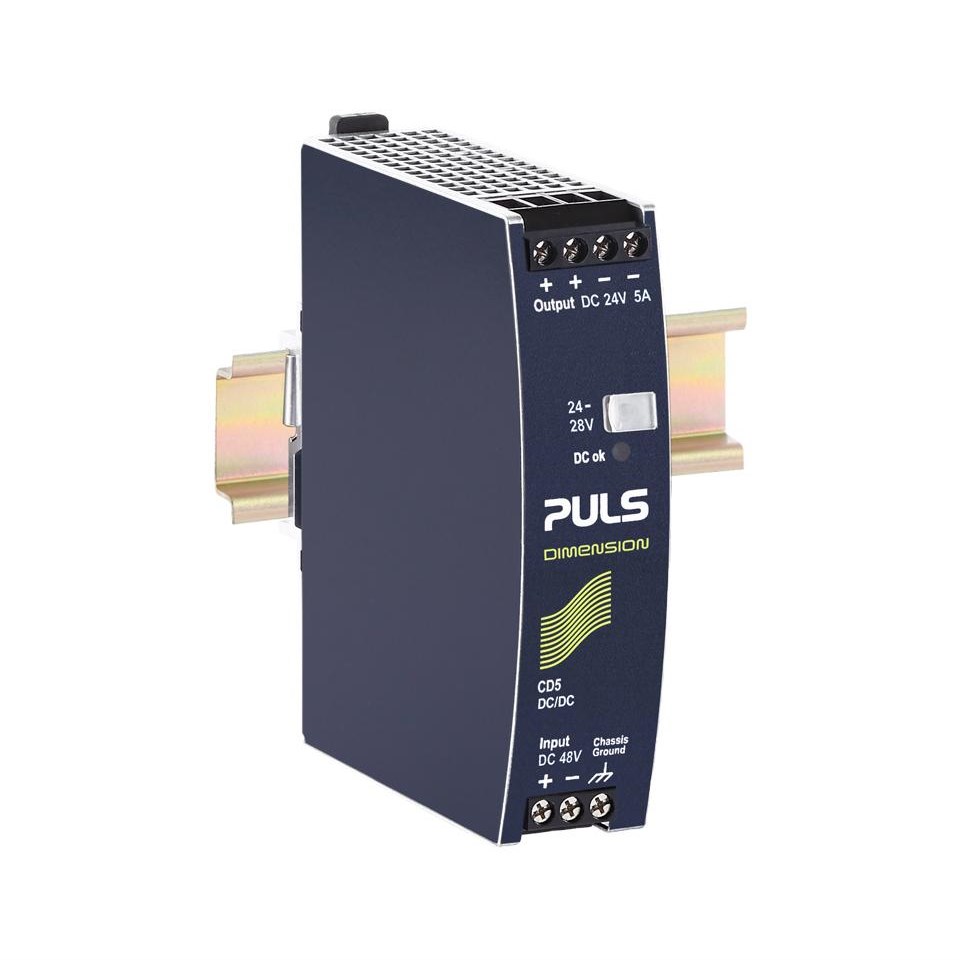

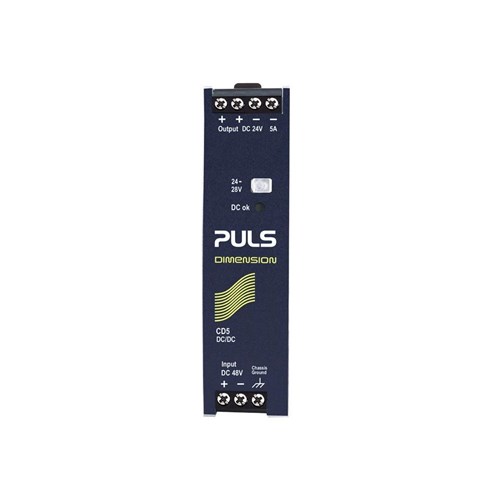

Puls CD5.242 DC/DC Converter 48VDC 5A 120 Watt

Product Code: CD5.242

  • Compact size: 32mm width, 124mm height
  • High efficiency at 90.3%
  • Supports -25 to 70°C operation
  • ATEX EN 60079 certified for safety
  • DIN rail mounting with IP20 protection
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC/DC Converter
Brand
Puls
Series
CD

Electrical

Input Voltage
48 V DC (± 25 %)
Output Current - Nominal
4.3A at 28V
Output Current - Range
5A to 4.3A
Output Power
120W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
90.3% (typical)
Terminal Type
Screw terminals

Dimensions & Physical Data

Depth
102mm
Height
124mm
Weight
0.425kg
Width
32mm

Environmental

Approvals / Conformity
CE, Exemption Letter, IEC 61010-2-201 CB, UL 61010-2-201 CAN/USA, IEC 60950 RoHS, REACH CMRT/ EMRT RoHS, REACH CMRT/ EMRT
Operating Temperature
-25°C to 70°C
