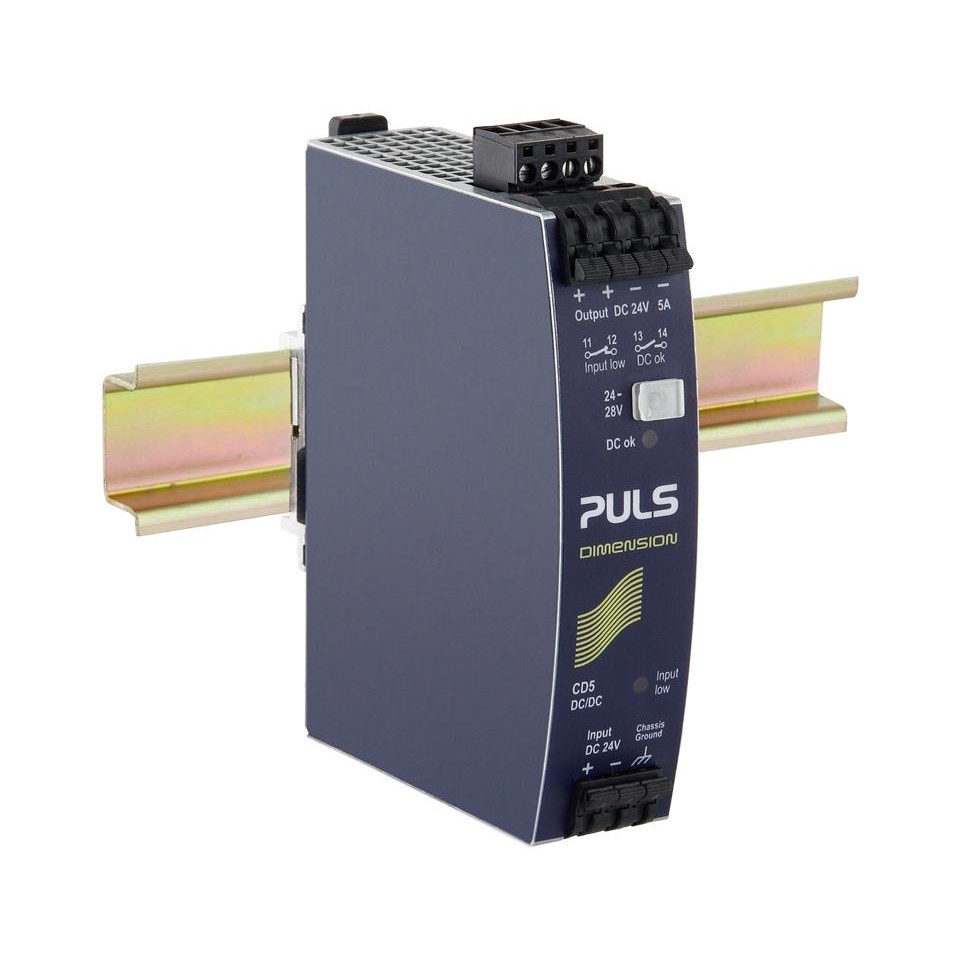

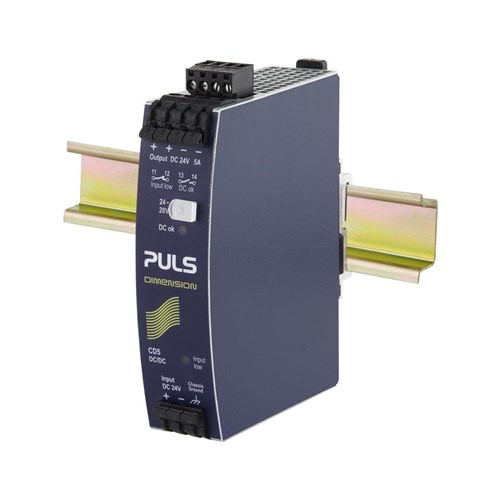

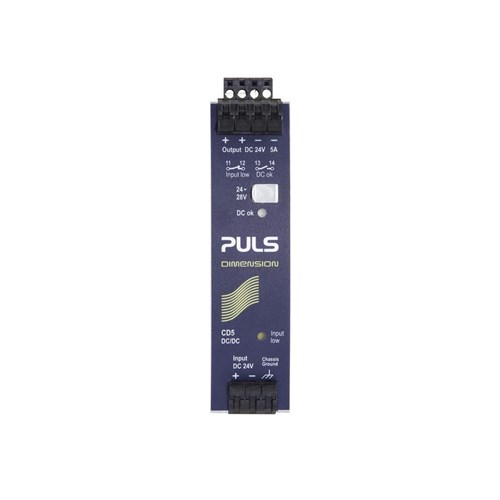

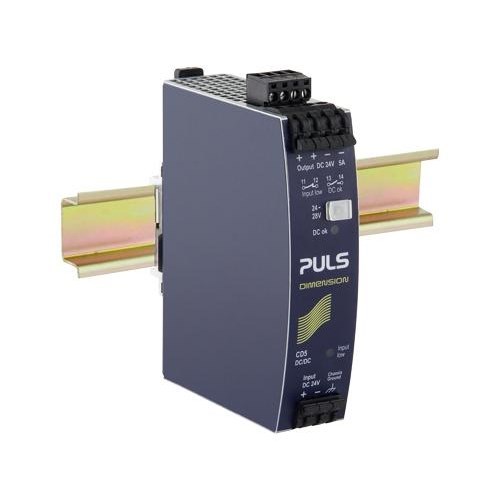

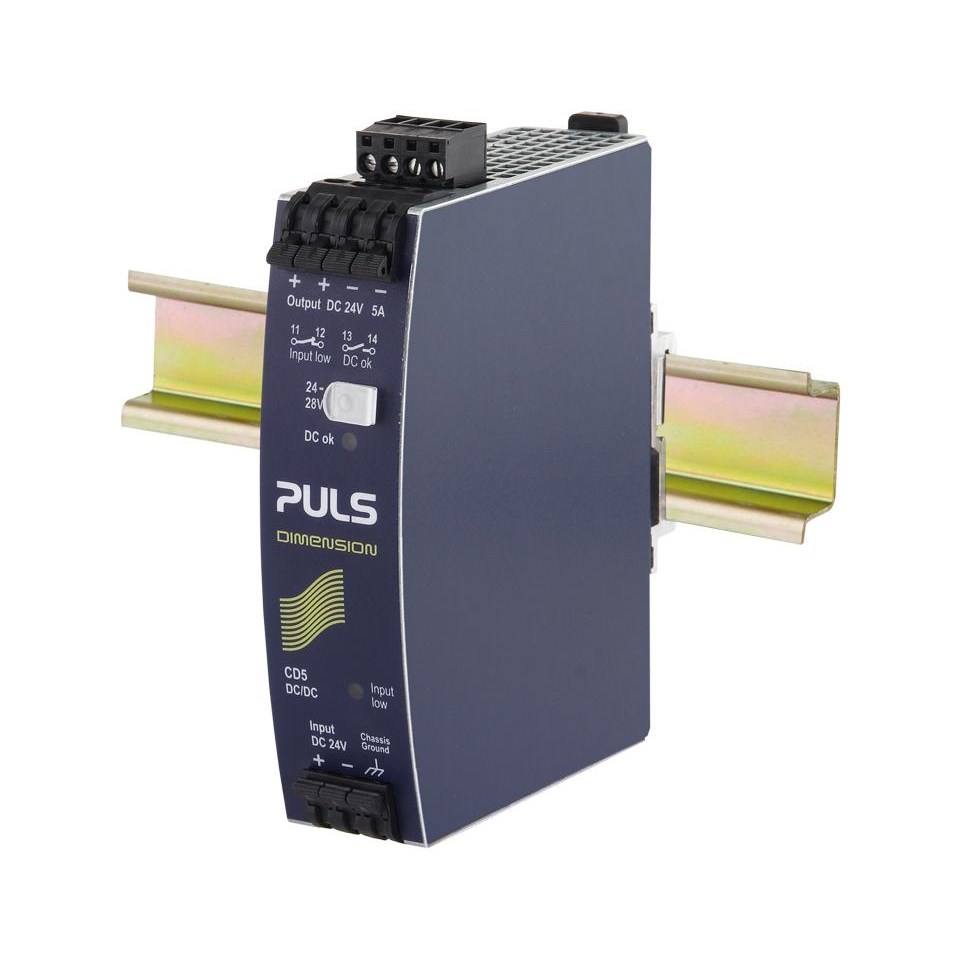

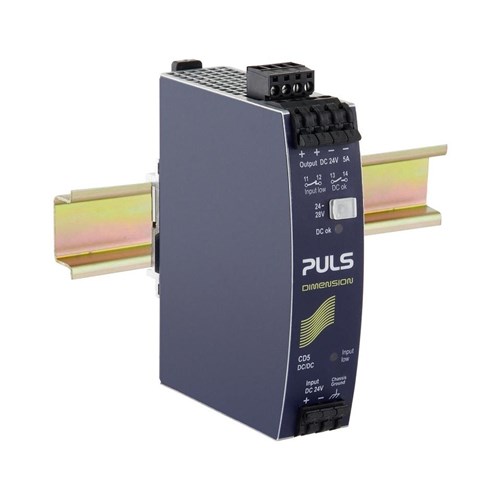

Puls CD5.241-S1 DC/DC Converter 24VDC 5A 120 Watt

Product Code: CD5.241-S1

  • Compact design: 32 mm width, 124 mm height
  • High efficiency at 90.2%
  • Rated power of 120 W with 5 A current
  • Wide temp range: -25 to 70°C
  • DIN Rail mounting for easy installation
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC/DC Converter
Brand
Puls
Series
CD

Electrical

Input Voltage
24 V DC (-25 %/+35 %)
Output Current - Nominal
4.3A at 28V
Output Current - Range
5A to 4.3A
Output Power
120W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
0.902
Terminal Type
Spring clamps

Dimensions & Physical Data

Depth
102mm
Height
32mm
Weight
0.45kg
Width
124mm

Environmental

Approvals / Conformity
CE, Exemption Letter, IEC 61010-2-201 CB, UL 61010-2-201 CAN/USA, IEC 60950 RoHS, REACH CMRT/ EMRT RoHS, REACH CMRT/ EMRT
Operating Temperature
-25°C to 70°C
