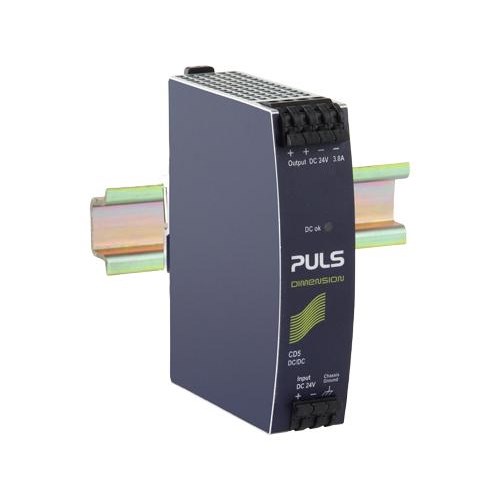

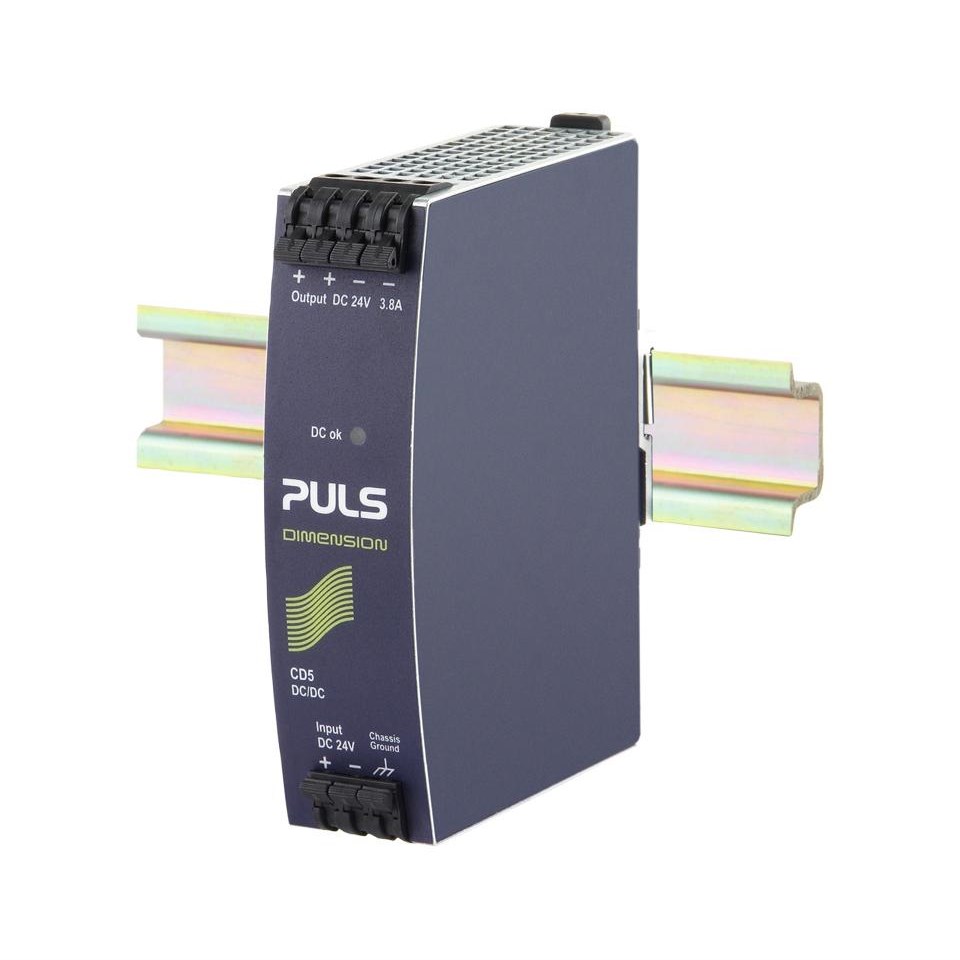

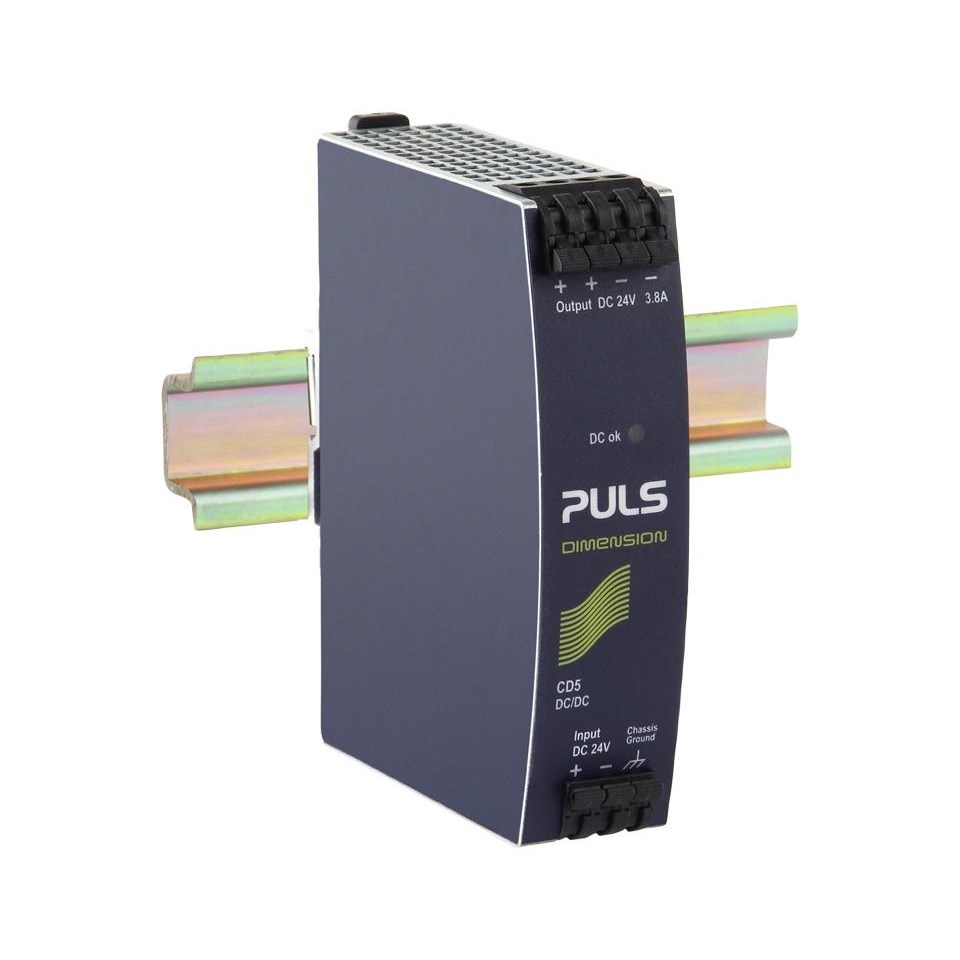

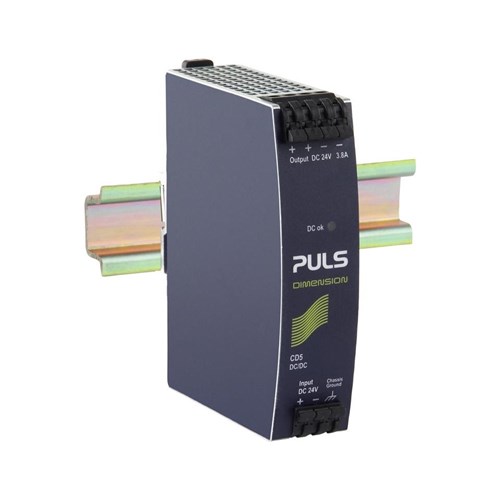

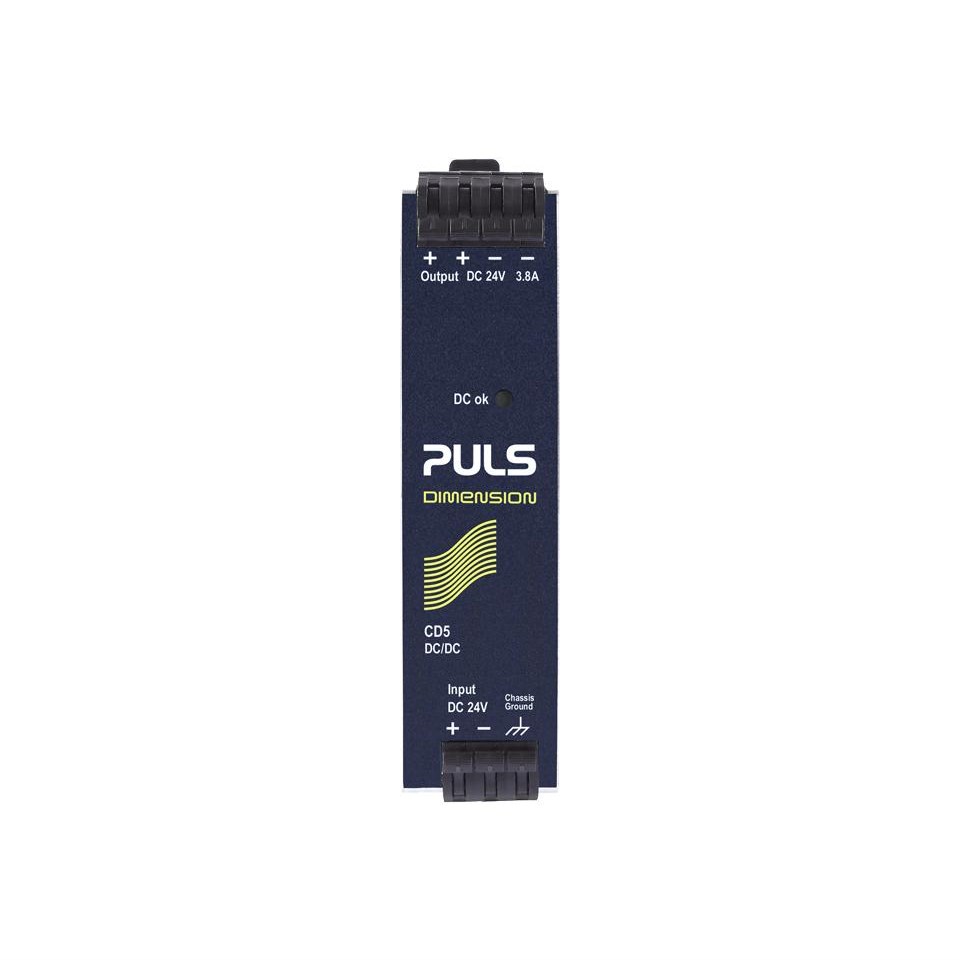

Puls CD5.241-L1 DC/DC Converter 24VDC 3.8A 92 Watt

Product Code: CD5.241-L1

  • High efficiency at 90.5%
  • Compact size: 32x124x102 mm
  • Rated for 24 VDC, 3.8 A
  • Spring clamp connections
  • DIN rail mounting
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC/DC Converter
Brand
Puls
Series
CD

Electrical

Input Voltage
24 V DC (-40 %/+35 %)
Output Current - Nominal
3.8A at 24V
Output Current - Range
3.8A
Output Power
92W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V
Efficiency
0.905
Terminal Type
Spring clamps

Dimensions & Physical Data

Depth
102mm
Height
32mm
Weight
0.425kg
Width
124mm

Environmental

Approvals / Conformity
CE, Exemption Letter, IEC 61010-2-201 CB, UL 61010-2-201 CAN/USA, IEC 60950 RoHS, REACH CMRT/ EMRT RoHS, REACH CMRT/ EMRT
Operating Temperature
-25°C to 70°C
