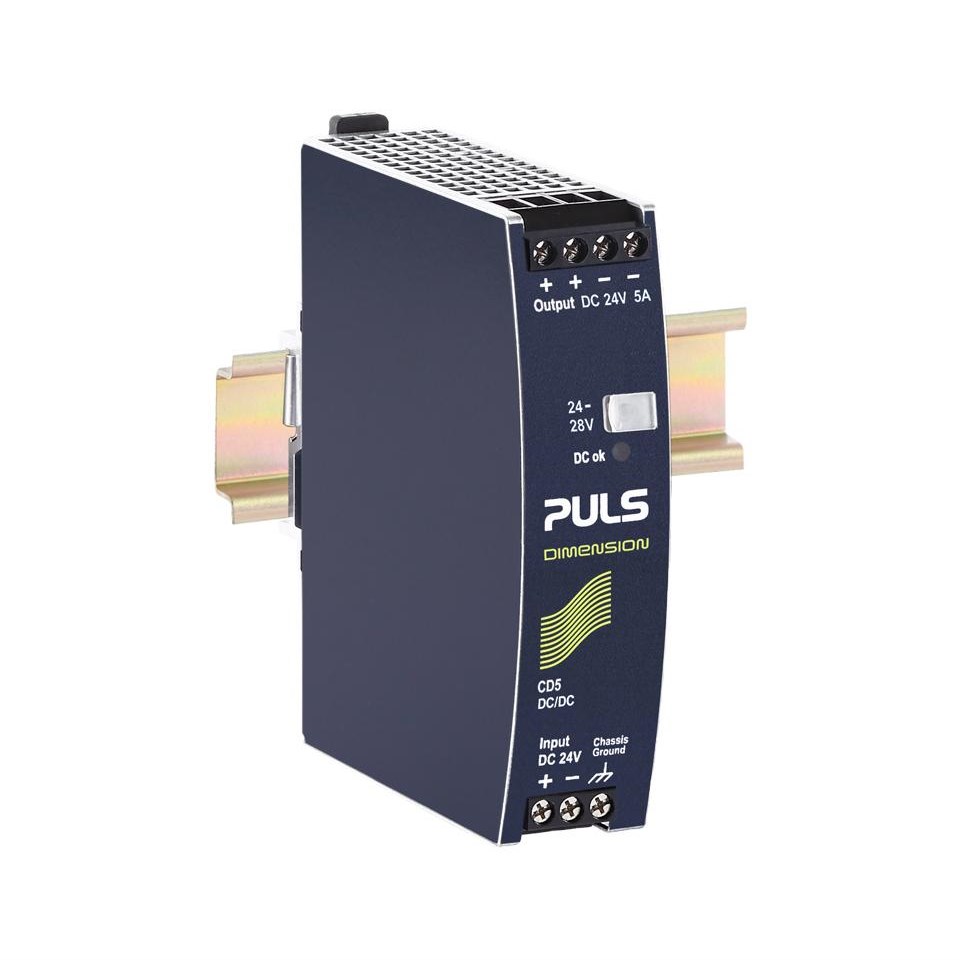

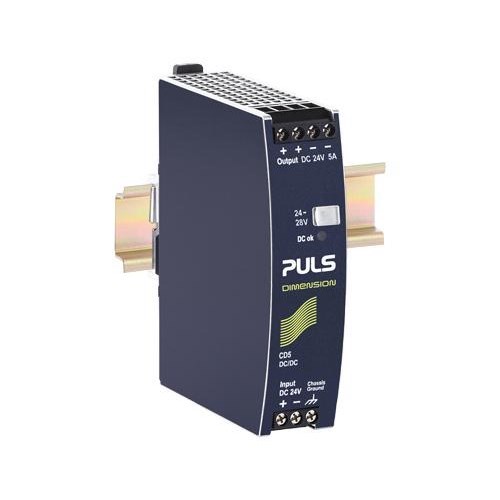

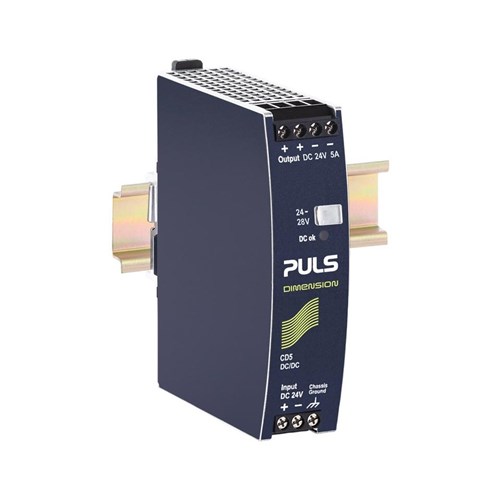

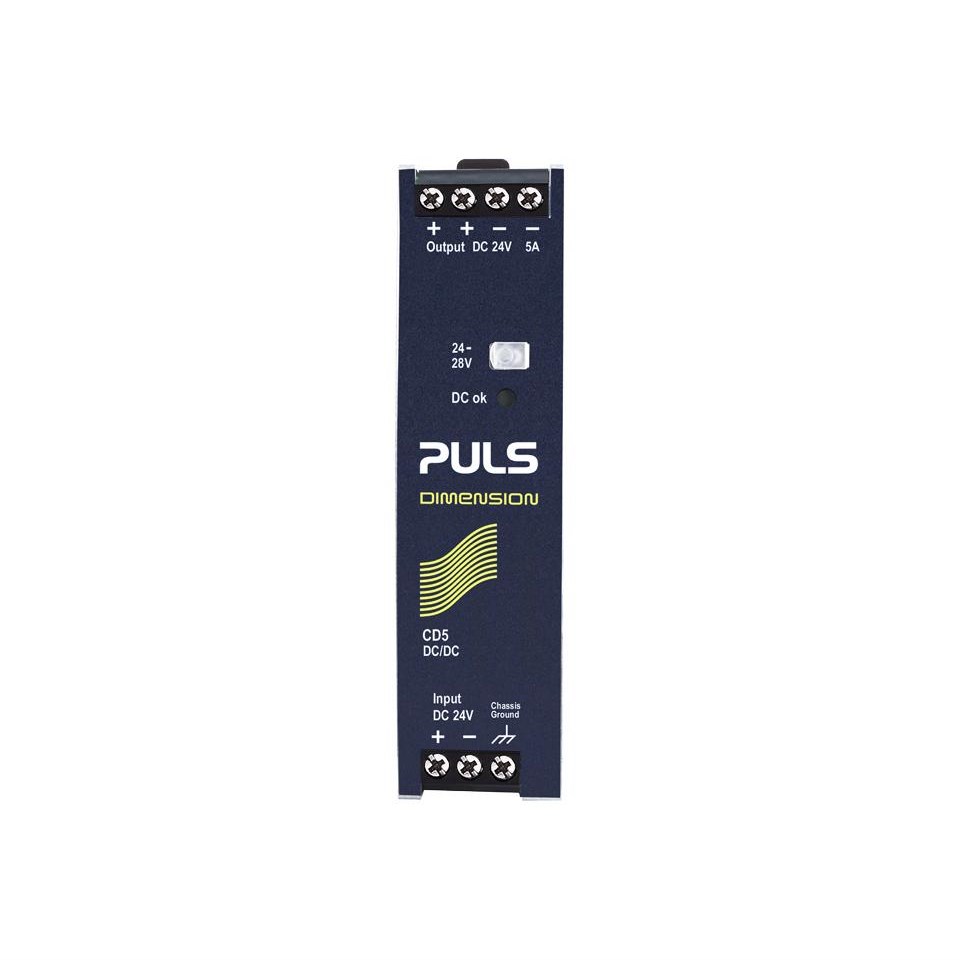

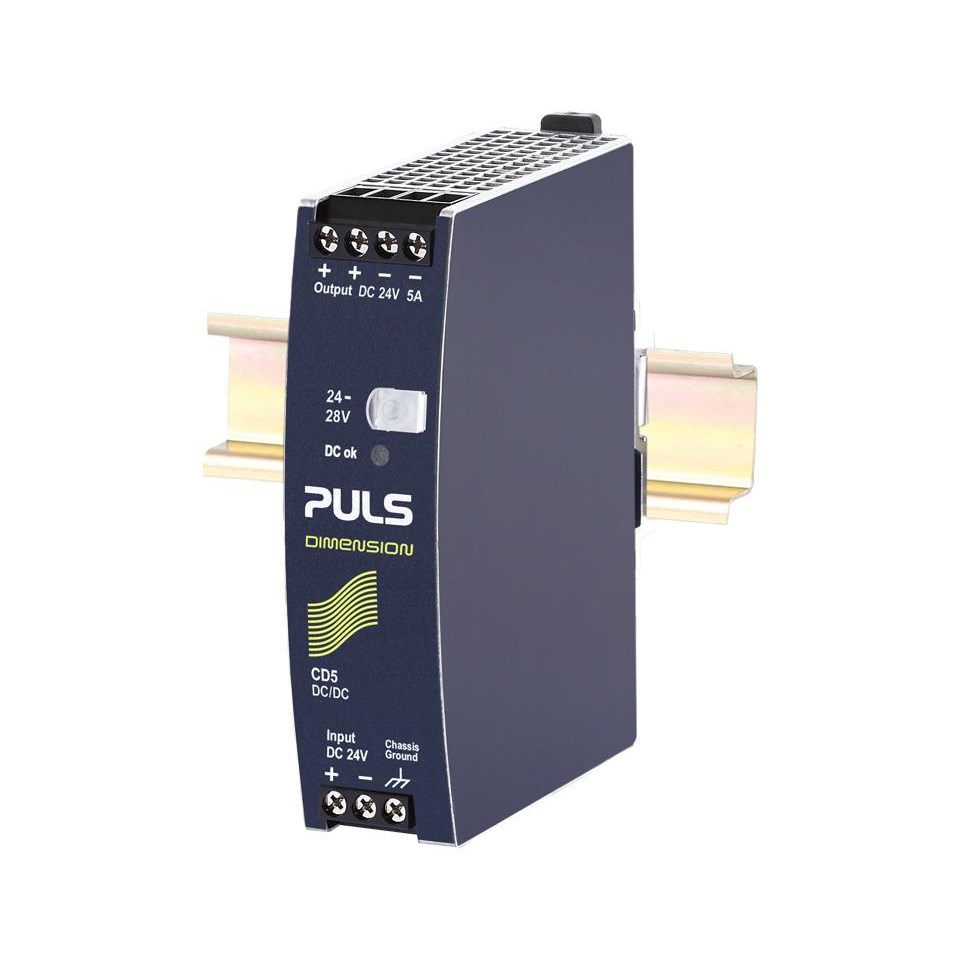

Puls CD5.241 DC/DC Converter 24VDC 5A 120 Watt

Product Code: CD5.241

  • 5A, 24VDC output with 120W power capacity
  • High efficiency at 90.3%
  • Compact size: 32mm W x 124mm H x 102mm D
  • DIN rail mounting with IP20 protection
  • Certified for multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC/DC Converter
Brand
Puls
Series
CD

Electrical

Input Voltage
DC 24V (-25 %/+35 %)
Output Current - Nominal
5A at 24V DC
Output Current - Range
5A to 4.3A
Output Power
120W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
90.3% (typical)
Terminal Type
Screw terminals

Mechanical

Diagnostic Functions
DC-OK LED

Dimensions & Physical Data

Depth
102mm
Height
124mm
Weight
0.425kg
Width
32mm

Environmental

Approvals / Conformity
UL 508, UL 60950-1, Class I Div 2, ATEX, IECEx, Marine
Operating Temperature
-25°C to 70°C
IP Rating
IP20
