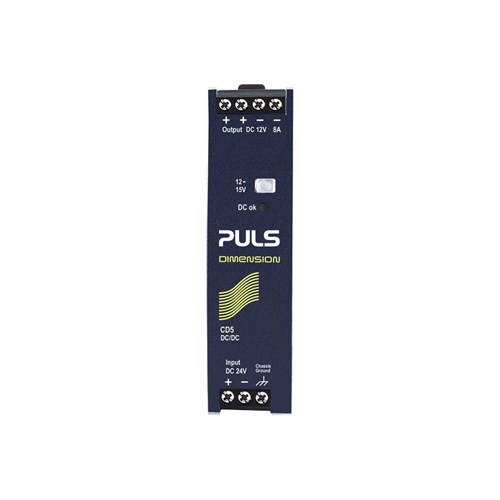

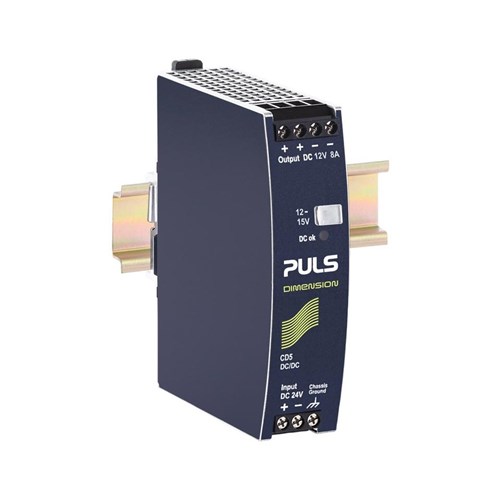

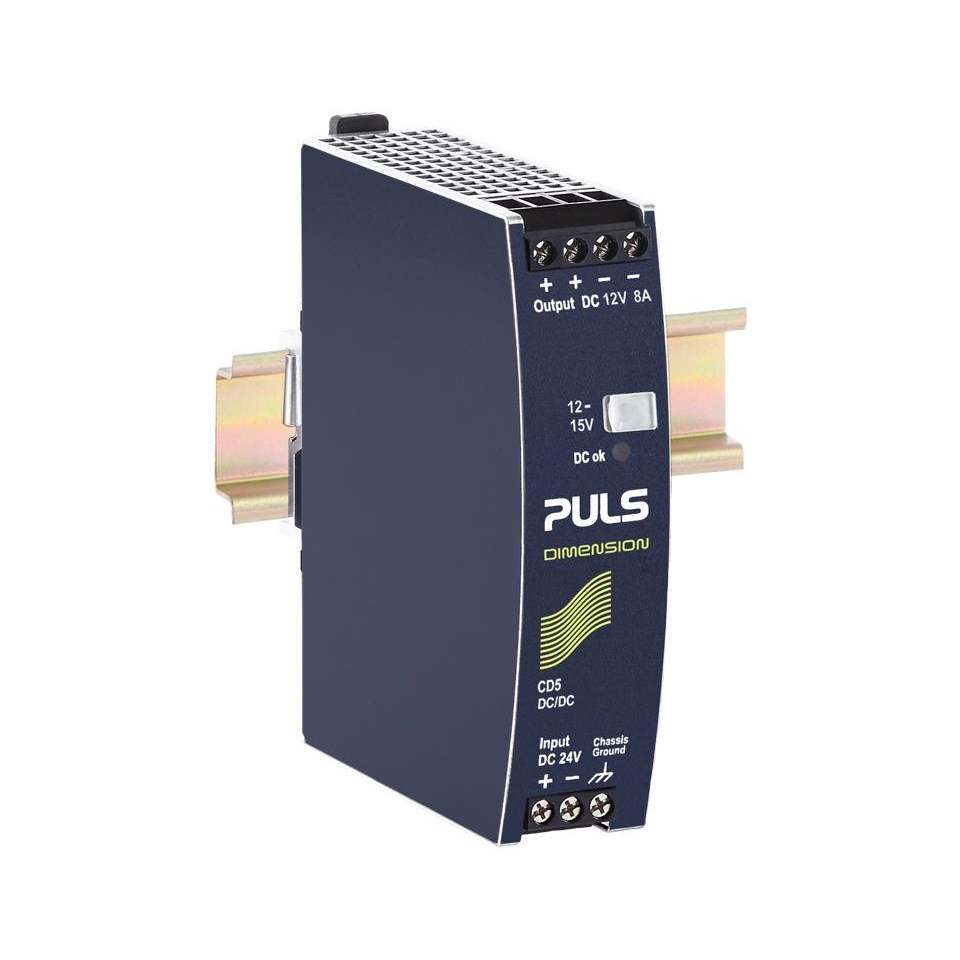

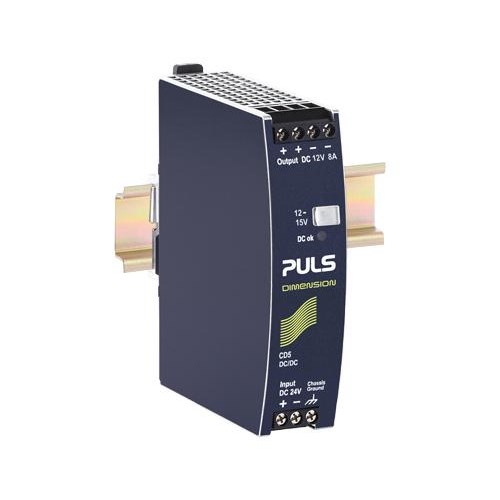

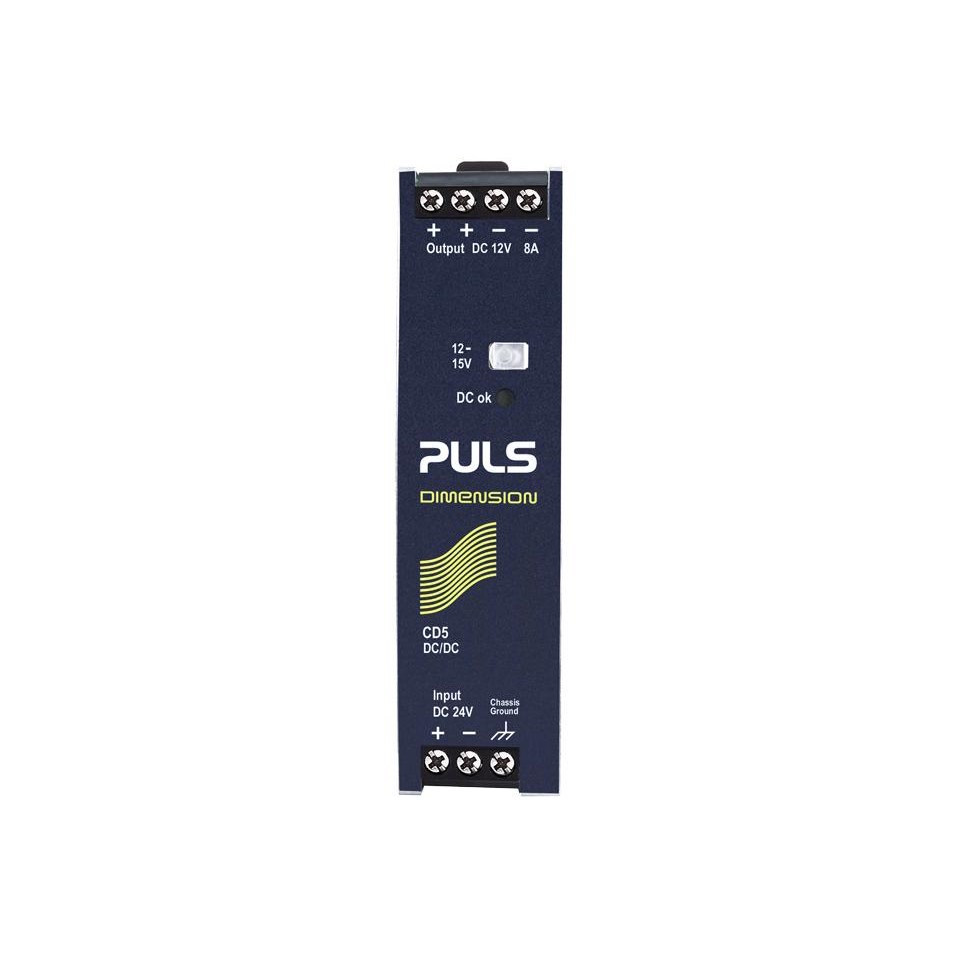

Puls CD5.121 DC/DC Converter 24VDC 8A 96 Watt

Product Code: CD5.121

  • Compact size: 32mm width, ideal for tight spaces
  • High efficiency at 88.2%
  • Rated power of 96W with 20% power reserve
  • Wide operational temp range: -25 to 70°C
  • Certified for multiple international standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC/DC Converter
Brand
Puls
Series
CD

Electrical

Input Voltage
DC 24V (-25 %/+35 %)
Output Current - Nominal
8A at 12V DC
Output Current - Range
8A to 6.4A
Output Power
96W
Output Voltage - Nominal
12V DC
Output Voltage - Range
12V to 15V
Efficiency
88.2% (typical)
Terminal Type
Screw terminals

Mechanical

Diagnostic Functions
DC-OK LED

Dimensions & Physical Data

Depth
102mm
Height
124mm
Weight
0.425kg
Width
32mm

Environmental

Approvals / Conformity
UL 508, UL 60950-1, Class I Div 2, ATEX, IECEx, Marine
Operating Temperature
-25°C to 70°C
IP Rating
IP20
