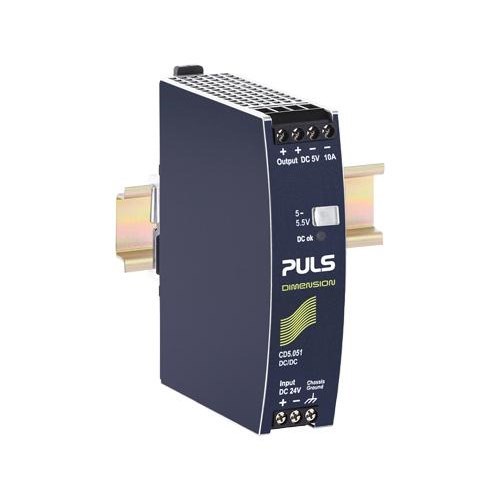

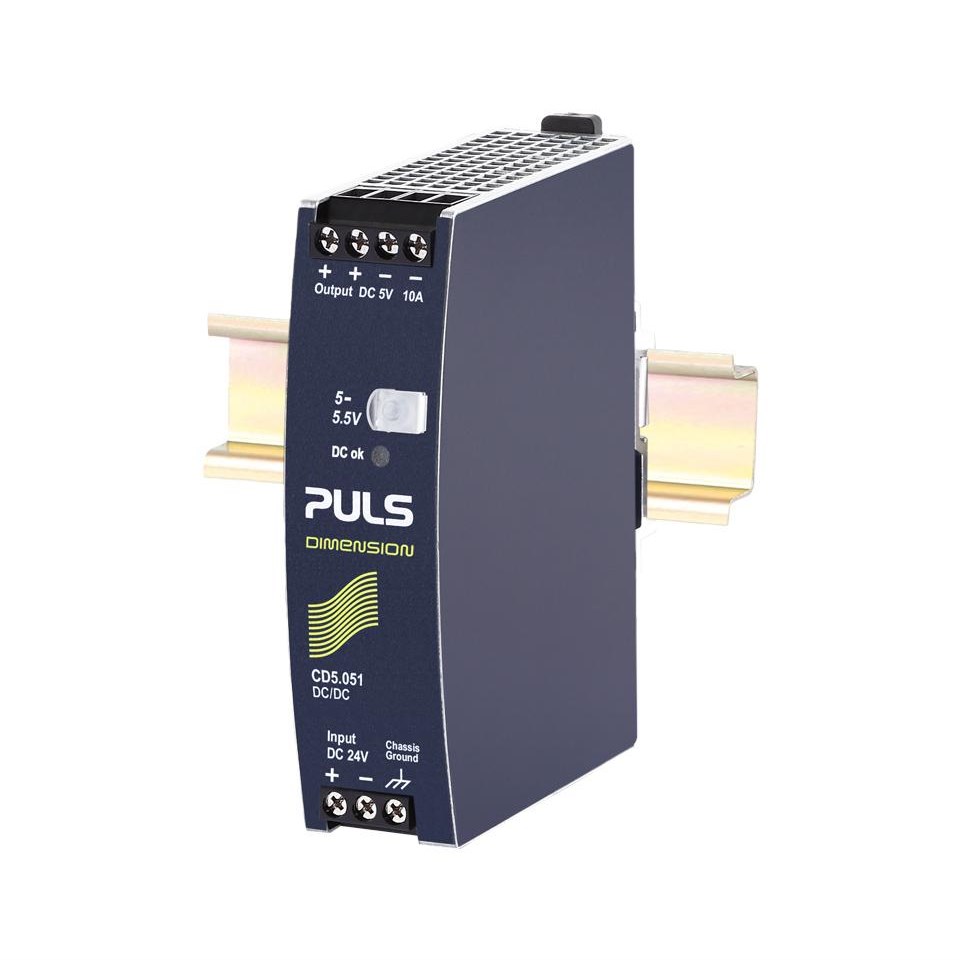

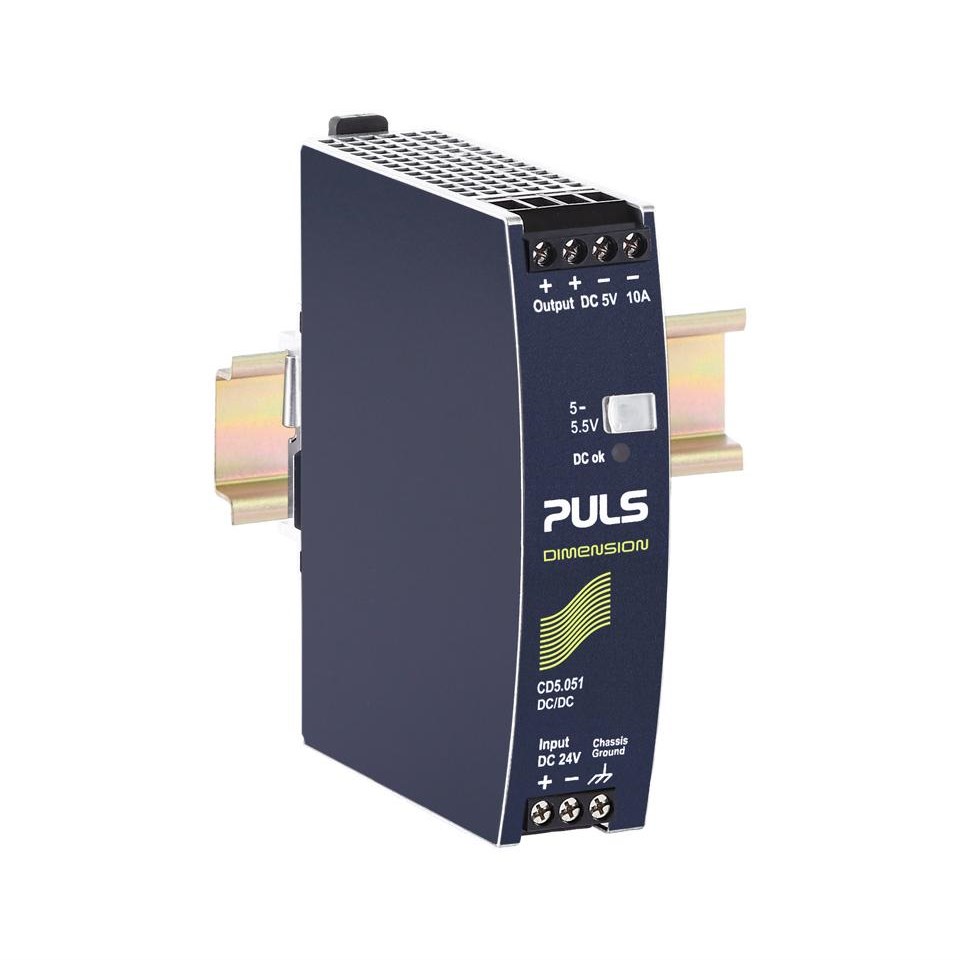

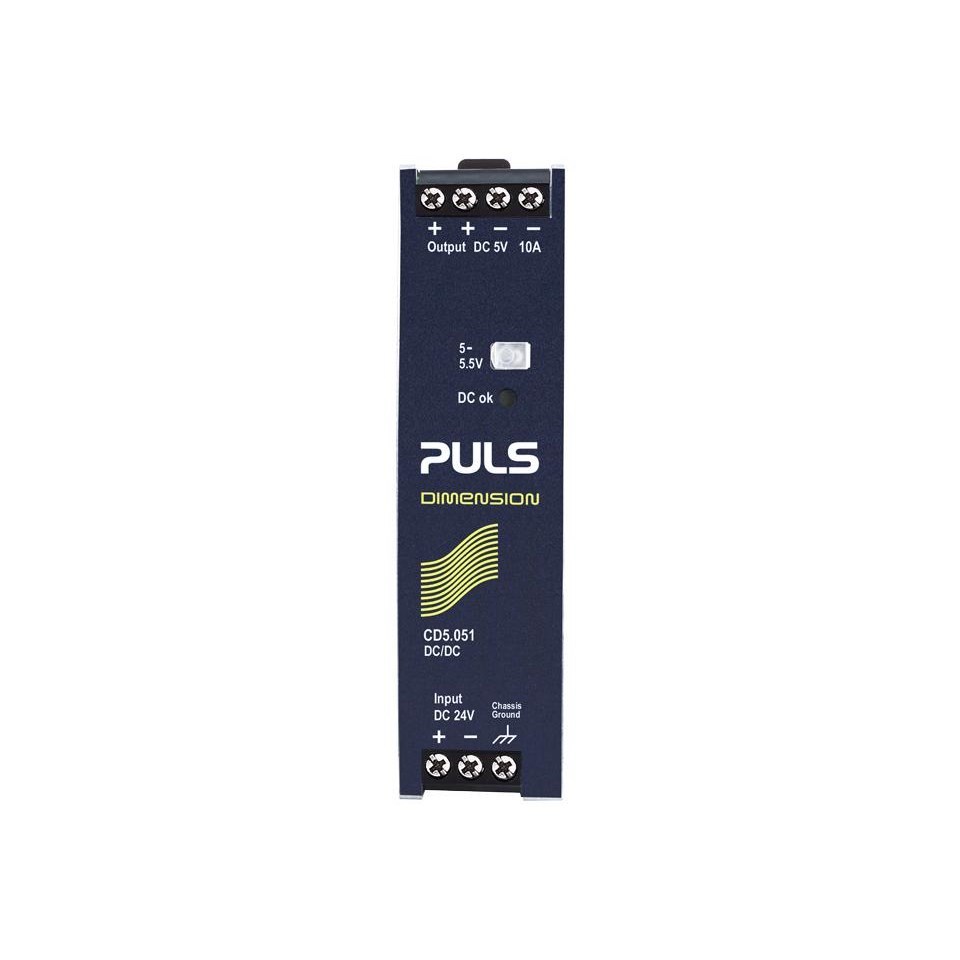

Puls CD5.051 DC/DC Converter 24VDC 10A 50 Watt

Product Code: CD5.051

  • Compact size: 32mm width, fits DIN Rail
  • Rated for 10A and 24VDC output
  • High efficiency at 81.5%
  • IP20 protection with screw terminals
  • Meets global safety standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC/DC Converter
Brand
Puls
Series
CD

Electrical

Input Voltage
18 V - 32.4 V DC
Output Current - Range
10A to 10A
Output Power
50W
Output Voltage - Nominal
5V DC
Output Voltage - Range
5V to 5.5V
Efficiency
81.5% (typical)
Terminal Type
Screw terminals

Dimensions & Physical Data

Depth
102mm
Height
124mm
Weight
0.425kg
Width
32mm

Environmental

Approvals / Conformity
CE, Exemption Letter, IEC 61010-2-201 CB, UL 61010-2-201 CAN/USA, IEC 60950 RoHS, REACH CMRT/ EMRT
Operating Temperature
-25°C to 70°C
