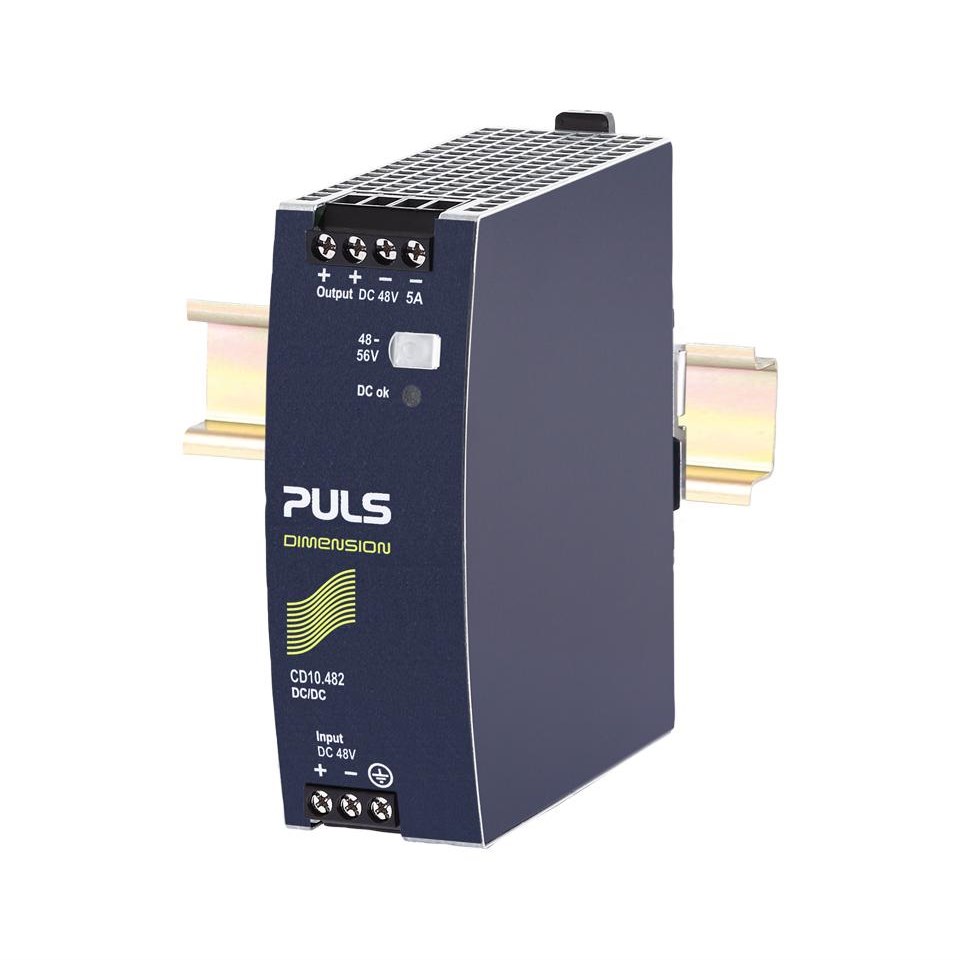

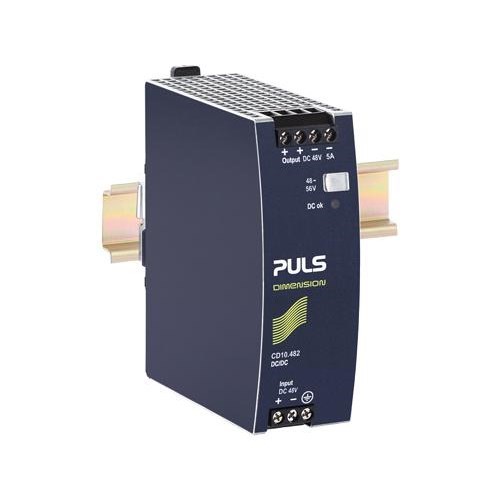

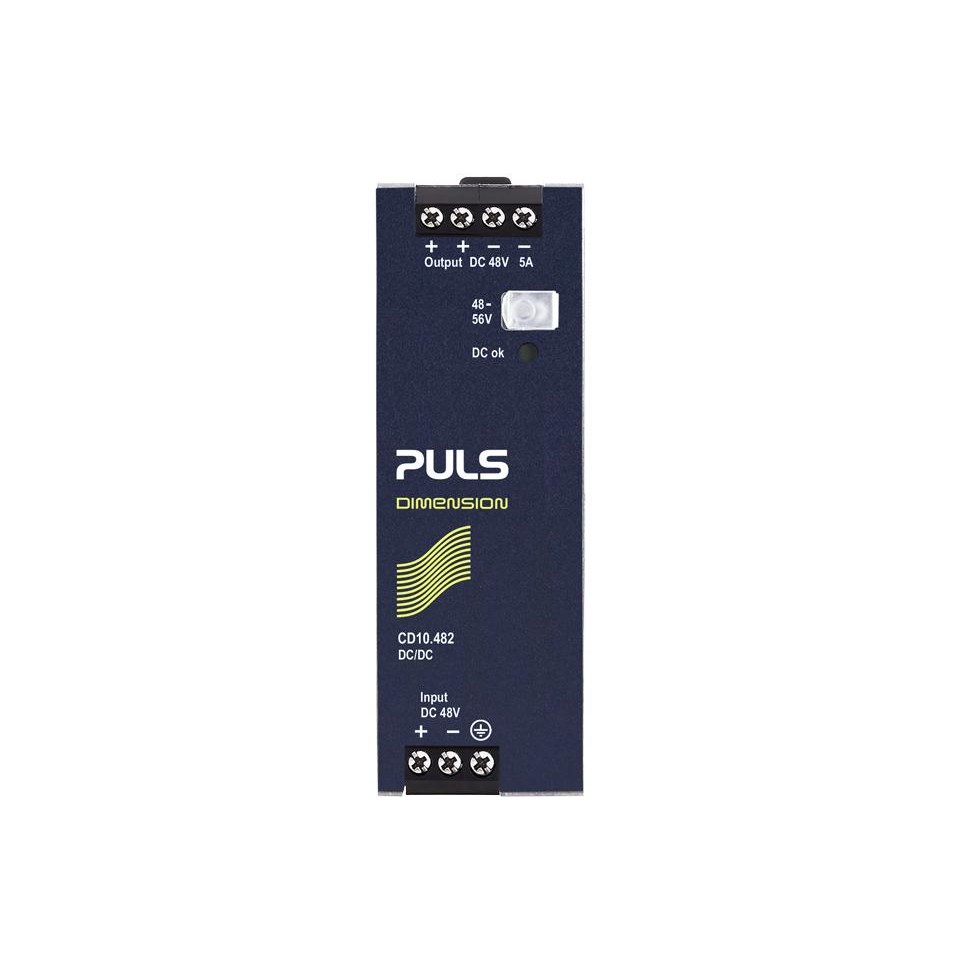

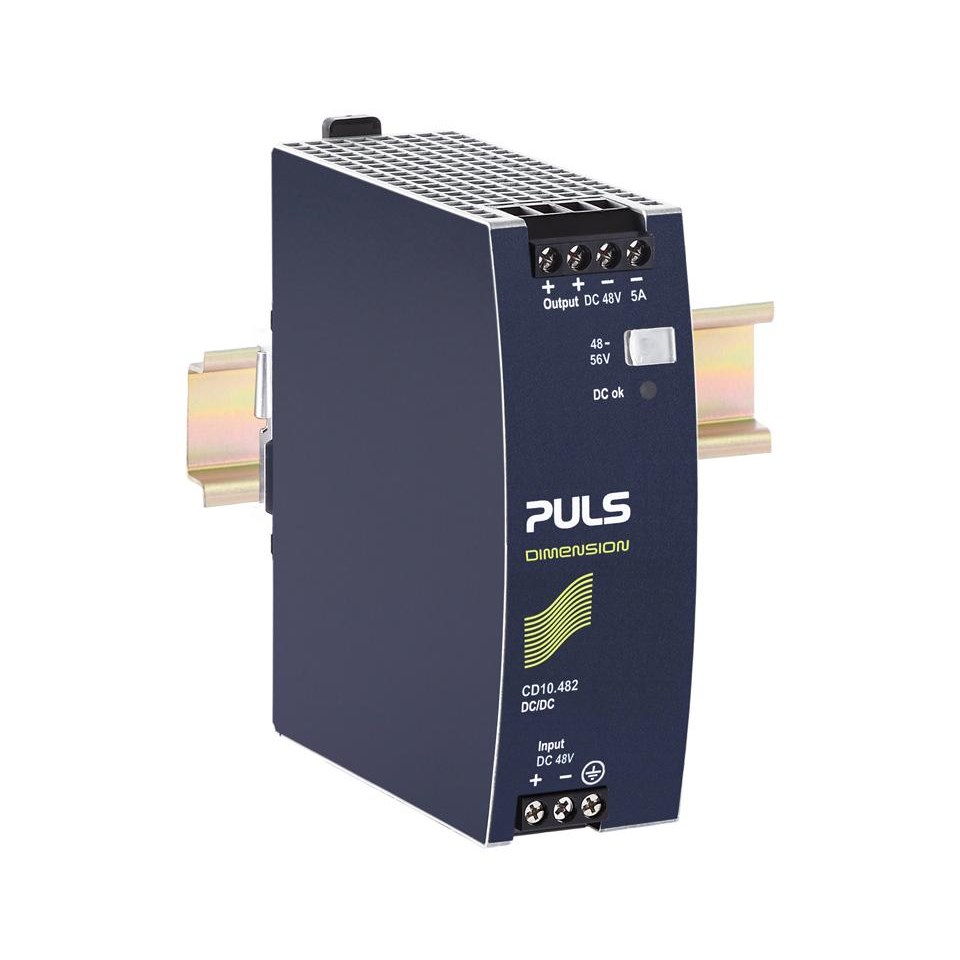

Puls CD10.482 DC/DC Converter 48VDC 5A 240 Watt

Product Code: CD10.482

  • High efficiency at 95.1%
  • Compact size: 42x124x117 mm
  • Rated power of 240 W
  • Operates in -25 to 70°C range
  • IP20 protection for safety
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC/DC Converter
Brand
Puls
Series
CD

Electrical

Input Voltage
48 V DC (± 25 %)
Output Current - Range
5A to 4.3A
Output Power
240W
Output Voltage - Nominal
48V DC
Output Voltage - Range
48V to 56V
Efficiency
95.1% (typical)
Terminal Type
Screw terminals

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.5kg
Width
42mm

Environmental

Approvals / Conformity
CE, Exemption Letter, IEC 61010-2-201 CB, UL 61010-2-201 CAN/USA, IEC 60950 RoHS, REACH CMRT/ EMRT
Operating Temperature
-25°C to 70°C

Documents

IPD Product Catalogue V17
