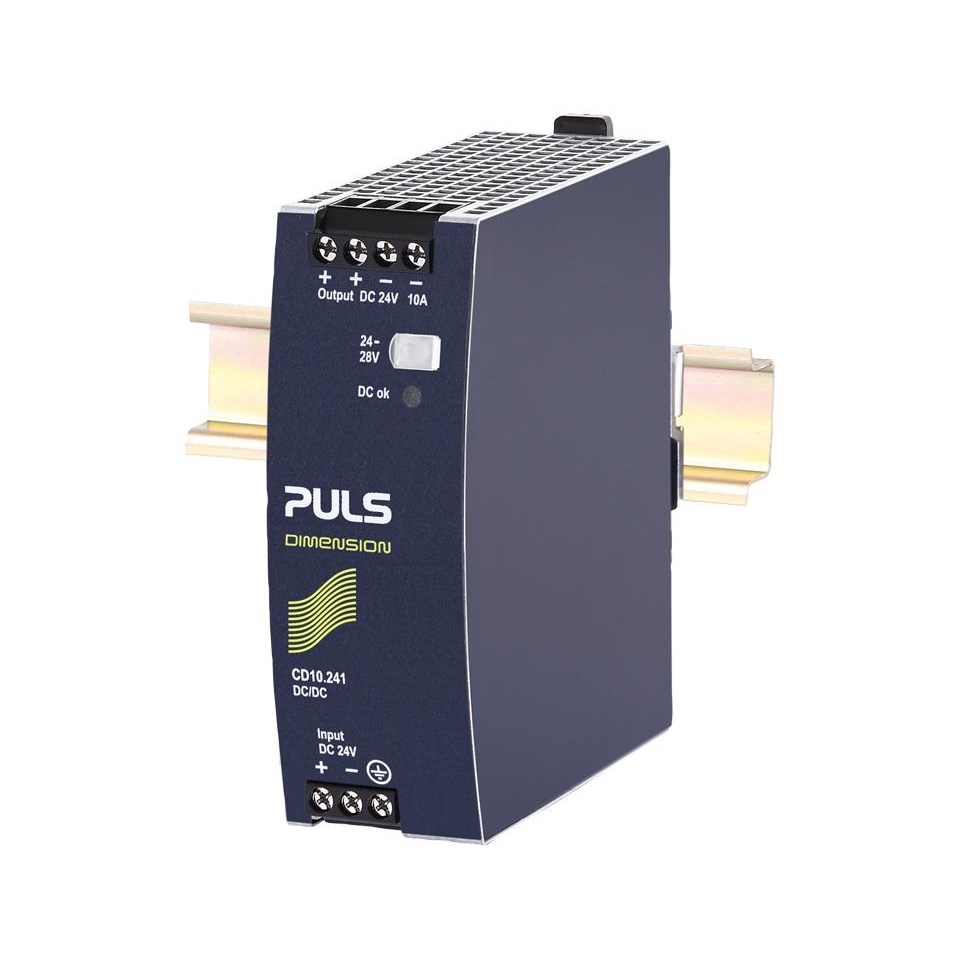

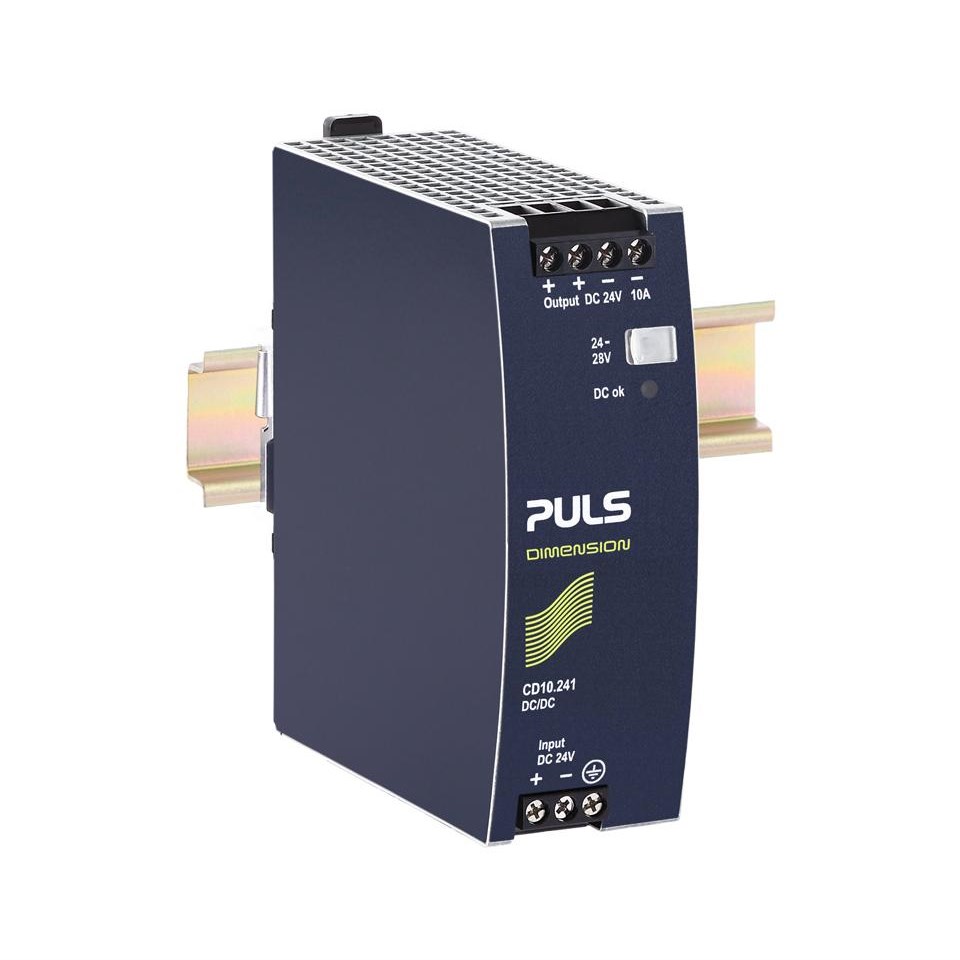

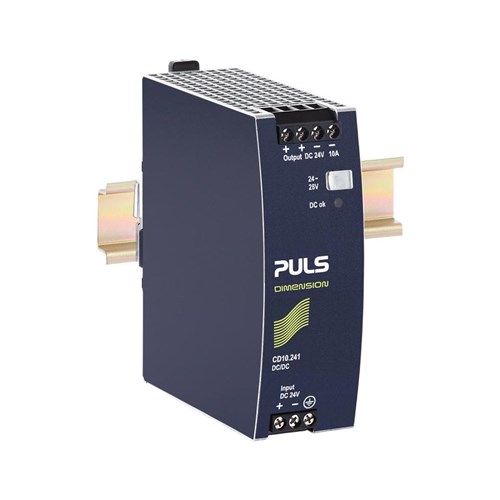

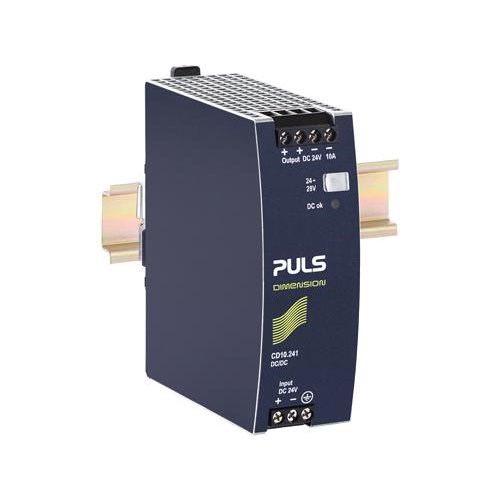

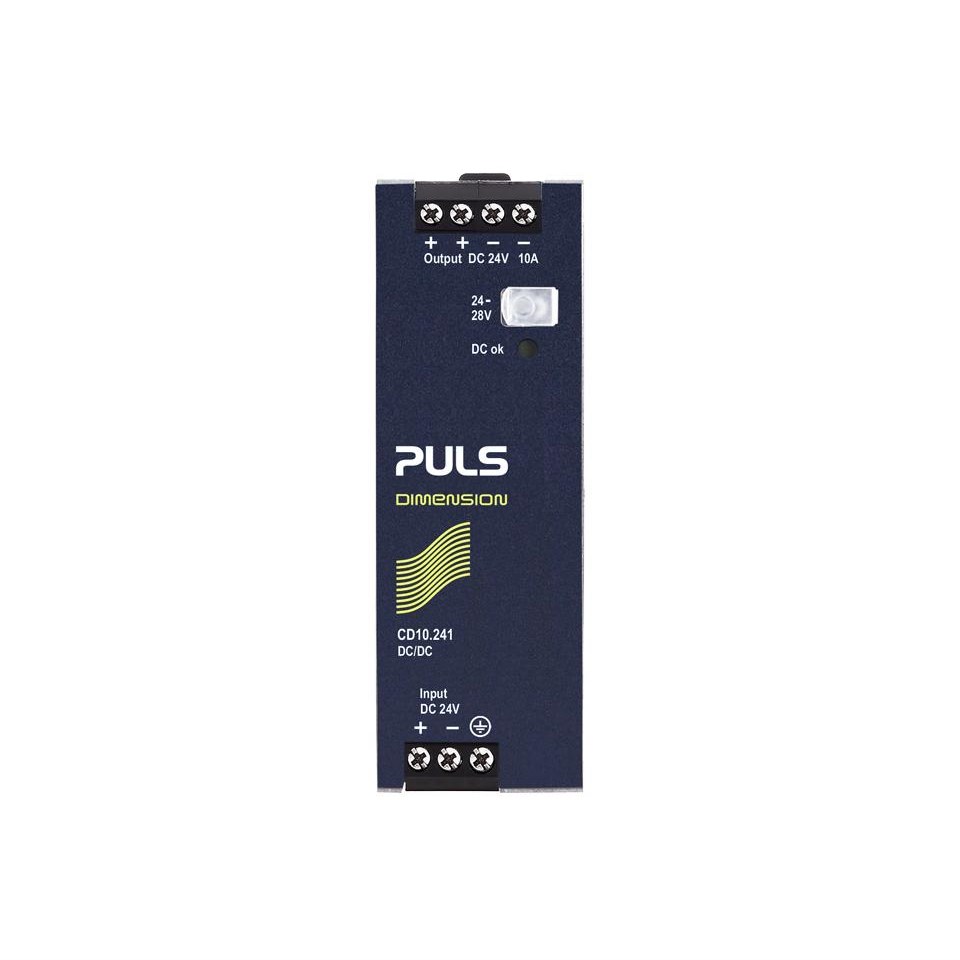

Puls CD10.241 DC/DC Converter 24VDC 10A 240 Watt

Product Code: CD10.241

  • High efficiency at 94.2%
  • Compact size: 42x124x117 mm
  • Rated power output of 240 W
  • Secure DIN rail mounting
  • Wide temp range: -25 to 70°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
DC/DC Converter
Brand
Puls
Series
CD

Electrical

Input Voltage
DC 24V (-25 %/+46 %)
Output Current - Nominal
10A at 24V DC
Output Current - Range
10A to 8.6A
Output Power
240W
Output Voltage - Nominal
24V DC
Output Voltage - Range
24V to 28V
Efficiency
94.2% (typical)
Terminal Type
Screw terminals

Mechanical

Diagnostic Functions
DC-OK LED
Housing Material
Body: Aluminium alloy, Cover: Zinc-plated steel

Dimensions & Physical Data

Depth
117mm
Height
124mm
Weight
0.5kg
Width
42mm

Environmental

Approvals / Conformity
UL 61010-2-201, IEC 61010-2-201, IEC 60950-1, KC
Operating Temperature
-25°C to 70°C
IP Rating
IP20
