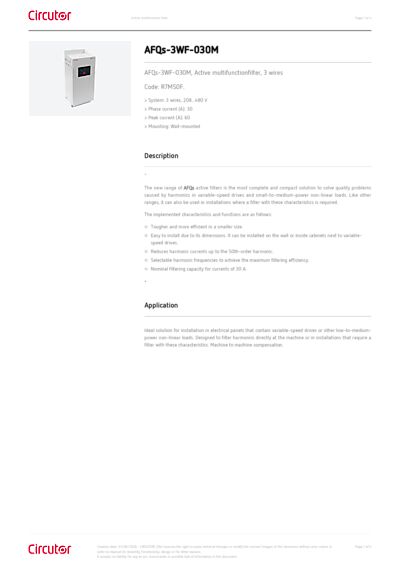

Circutor

Series

AFQs

Connection Type Network / Ground: M6 terminals, Current: 6-pole connector, Ethernet: RJ-45	Max. Phase Current 30 A (RMS)	Nominal Voltage (AC Primary) 208 … 480 V~ F-F (± 10 %)
Earthing System TN, TT	Rated Frequency 50 / 60 Hz (± 5 %)	ETIM 9.0 Class EC002758
Electrical Safety, Contamination Level/Class 2	Electrical Safety, Maximum Height (M) 3000 (refer to guide)	Protection Class IP 20
Phase Compensation Selectable	Reactive Power Compensation Selectable	Current Crest Factor 2:1
Transformation Ratio 5/5A … 20000 / 5A	Voltage Harmonics (THD) 25 % (max)

Torque Setting Current (conductors): 0.5 to 0.6 Nm Mains and Earth (ground): 2.2 to 2.4 Nm	Envelope Galvanized steel 1.5 mm	Parallel Assembly / Installation Up to 100 units, with different gauges. Transformer connection only to the Master unit
Priority Scheduling Selectable	Display Type TFT color, 4.3" touchscreen

Depth 201 mm	Height 490 mm	Weight 14
Width 205 mm	Cable Gauge at Power Supply Terminals Grid: Ø 12 mm / Ground: Ø 16 mm	Cable Gauge at Current Terminals 2.5 mm²

Noise (dB) LAT: 63 dB - LCpeakt: 95 dB	Relative Humidity (Without condensation) 0 ... 95 %	Storage Temperature -20 ... +50 ºC
Working Temperature -10 ... +45 ºC

Filtering / Response Time 2º … 50º harmonic (selectable) / < 100 µs	Protocol (Network) TCP/IP, Modbus TCP	Protocol (Serial) Modbus/RTU
Technology / Interface Ethernet	Technology / Type (Serial) RS-485

Standards

IEC 62477-1, IEC 61000-6-2, IEC 61000-6-4,UNE-EN 60068-2-1, UNE-EN 60068-2-2, UNE-EN 60068-2-78, UNE-EN 60068-2-64, UNE-EN 60068-2-6

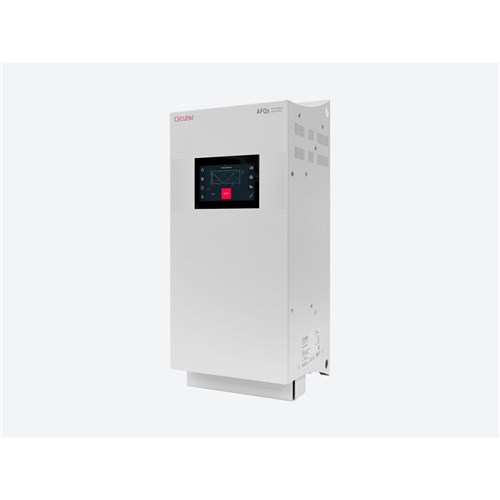

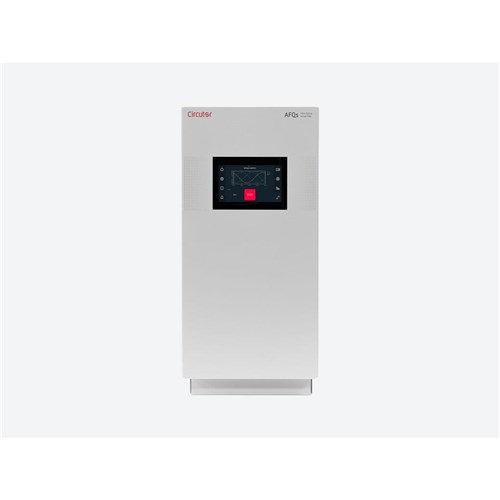

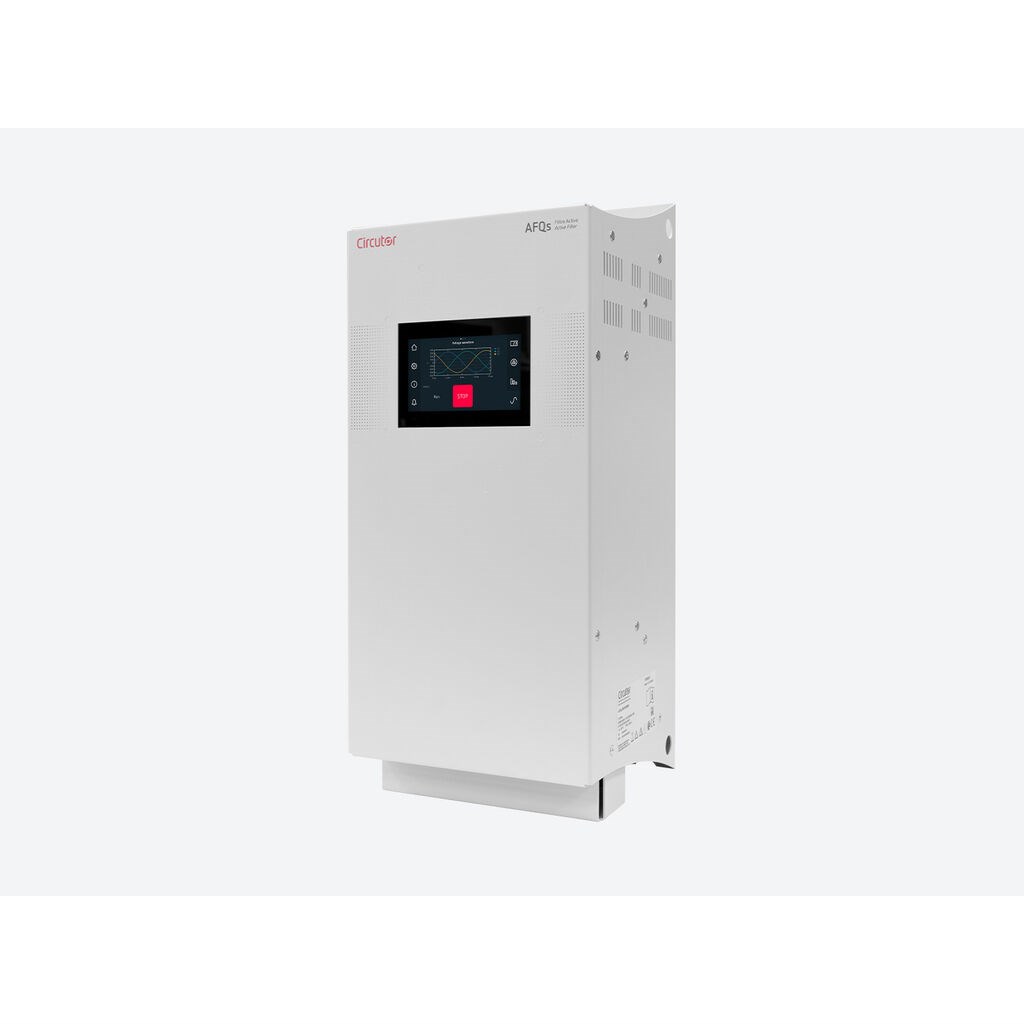

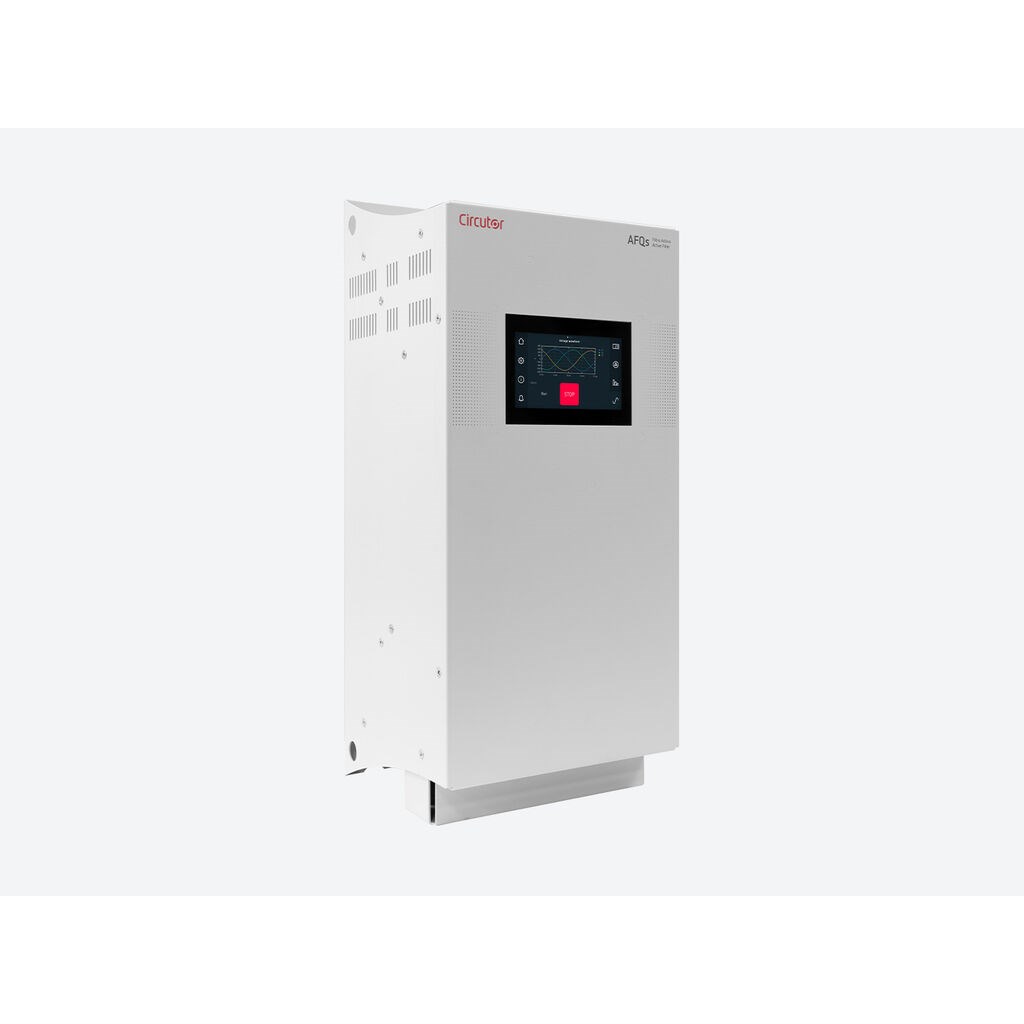

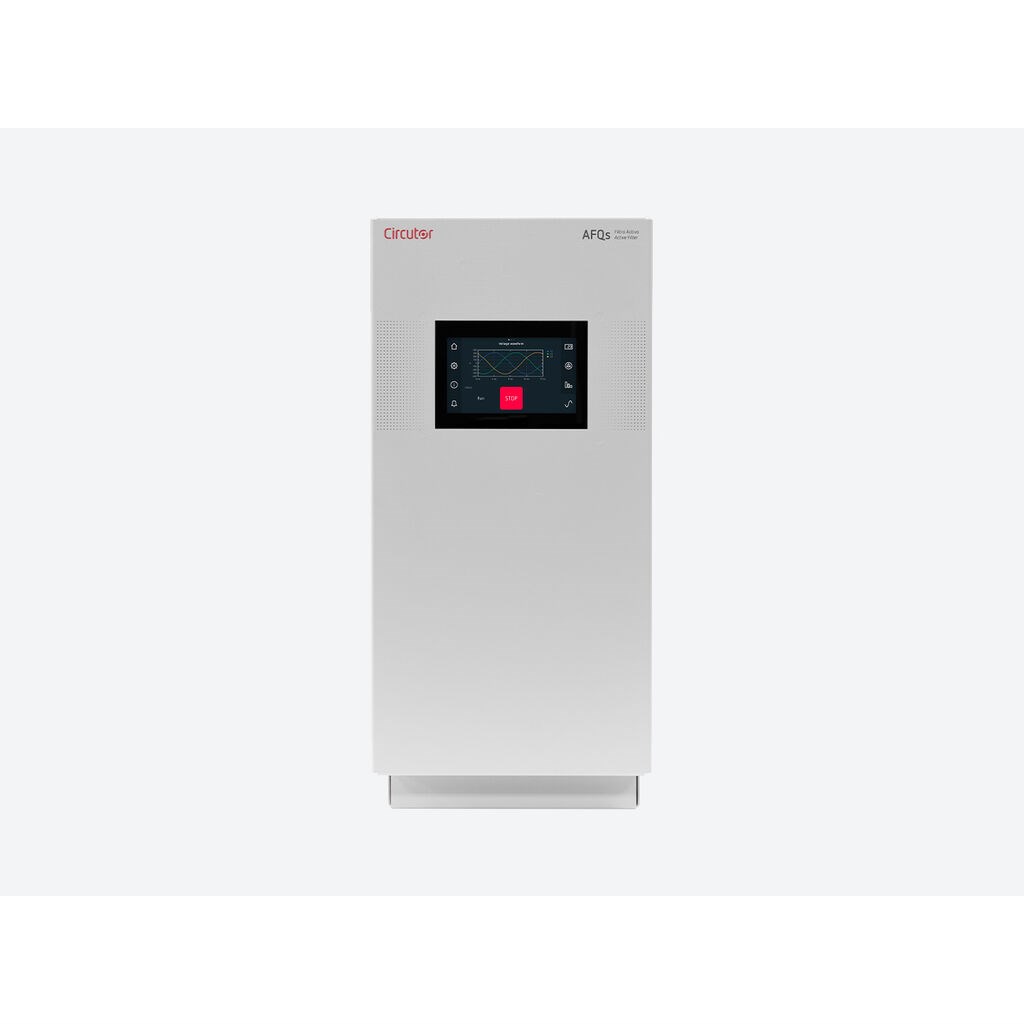

CIRCUTOR R7MS0F AFQS ACTIVE FILTER 30A 480V 3-WIRE WALL-MOUNT AFQs-3WF-030M
