Brand

Circutor

Series

AFQm-M

Connection Type Network: M8 ring terminal, Ground: M10 ring terminal, Current: 6-pole connector, RS-485: 3-pole connector, Ethernet: RJ-45	Max. Phase Current 100 A (RMS)	Nominal Voltage (AC Primary) 208 … 480 V~ F-F (± 10 %)
Earthing System TN, TT	Rated Frequency 50 / 60 Hz (± 5 %)	Rated Power 76300 VA
ETIM 9.0 Class EC002758	Electrical Safety, Maximum Height (M) 3000 (2000 m without performance degradation)	Protection Class IP 20
Phase Compensation Selectable	Reactive Power Compensation selectable	Current Crest Factor 2:1
Transformation Ratio 5 … 5000 / 5A	Voltage Harmonics (THD) 25 % (max)	AC Power Consumption 2070 W

Torque Setting RS-485: 0,5 … 0,6 Nm / Current: 0,5 … 0,6 Nm / Grid: 8…10 Nm / Earth: 10 … 14 Nm	Envelope Galvanized steel 1.5 mm	Parallel Assembly / Installation Up to 100 units, with different gauges. Transformer connection only to the Master unit
Priority Scheduling selectable	Display Type TFT color, 3.5" touchscreen

Depth 288 mm	Height 745 mm	Weight 58
Width 439 mm	Communications Cable Cross-Section RS-485: 2.5 mm²	Cable Gauge at Power Supply Terminals Grid: Ø 23 mm
Cable Gauge at Current Terminals 2.5 mm²

Relative Humidity (Without condensation)

0 ... 95 %

Storage Temperature

-20 ... +50 ºC

Working Temperature

-10 ... +45 ºC

Filtering / Response Time 2º … 50º harmonic (selectable) / < 100 µs	Protocol (Network) TCP/IP, Modbus TCP	Protocol (Serial) Modbus/RTU
Technology / Interface Ethernet	Technology / Type (Serial) RS-485

Standards

IEC 62477-1:2012, IEC 55011:2011, IEC 61000-6-2, IEC 61000-6-4:2007,IEC 61439-1:2011

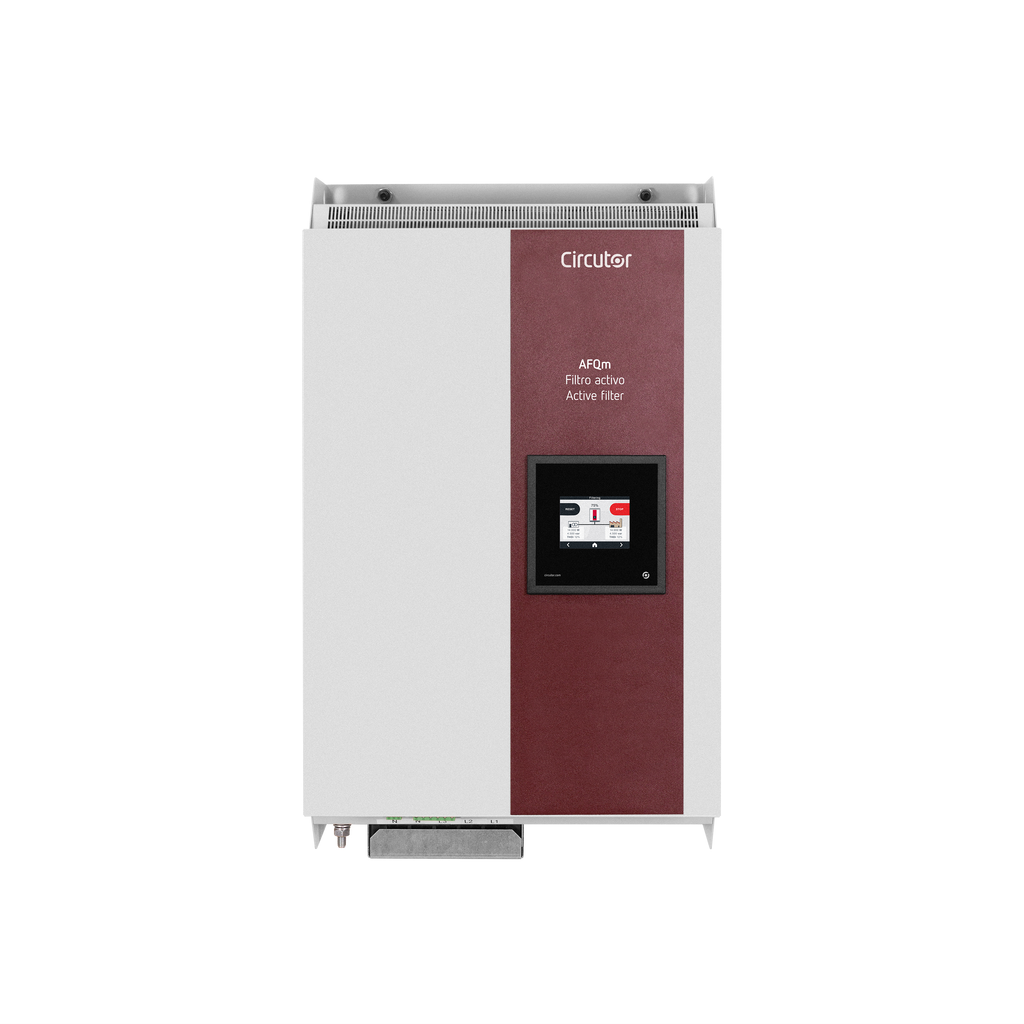

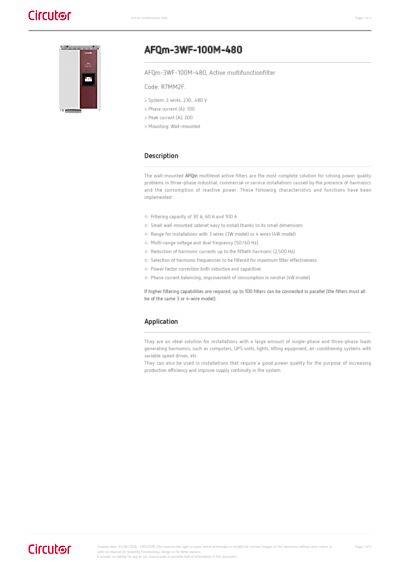

CIRCUTOR R7MM2F AFQM ACTIVE FILTER 100A 480V 3-WIRE WALL-MOUNT AFQm-3WF-100M-480

Specifications
