Brand

Circutor

Series

AFQm-C

Connection Type Network: plate 40x10, Ground: Ring terminal 8 mm, Current: spring 2,5 mm2, Neutral: plate 100x10, Ethernet: RJ-45	Max. Phase Current 300 A (RMS)	Nominal Voltage (AC Primary) 208 … 480 V~ F-F (± 10 %)
Earthing System TN, TT	Rated Frequency 50 / 60 Hz (± 5 %)	Rated Power 228900 VA
Rated Conditional Short-Circuit Current (Inc) 40 kA	ETIM 9.0 Class EC002758	Installation Category (AC Supply) 4 kV, CAT III Class 1
Electrical Safety, Maximum Height (M) 3000 (2000 m without performance degradation)	Protection Class IP 21 (IP 41 on demand) / IK10	Phase Compensation Selectable
Reactive Power Compensation Selectable	Rated Diversity Factor (RDF), Simultaneity 1	Rated Peak Current Ipk 84 kA
Current Crest Factor 2:1	Transformation Ratio 5 … 5000 / 5A	Voltage Harmonics (THD) 25 % (max)
AC Power Consumption 6210 W

Torque Setting Grid and Neutral: 45 Nm / Earth: 10 Nm	Envelope Free-standing sheet steel cabinet, for installation indoors, without removable parts.	Parallel Assembly / Installation Up to 100 units, with different gauges. Transformer connection only to the Master unit
Priority Scheduling Selectable	Display Type TFT color, 3.5" touchscreen

Depth 812 mm	Height 1890 mm	Weight 192
Width 608 mm	Communications Cable Cross-Section RS-485: 2.5 mm²	Cable Gauge at Power Supply Terminals Neutral and Ground: Ø 12 mm,
Cable Gauge at Current Terminals 2.5 mm²

Relative Humidity (Without condensation)

0 ... 95 %

Storage Temperature

-20 ... +50 ºC

Working Temperature

-10 ... +45 ºC

Filtering / Response Time 2º … 50º harmonic (selectable) / < 100 µs	Protocol (Network) TCP/IP, Modbus TCP	Protocol (Serial) Modbus/RTU
Technology / Interface Ethernet	Technology / Type (Serial) RS-485

Standards

IEC 62477-1:2012, IEC 55011:2011, IEC 61000-6-2, IEC 61000-6-4:2007,IEC 61439-1:2011

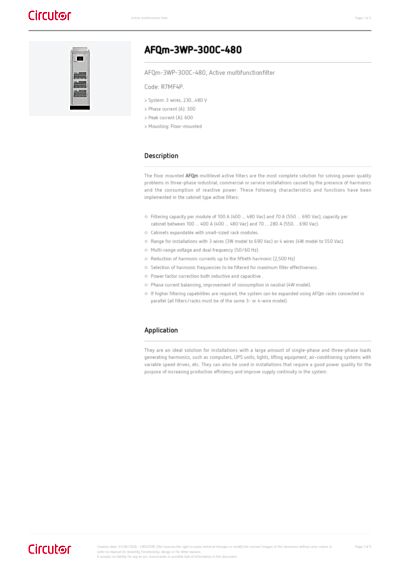

CIRCUTOR R7MF4P AFQM ACTIVE FILTER 300A 480V 3-WIRE CABINET AFQm-3WP-300C-480
