Product Code: R4T3R2

Specifications

General

Product Type Static Var Generator (SVG)	Brand Circutor	Series SVGm
Application Dynamic/real-time reactive power compensation

Electrical

Max. Phase Current 145 A (RMS)	Nominal Voltage (AC Primary) 200 … 480 V~ F-F (± 10 %)	Transformer Ratio Transformer: 5/5A … 5000/5A
Wattage 2070 W (max.)	Earthing System TN,TT	Rated Frequency 50 / 60 Hz (± 5 %)
Rated Nominal Voltage 200 … 480 V~ F-F (± 10 %)	ETIM 9.0 Class EC002758	Electrical Safety, Maximum Height (M) 3000 (2000 m sin limitar prestaciones)
Protection Class IP20	Reactive Power Compensation Selectable: 0.7 inductive ... 1 ... 0.7 capacitive	Transformation Ratio Transformer: 5/5A … 5000/5A
Consumption (Per Transformer) 1,5 VA/Tr	AC Power Consumption 2070 W (max.)

Mechanical

Parallel Assembly / Installation

Up to 100 devices of different caliber. Connection of transformers only in Master unit.

Dimensions & Physical Data

Depth 714.5 mm	Height 263 mm	Weight 45 kg
Width 482.5 mm

Environmental

Noise (dB) < 60 dBA	Storage Temperature -20 … +50 ºC	Operating Temperature -10 … +50 ºC
IP Rating IP20	Working Temperature -10 … +50 ºC

Communication & Control

Filtering / Response Time

< 100 µs

Safety, Standards & Compliance

Standards and Approvals

IEC 61000-6-4, UNE-EN 55011, IEC 61000-6-2, IEC 62477-1, IEC 61439-1, IEC 60721-3-3 (Indoor conditioned); Max. altitude: 3000 (2000 m sin limitar prestaciones)

Standards

IEC 61000-6-4, UNE-EN 55011, IEC 61000-6-2, IEC 62477-1, IEC 61439-1, IEC 60721-3-3 (Indoor conditioned)

CIRCUTOR R4T3R2 SVG RACK 100KVAR 480V 3-WIRE SVGm-3WF-100R-480

Product Code: R4T3R2

Need full access to stock, pricing, and ordering?

Specifications

General

Electrical

Mechanical

Dimensions & Physical Data

Environmental

Communication & Control

Safety, Standards & Compliance

Documents

IPD Product Catalogue V17

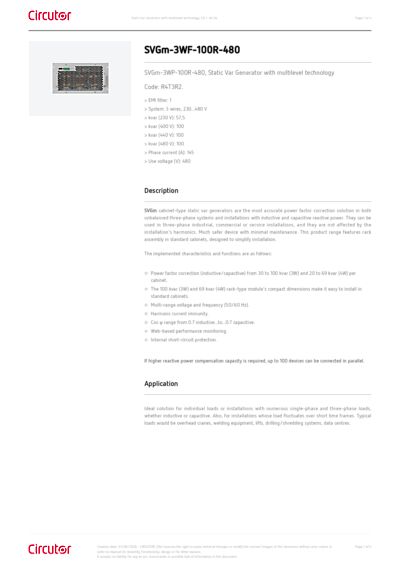

Circutor Datasheet
