Specifications

Brand

Circutor

Series

SVGm

Max. Phase Current 580 A (RMS)	Nominal Voltage (AC Primary) 200 … 480 V~ F-F (± 10 %)	Earthing System TN,TT
Rated Frequency 50 / 60 Hz (± 5 %)	Rated Conditional Short-Circuit Current (Inc) 40 kA	ETIM 9.0 Class EC002758
Installation Category (AC Supply) 4 kV, CAT III Class 1	Electrical Safety, Contamination Level/Class Category 2	Electrical Safety, Maximum Height (M) 3000 (2000 m without performance degradation)
Protection Class IP 21 / IK10 (IP 41 on demand)	Reactive Power Compensation Selectable: 0.7 inductive ... 1 ... 0.7 capacitive	Rated Diversity Factor (RDF), Simultaneity 1
Rated Peak Current Ipk 84 kA	Transformation Ratio Transformer: 5/5A … 5000/5A	Consumption (Per Transformer) 1.5 VA per transformer
AC Power Consumption 8280 W (max.)

Parallel Assembly / Installation

Up to 100 devices of different caliber. Connection of transformers only in Master unit.

Depth 812 mm	Height 1890 mm	Weight 355
Width 608 mm

Noise (dB) < 69 dBA	Relative Humidity (Without condensation) 0 ... 95 %	Storage Temperature -20 … +50 ºC
Working Temperature -10 … +50 ºC

Filtering / Response Time < 100 µs	Protocol (Network) TCP/IP, Modbus TCP	Protocol (Serial) Modbus/RTU
Technology / Interface Ethernet	Technology / Type (Serial) RS-485

Standards

IEC 61000-6-4, UNE-EN 55011, IEC 61000-6-2, IEC 62477-1, IEC 61439-1, IEC 60721-3-3 (Indoor conditioned)

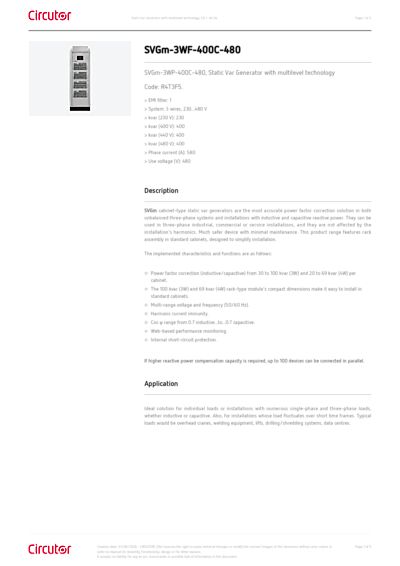

CIRCUTOR R4T3F5 SVG CABINET SVGm-3WF-400C-480
