Specifications

Brand

Circutor

Series

SVGm

Max. Phase Current 145 A (RMS)	Nominal Voltage (AC Primary) 208 … 480 V~ F-F (± 10 %)	Earthing System TN, TT
Rated Frequency 50 / 60 Hz (± 5 %)	ETIM 9.0 Class EC002758	Electrical Safety, Maximum Height (M) 3000 (2000 m without performance degradation)
Protection Class IP20	Reactive Power Compensation Selectable: 0.7 inductive ... 1 ... 0.7 capacitive	Transformation Ratio Transformer: 5/5A … 5000/5A
Consumption (Per Transformer) 1.5 VA per transformer	AC Power Consumption 2070 W (Max)

Parallel Assembly / Installation

Up to 100 devices of different caliber. Connection of transformers only in Master unit.

Depth 714.5 mm	Height 263 mm	Weight 55
Width 482.5 mm

Noise (dB)

< 60 dBA

Storage Temperature

-20 … +50 ºC

Working Temperature

-10 … +45 ºC

Filtering / Response Time

< 100 µs

Standards

IEC 61000-6-4, UNE-EN 55011, IEC 61000-6-2, IEC 62477-1, IEC 61439-1, IEC 60721-3-3 (Indoor conditioned)

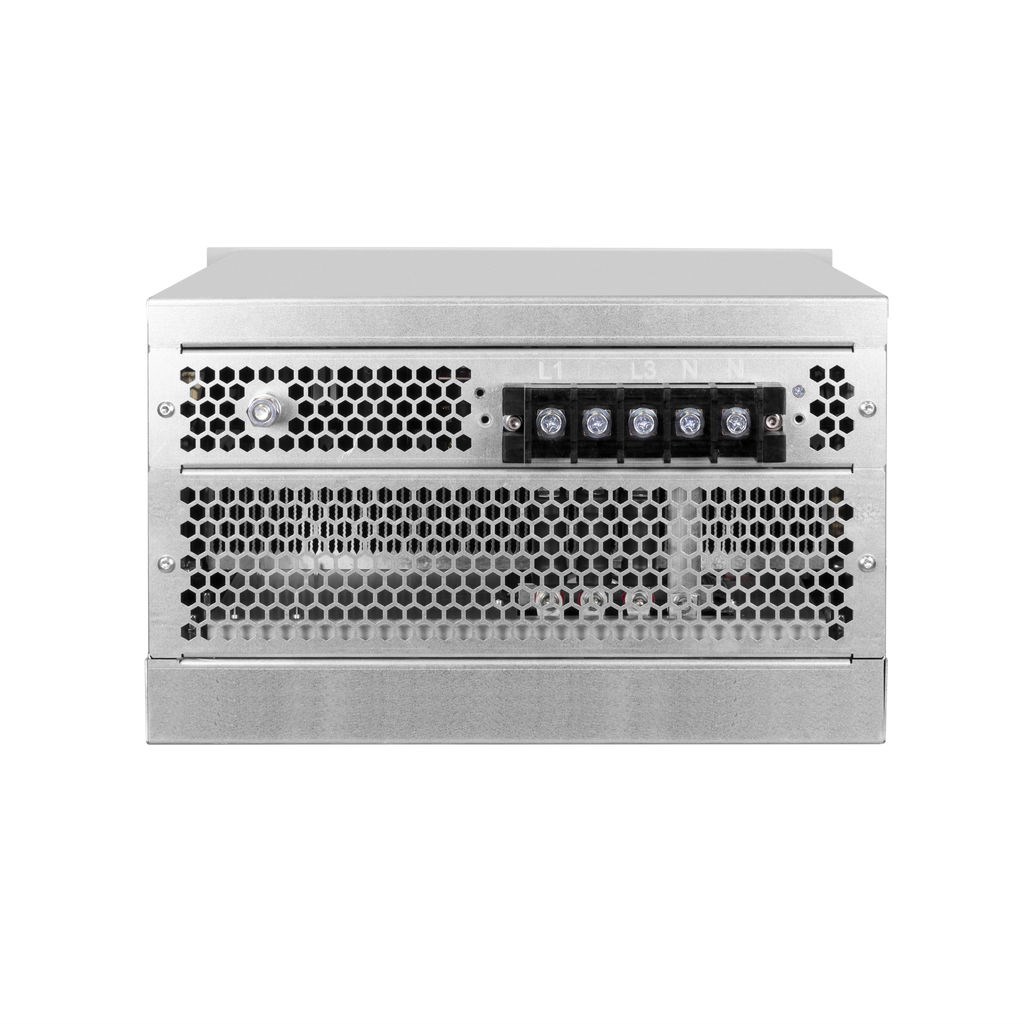

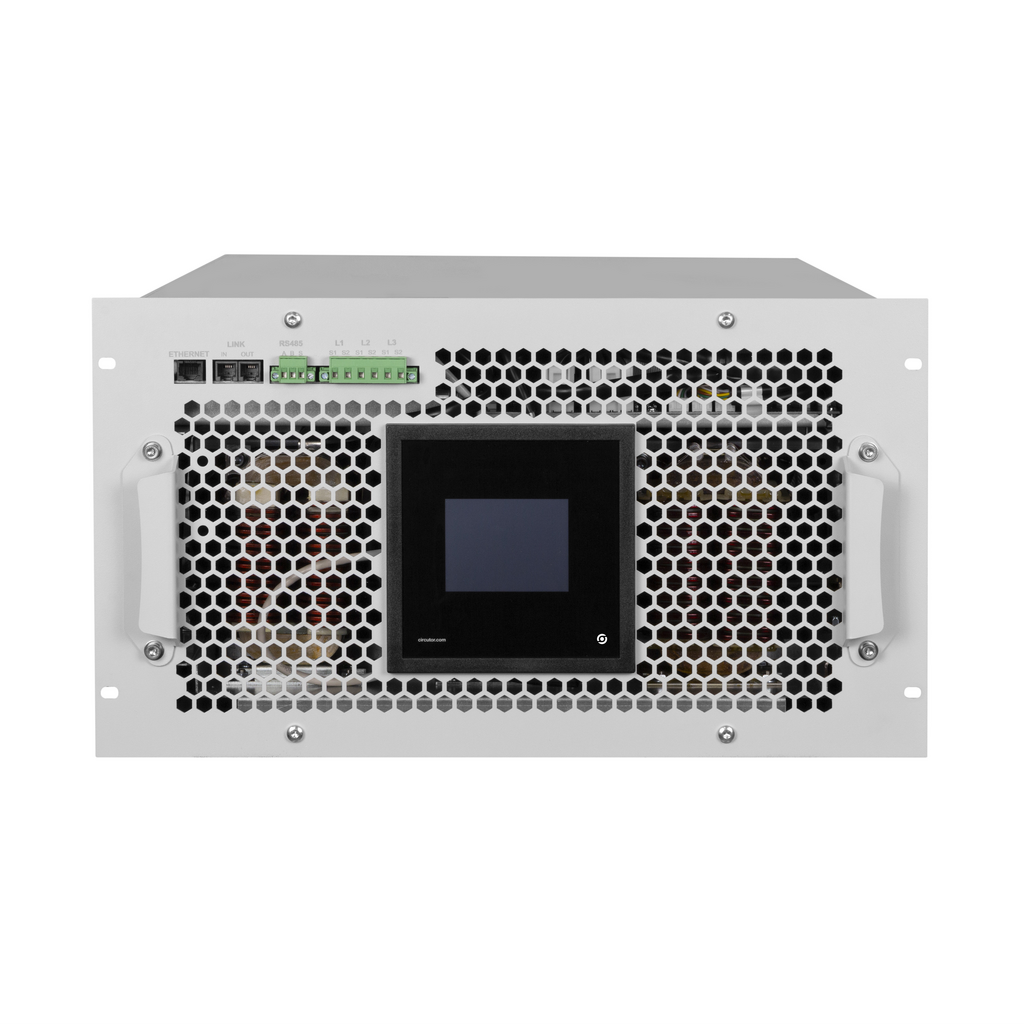

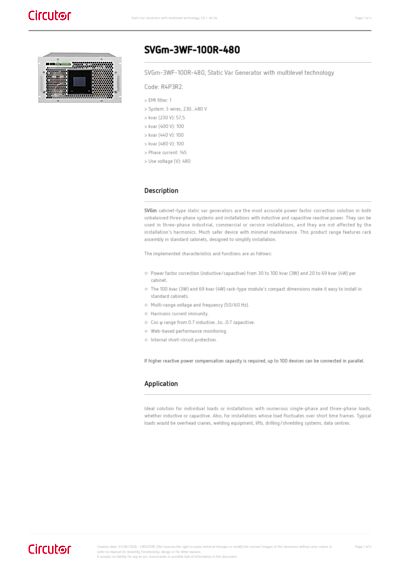

CIRCUTOR R4P3R2 SVG RACK 100KVAR 480V 3-WIRE SVGm-3WF-100R-480
