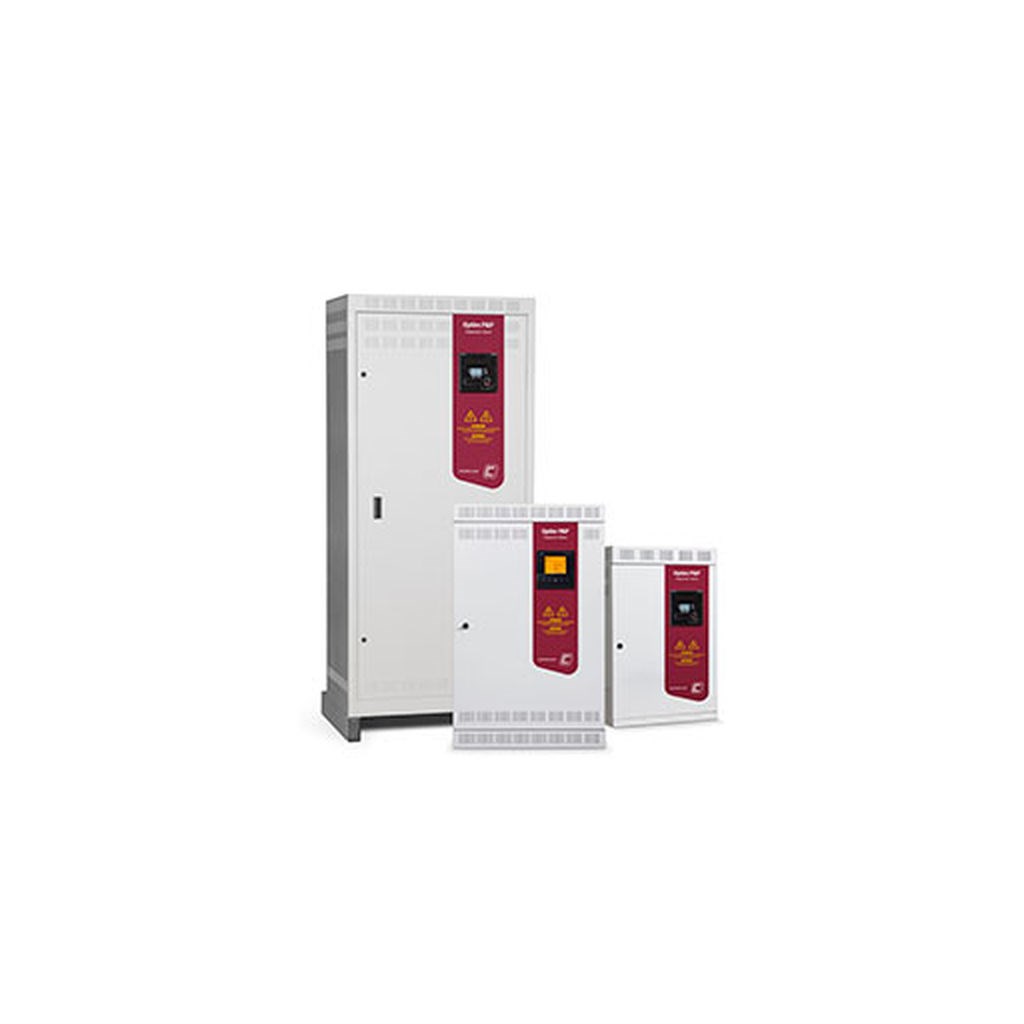

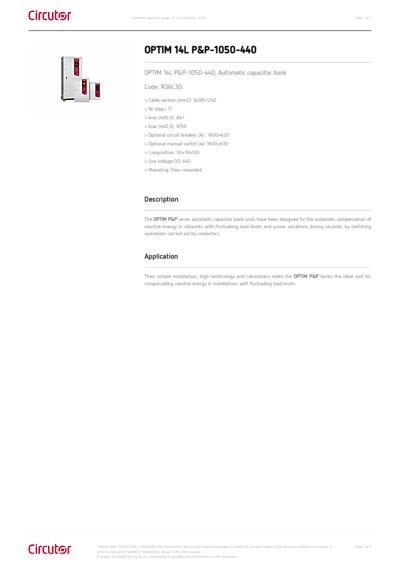

CIRCUTOR R36L30 OPTIM CAP BANK P&P 1050 kVAr 440V 14L STEP OPTIM 14L P&P-1050-440

Circutor

OPTIM P&P

50 Hz

402 V (other voltages on request)

EC002758

Maximum 1000 m (for higher altitudes, forced ventilation must always be provided).

10 % 8 h over 24 h 15 % up to 15 min over 24 hours 20 % up to 5 min over 24 hours 30 % up to 1 min over 24 hours

75 V / 3 min

-5% / 10 %

IP 21

< 0,5 W/kvar

440 V

Contactors: 230 V

In/5 A

1.3 In

Vertical

Sheet metal RAL 7035 Grey / RAL 3005 Garnet

Reactive energy regulator, Computer C Wi-Fi, with digital indication and 6 or 12 relay outputs according to type.

650 mm

1900 mm

470

2100 mm

Fuses with high cut-off power (APR), type NH-00

80%

Tª class D: Daily average: 45 ºC, annual average: 35 ºC, maximum: 55 ºC, minimum: -50 ºC

Natural or forced according to options

IEC 60831-1, IEC 61921, IEC 60439

Manual circuit breaker at capacitor bank header. Circuit breaker at capacitor bank header Circuit breaker + earth leakage protection at capacitor bank header. Forced ventilation unit + thermostat. Polycarbonate plate to avoid direct exposure. 400/230 V autotransformer (included in OPTIM 8, 9, 8L, 14L, and 16L) Regulator with built-in network analyser and three-phase Computer SMART III measurement. Other frequencies, consult.
