Specifications

Product Type

Power Capacitor

Brand

Circutor

Series

CLZ-FP HD 50 Hz

Max. Phase Current 400 x In	Rated Insulation Voltage (Ui) 3 / 8kV	Rated Frequency 50Hz
Fixing Screw Type M6 x 16 / Hexagon socket 4mm	Voltage 525V	ETIM 9.0 Class EC002758
Electrical Safety, Maximum Height (M) 4000	Surge 10 % 8h in 24 h 15 % up to 30 min in 24 hours 20 % up to 5 min in 24 hours 30 % up to 1 min in 24 hours	Discharge Resistance 50 V / 1 min (0.5 - 30 kvar) 75 V / 3 min (33 - 50 kvar)
Tolerance -5 … +10 %	Losses (W) Dielectric: < 0,2W / kvar Total: < 0,4W / kvar	Max. Transient Current 1.8 In
Circuit Breaker Type Dielectric regeneration Expansion system

Torque Setting

2.5 ... 4N·m / Earth: 5N·m max

Fastening/Setting

M12 fastening screws earth conductor

Envelope

Aluminum

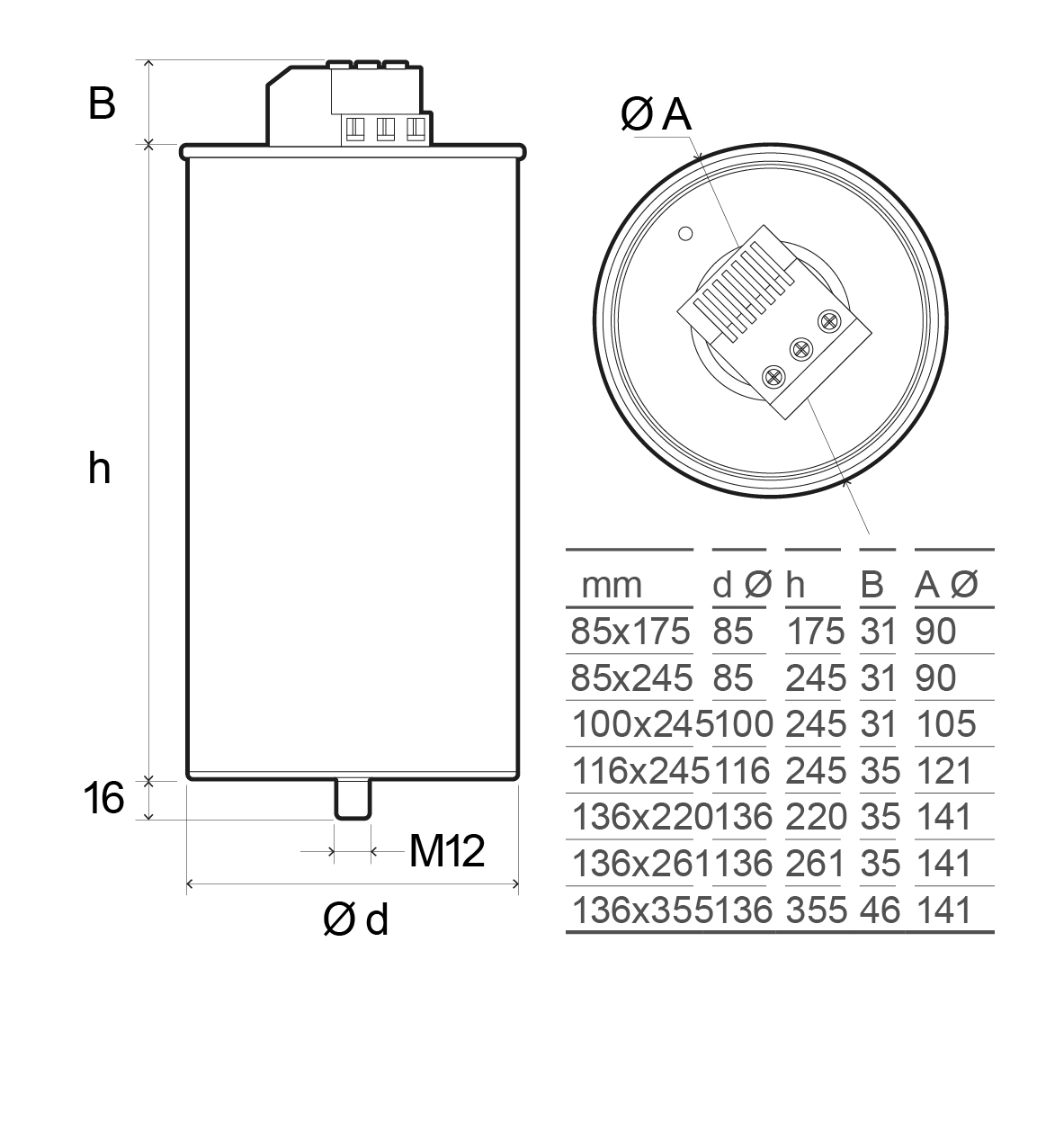

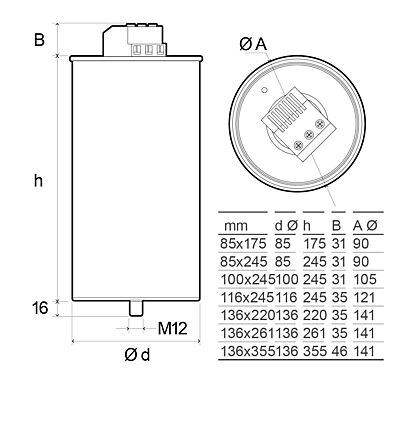

Depth 136mm	Height 401mm	Weight 5.24
Width 136mm	Cable Gauge at Input and Output Terminals 35mm²	Installation Vertical / Horizontal. Minimum distance between condensers 2 cm.

Relative Humidity (Without condensation)

0.95

Working Temperature

Tª class D: Daily average: 45°C, annual average: 35°C, maximum: 65°C, minimum: -50°C

Thermal Management

Natural or forced depending on the cabinet

Standards and Approvals

IEC 60831-1-1/2

Certifications / Approvals

VDE 560

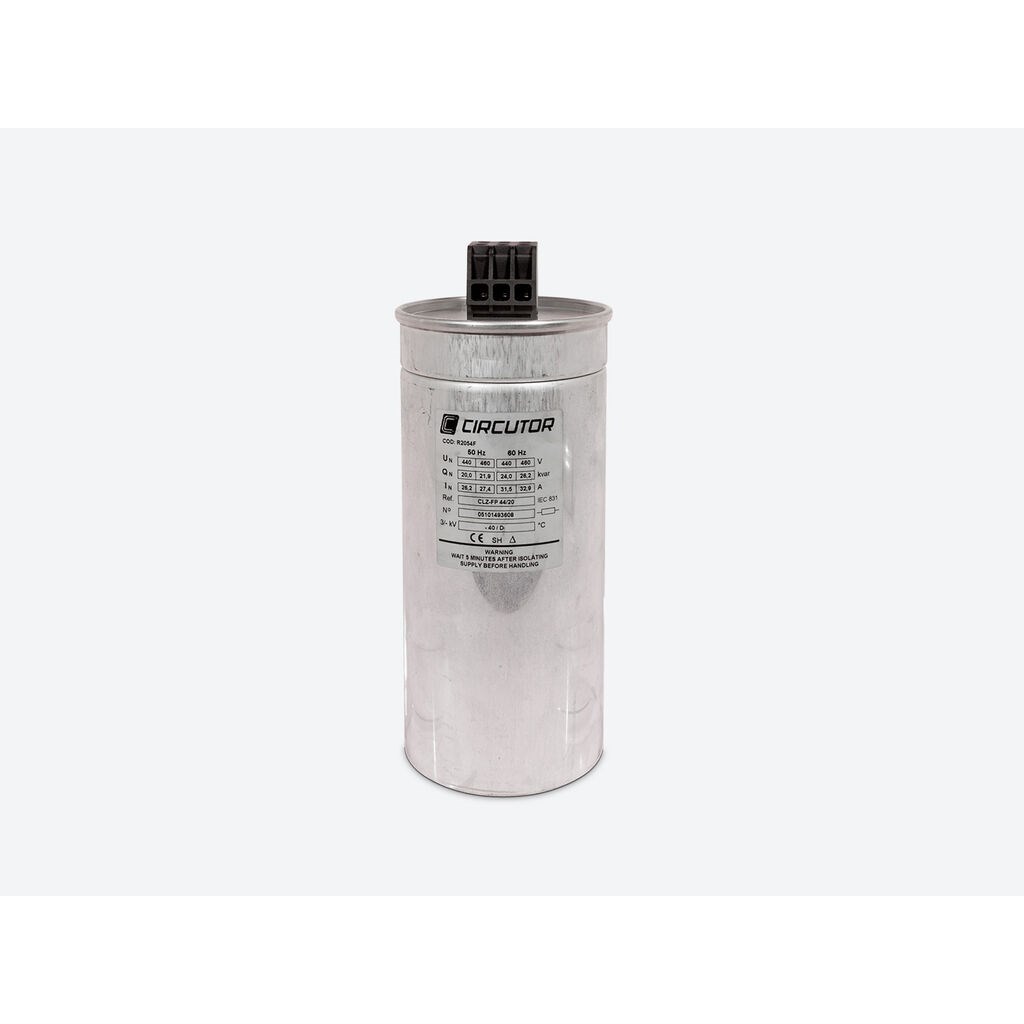

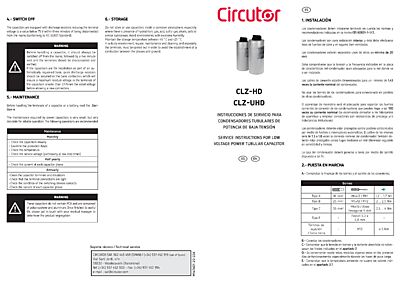

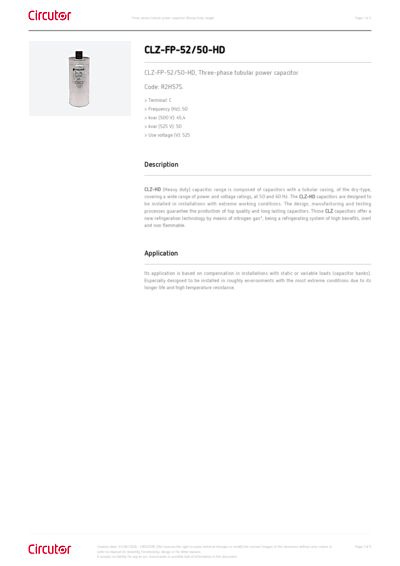

CIRCUTOR R2H57S POWER CAPACITOR HD 50kVAr 525V 50Hz CLZ-FP-52/50-HD
