Specifications

Brand

Circutor

Series

SmartLink-VAR

Nominal Voltage (AC Primary) 100 … 264 V ~	LED Indication 6 LED	Power Consumption 1.6 … 2 W
Rated Frequency 50 … 60 Hz	Fixing Screw Type Flat, M2.5	ETIM 9.0 Class EC000310
Installation Category (AC Supply) CAT III	Electrical Safety, Maximum Height (M) 2000	Installation Category (DC Supply) CAT III
Protection Class IP30, Front: IP40 \| IK08	Band 2.4 GHz (IEEE 802.11 b / g , IEEE 802.11 n (up 150 Mbps)	AC Power Consumption 2 … 7 VA
Nominal Voltage (DC Supply) 120 … 300 Vdc

Torque Setting

≤ 0.4 Nm

Fastening/Setting

DIN rail

Envelope

Self-extinguishing V0 plastic

Depth 70 mm	Height 109.45 mm	Weight 0.192
Width 35 mm	Communications Cable Cross-Section 2.5 mm²	Cable Gauge at Power Supply Terminals 2.5 mm²

Relative Humidity (Without condensation)

5 … 95 %

Storage Temperature

-20 … +70 ºC

Working Temperature

-20 … +60 ºC

Protocol (Network) TCP/IP\|UDP\|Modbus TCP/IP\|HTTTP (Web server)-REST	Technology / Interface Ethernet	Technology / Type (Serial) RS-485
Technology / Type (Wireless) Wi-Fi

Standards

EN 62368-1:2020/A11:2020/ AC:2020-05, EN 50663: 2017, ETSI EN 301 489-1 V2.2.3, ETSI EN 301 489-17 V3.2.4, ETSI EN 301 893 V2.1.1

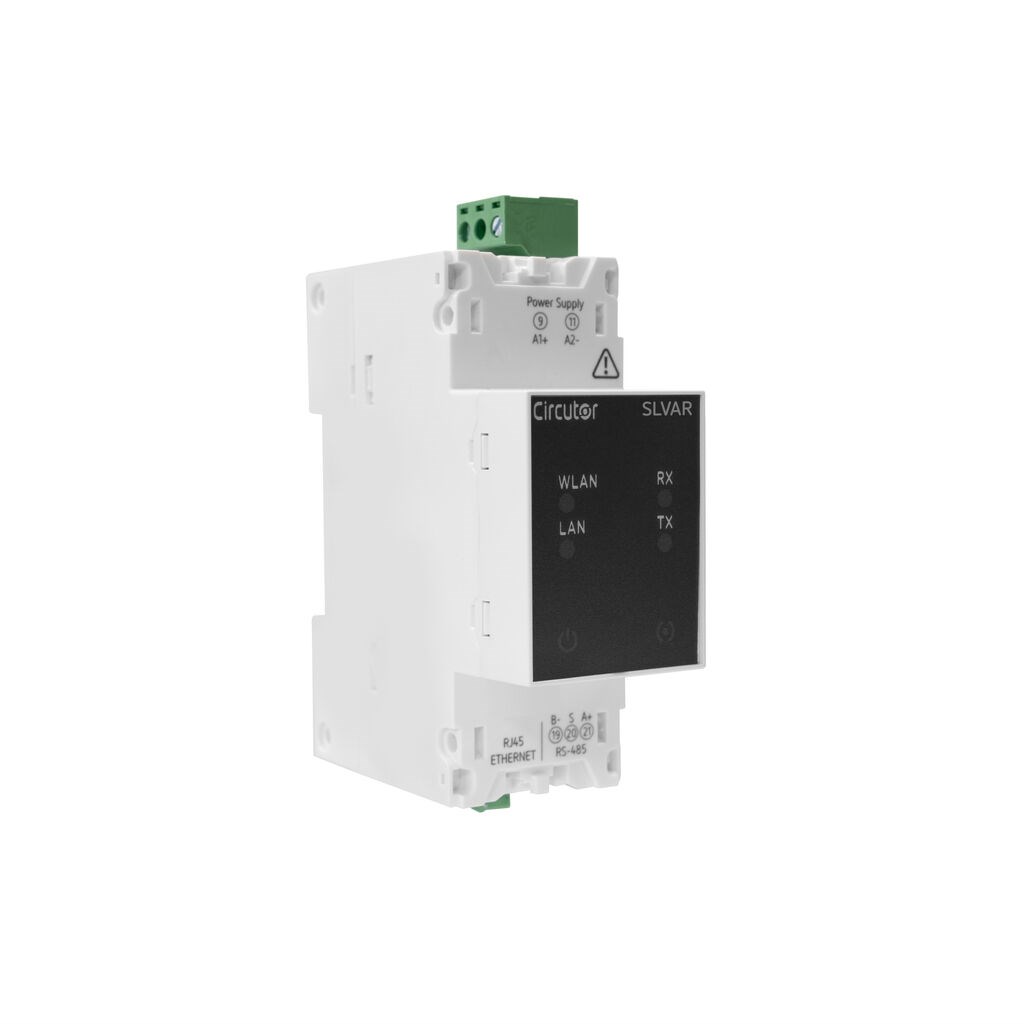

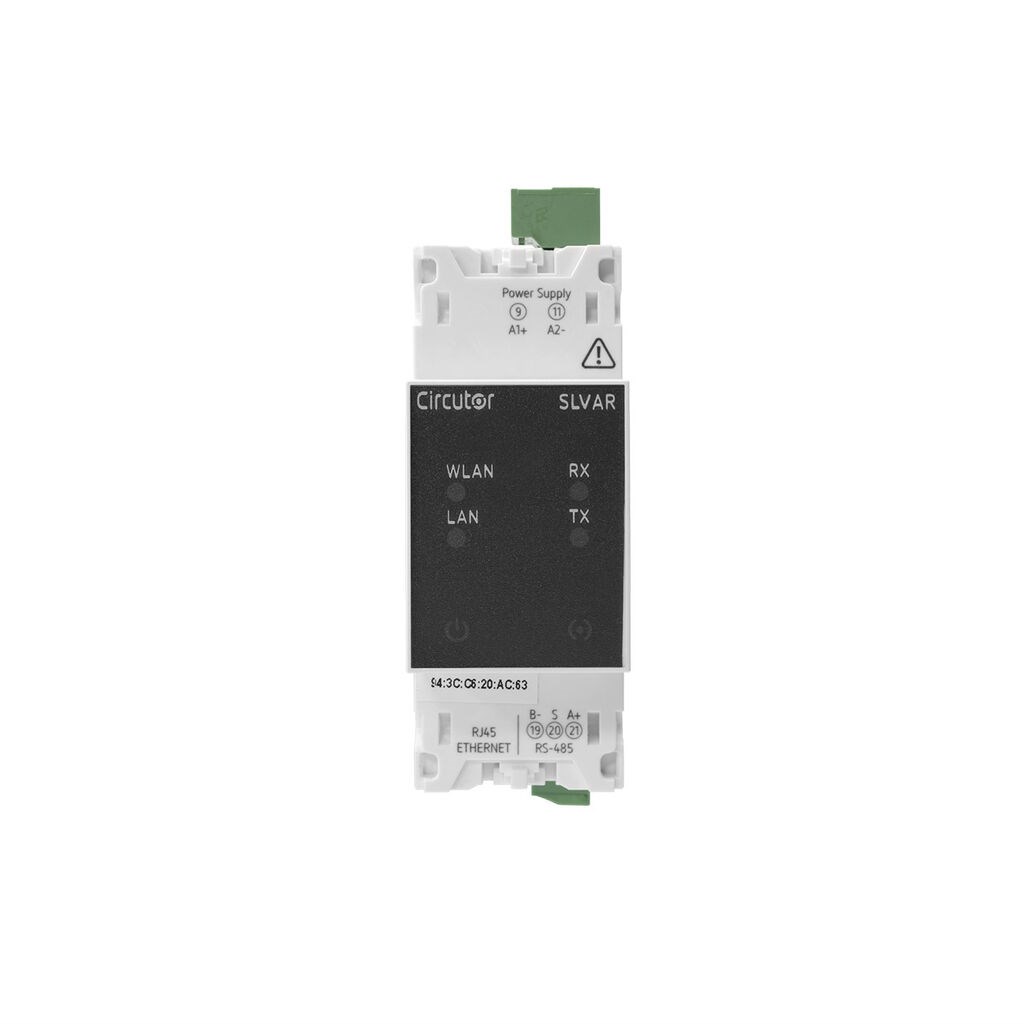

CIRCUTOR R1LVAR SMARTLINK MODULE RS-485 TO ETHERNET/WIFI SmartLink-VAR
