Specifications

Brand

Circutor

Series

computer C Wi-Fi

Nominal Current (In) … / 5 A	Nominal Voltage (AC Primary) 230 V ~ (±10 %)	Type of Electric Connection Connect preferably to phase L1
Rated Frequency 50 … 60 Hz	Mechanical Life 1x107 cycles	ETIM 9.0 Class EC002758
Electrical Safety, Insulation Double-insulated electric shock protection class II (IEC 61010-1)	Installation Category (AC Supply) CAT III 300 V	Electrical Safety, Contamination Level/Class Pollution resistance 2
Electrical Safety, Maximum Height (M) 2000	Protection Class IP 30 / Front Panel: IP 40 IK 08	Phase Angle f 2 % ± 1 digit
Quantity (Relay Outputs) 12 + 1 (Alarm)	Max. Open Contact Voltage 250 V~	Max. Current (Relay Outputs) 1 A~
Max. Switching Capacity 250 W	Electrical Life at Maximum Load 1x105 cycles	Permanent Overload (Per Transformer) + 20%
Phase Current Measuring Range 0.05 ... 5A	Phase Voltage Measurement 1%	Phase Current Measurement 1%
AC Power Consumption 4,7 VA

Fastening/Setting Panel	Envelope Plastic V0 self-extinguishing	Keyboard 3 keys
Resolution of the Display 3 digits

Depth 54.85 mm	Height 144 mm	Weight 0.61
Width 144 mm	Cable Gauge at Power Supply Terminals ≥1.5 mm²	Cable Gauge at Input and Output Terminals ≥1.5 mm²
Cable Gauge at Current Terminals ≥1.5 mm²

Relative Humidity (Without condensation)

5 … 95 %

Storage Temperature

-20 … +70 ºC

Working Temperature

-20 … +60 ºC

Standards

IEC 61010, IEC 61000-2-30, IEC 61000-6-4, IEC 61000-6-2

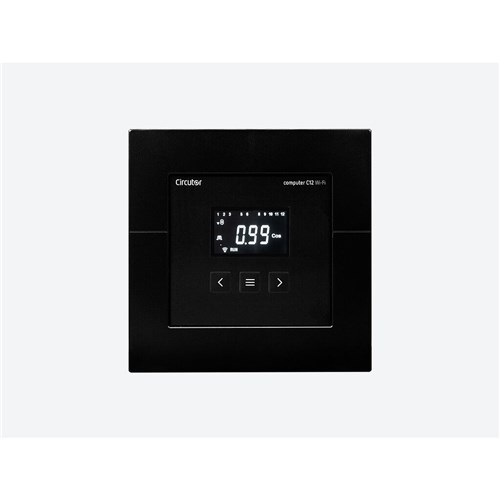

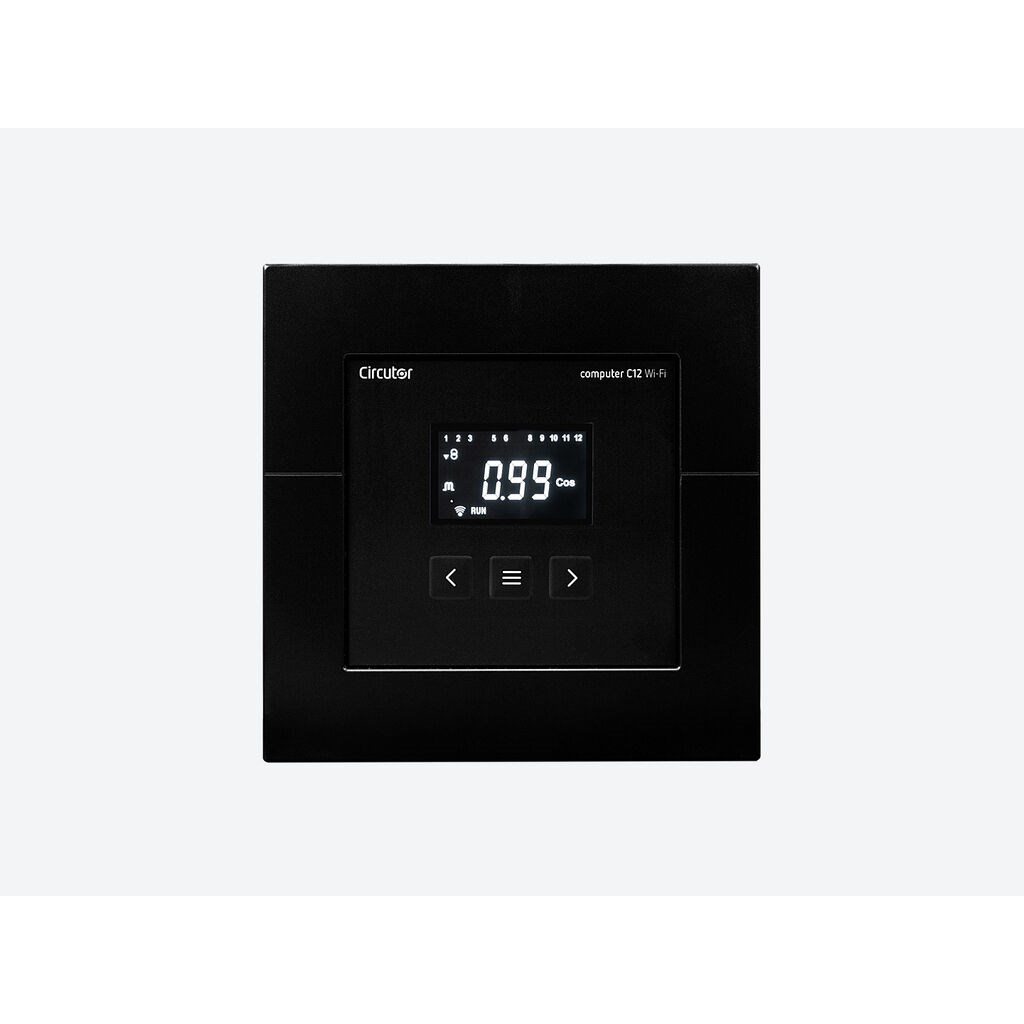

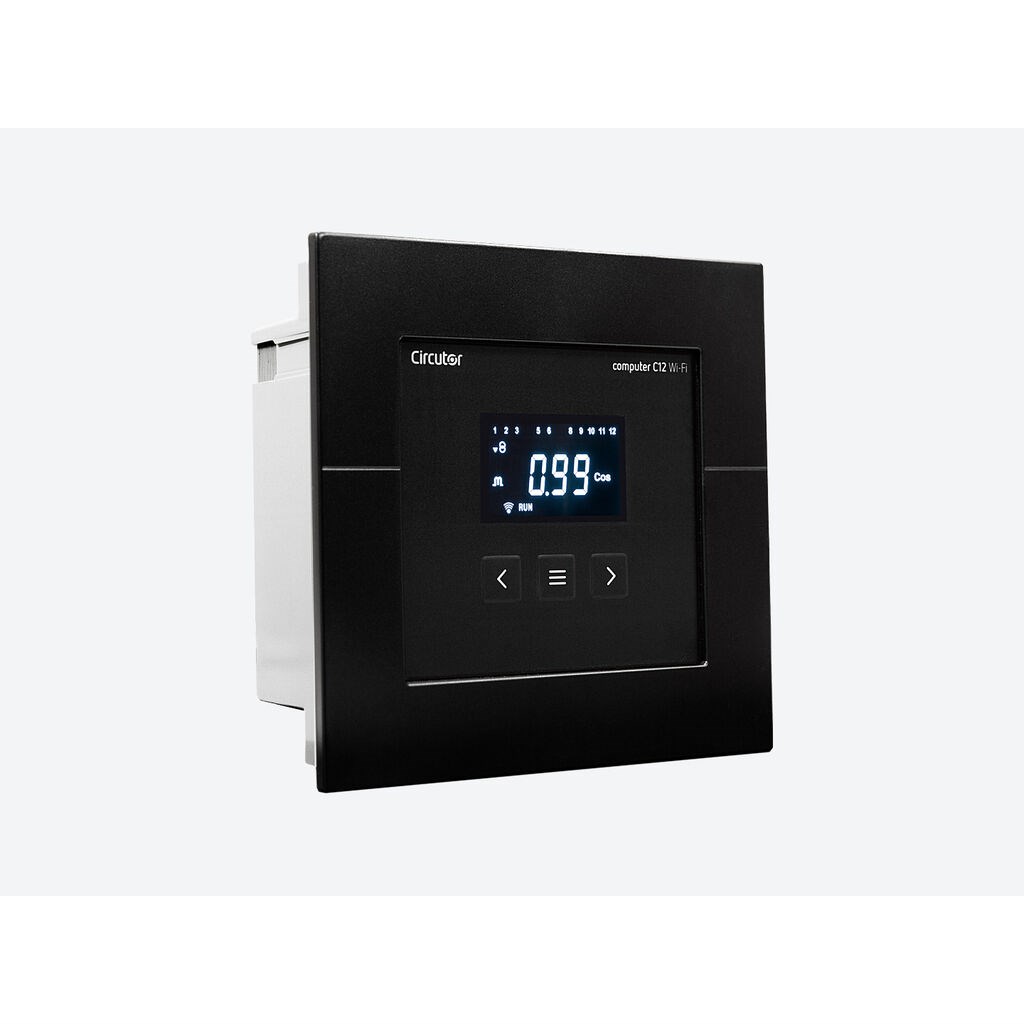

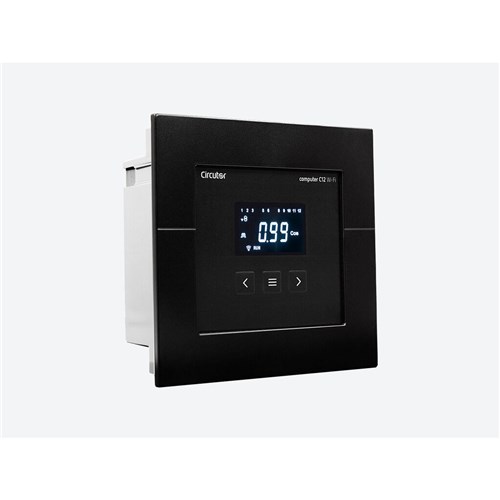

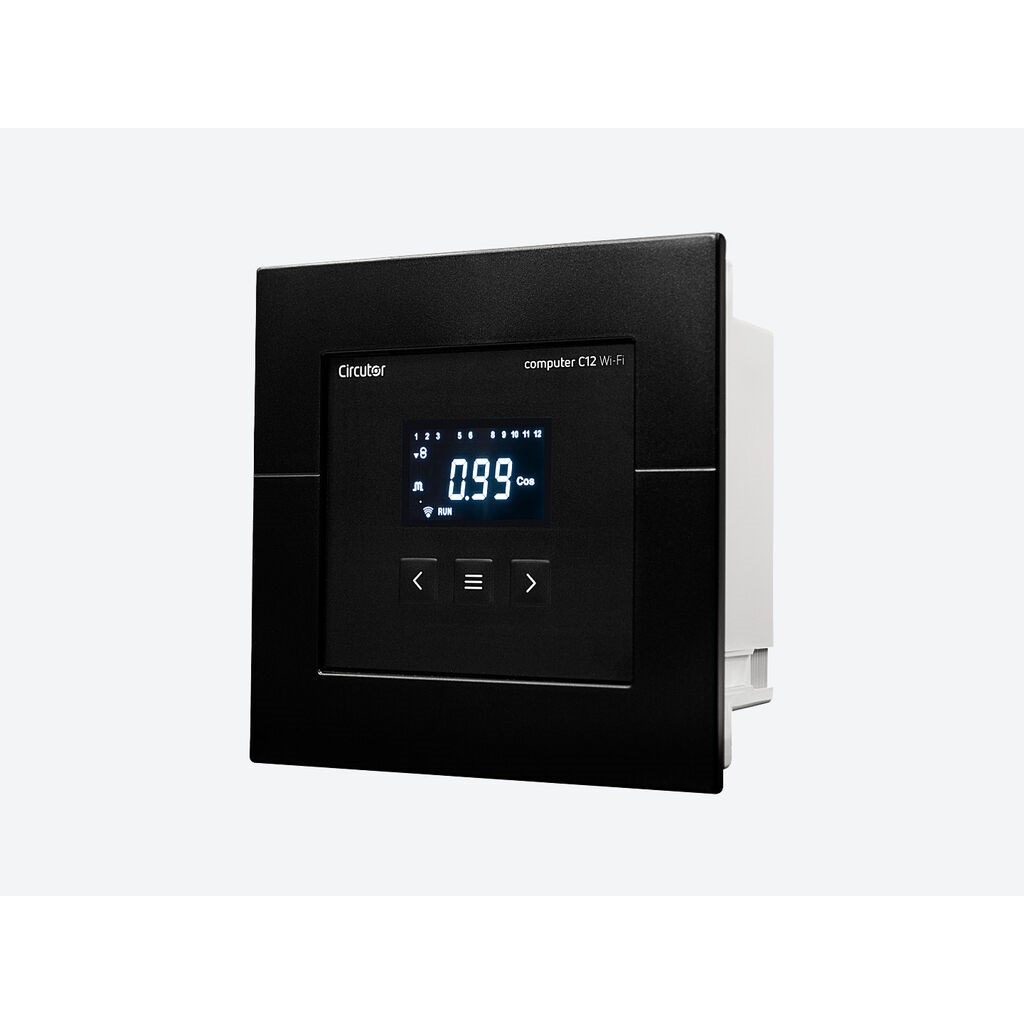

CIRCUTOR R14842 PFC C12 WIFI 12-STEP WIFI REGULATOR computer C12 Wi-Fi
