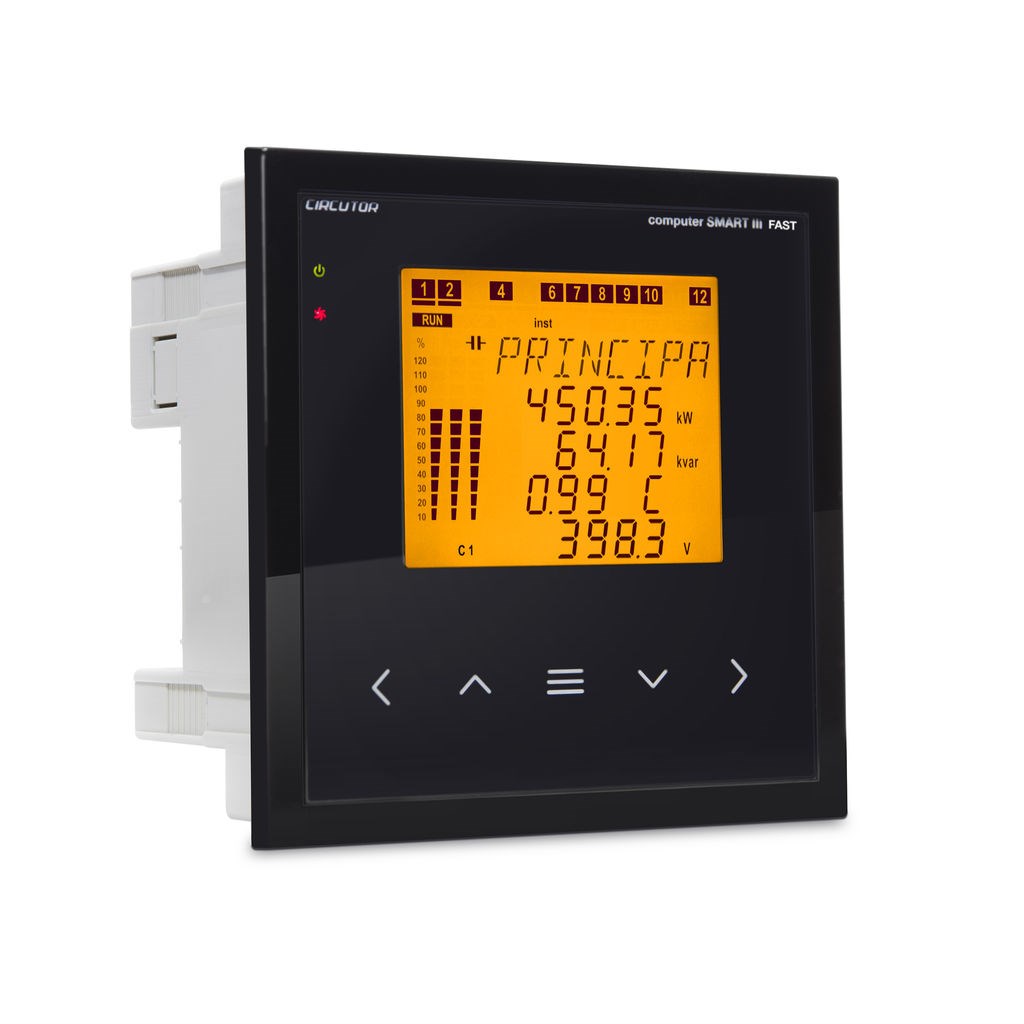

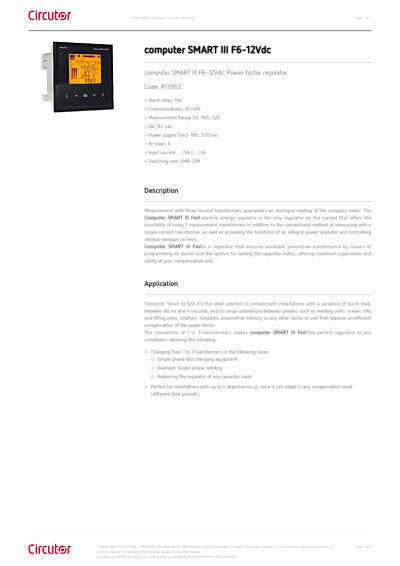

Measurement Range
0.01 … 1.5 A
|
Nominal Current (In)
.../5A to .../1A
|
Nominal Voltage (AC Primary)
100 ... 520 V ~
|
|
|
Rated Frequency
50 … 60 Hz
|
Nominal Voltage
230 V Ph-N, 400 V Ph-Ph
|
Electrical Life
30 x 10³ ciclos
|
Mechanical Life
5 x 106 Cycles
|
|
Installation Category (AC Supply)
CAT III 300 V
|
Electrical Safety, Maximum Height (M)
2000
|
Protection Class
IP 51 (Front), IP 31 (unmounted)
|
Reactive Energy Measurement (kVARh)
Class 1
|
Quantity (Relay Outputs)
2 (ventilador, alarma)
|
Max. Open Contact Voltage
1 kV
|
Max. Current (Relay Outputs)
1A
|
Max. Switching Capacity
2500 VA
|
Type (Transistor Outputs)
NPN
|
Pulse Output, Maximum Current
50 mA
|
Quantity (Transistor Outputs)
2
|
Quantity (Other Transistor Outputs)
6
|
Input/Output Insulation
Optoisolated
|
Max. Current (Other Transistor Outputs)
20 mA
|
Max. Voltage (Other Transistor Outputs)
12 ± 1 Vcc
|
Phase Current Measuring Range
1 … 120 % In
|
Minimum Current (Imin)
50 mA
|
Installation Category (Current Measurement)
CAT III 300 V
|
|
|
Minimum Measurement Voltage (Vstart)
20 V F-N, 35 V F-F
|
Frequency Measuring Range
45 … 65 Hz
|
Installation Category (Voltage Measurement)
CAT III 300 V
|
Sampling Frequency
45 … 65 Hz
|
Minimum Current Measurement (Istart)
10 mA
|
Secondary Nominal Current
0.003 A
|
Phase Voltage Measurement
0.5% ± 1 digit
|
Phase Current Measurement
0.5% ± 1 digit
|
Active Power Measurement (kW)
0.5% ± 2 digits
|
AC Power Consumption
10 … 15 VA
|
Max. Voltage (Transistor Outputs)
24 Vcc
|
Type (Other Transistor Outputs)
Voltage output (dc)
|
|
|
