Product Code: R11211

Specifications

General

Brand

Circutor

Series

DIR2

Electrical

Nominal Current (In) 0.25 A ~	Nominal Voltage (AC Primary) 400 V ~ ±10%	Rated Frequency 50 … 60 Hz
Electrical Life 10x10 4 maniobras	Mechanical Life 10x106 operations	Rated Thermal Current (Ith) 10 A
ETIM 9.0 Class EC002758	Electrical Safety, Insulation Double-insulated electric shock protection class II (IEC 61010-1)	Electrical Safety, Maximum Height (M) 2000
Protection Class IP 40	DC11 Ie/Ue 0.3 A / 110 V dc	AC11 Ie/Ue 10 A / 250 V ~
Permanent Overload (Per Transformer) 1.2 In	Consumption (Per Transformer) < 0.05 VA	Allowable Overload 1.2 In
C/K Trip Adjustment Range 0.15 … 2	Connection Delay Tc 5 s	Disconnection Delay Tr 2 s
AC Power Consumption < 3 VA

Dimensions & Physical Data

Depth 73 mm	Height 85 mm	Weight 0.1
Width 35 mm

Environmental

Relative Humidity (Without condensation)

95%

Working Temperature

-10 … +50 ºC

Safety, Standards & Compliance

Standards

EN 61010, EN 61000-3-2, EN 61000-3-3, EN 50081-2, EN 50082-1, EN 50082-2, EN 61000-4-2, EN 61000-4-4, EN 61000-4-8, EN 61000-4-5, EN 61000-4-11, UL 94

Certifications

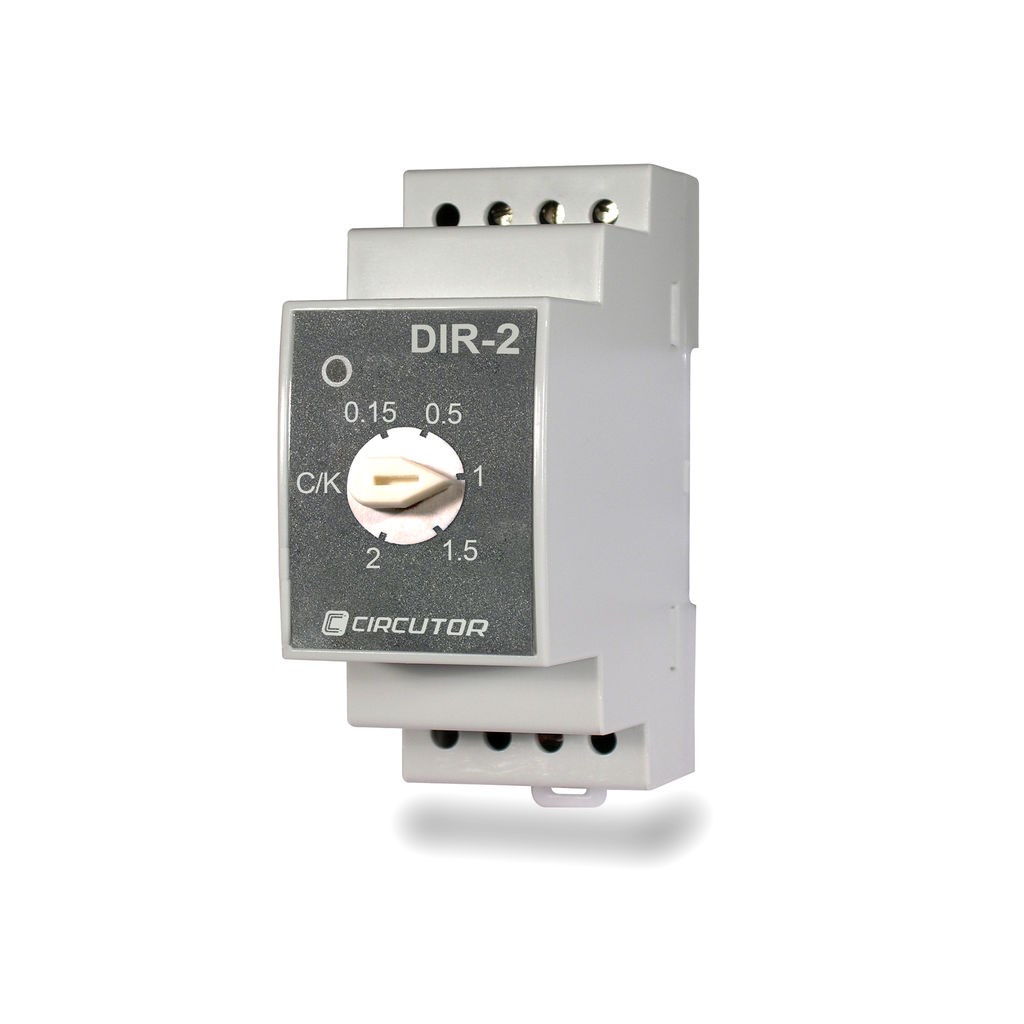

CIRCUTOR R11211 REACTIVE RELAY 400VAC 250 mA CONTACTOR DIR2

Product Code: R11211

Need full access to stock, pricing, and ordering?

Specifications

General

Electrical

Dimensions & Physical Data

Environmental

Safety, Standards & Compliance

Documents

IPD Product Catalogue V17

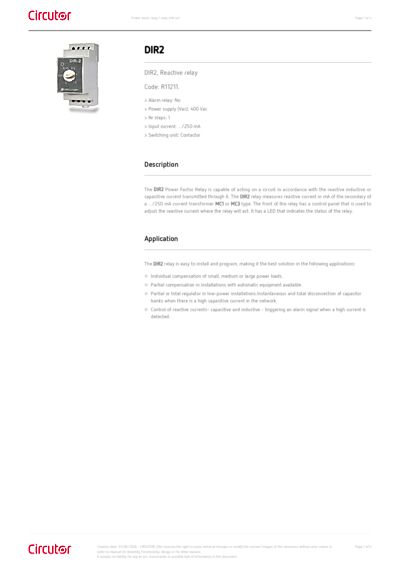

Circutor Datasheet
