Specifications

Brand

Circutor

Series

LRZ / LRBZ

Nominal Current (In) According to table. Other values on request	Rated Insulation Voltage (Ui) 4 kV	Voltage up to 1000 V~
ETIM 9.0 Class EC002565	Thermal Class class F (+155 ºC) On request: class H (+180 ºC)	Protection Class IP 00
Losses (W) 110 W	Max. Transient Current 2 In (1 min)	Inductance (mH) 0.4
Linearity (5% L) 1.5 In	Nominal Operating Current 76 A	Permanent Overload (Per Transformer) 1.7 In
Allowable Overload 1.7 In

Envelope

Conductor type: copper strip (or aluminium on request)

Depth 135 mm	Height 160 mm	Weight 12.5
Width 180 mm

Standards

UNE-EN 60289 , IEC 60076

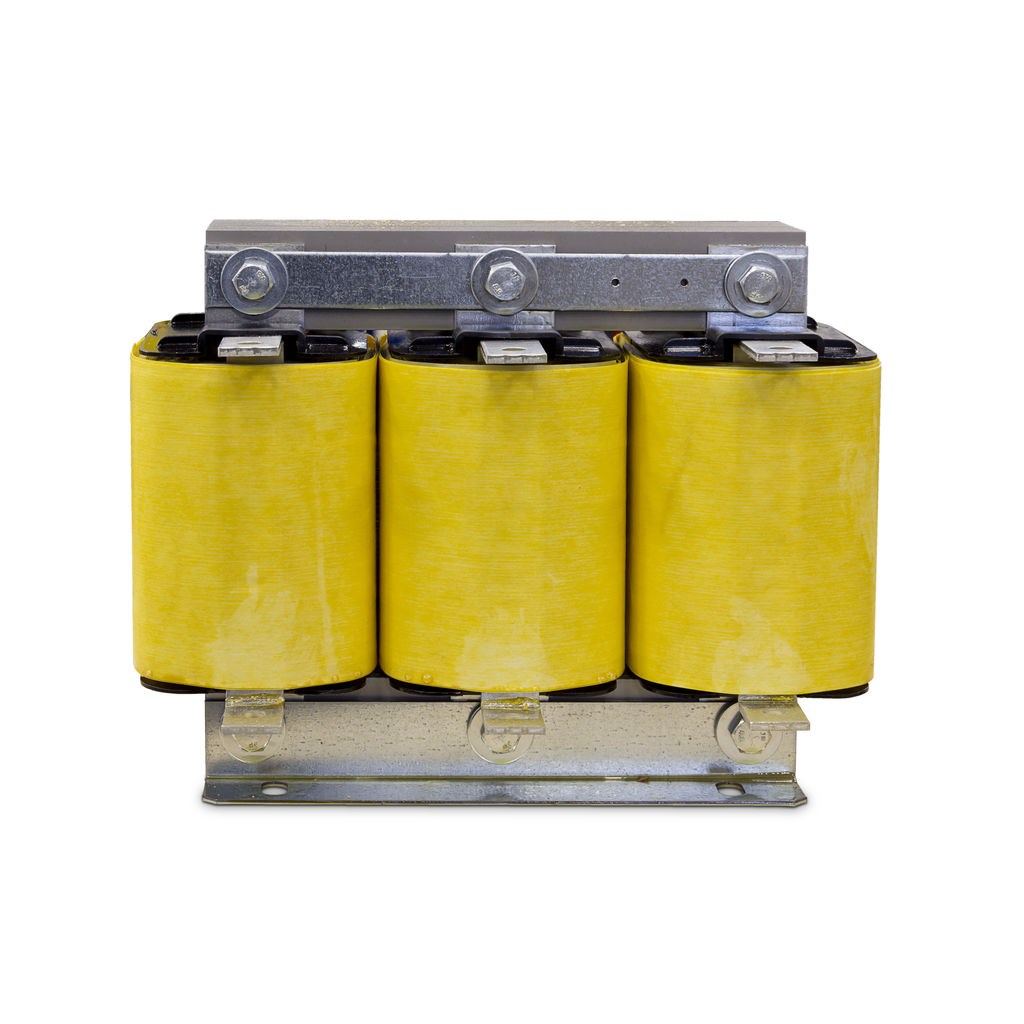

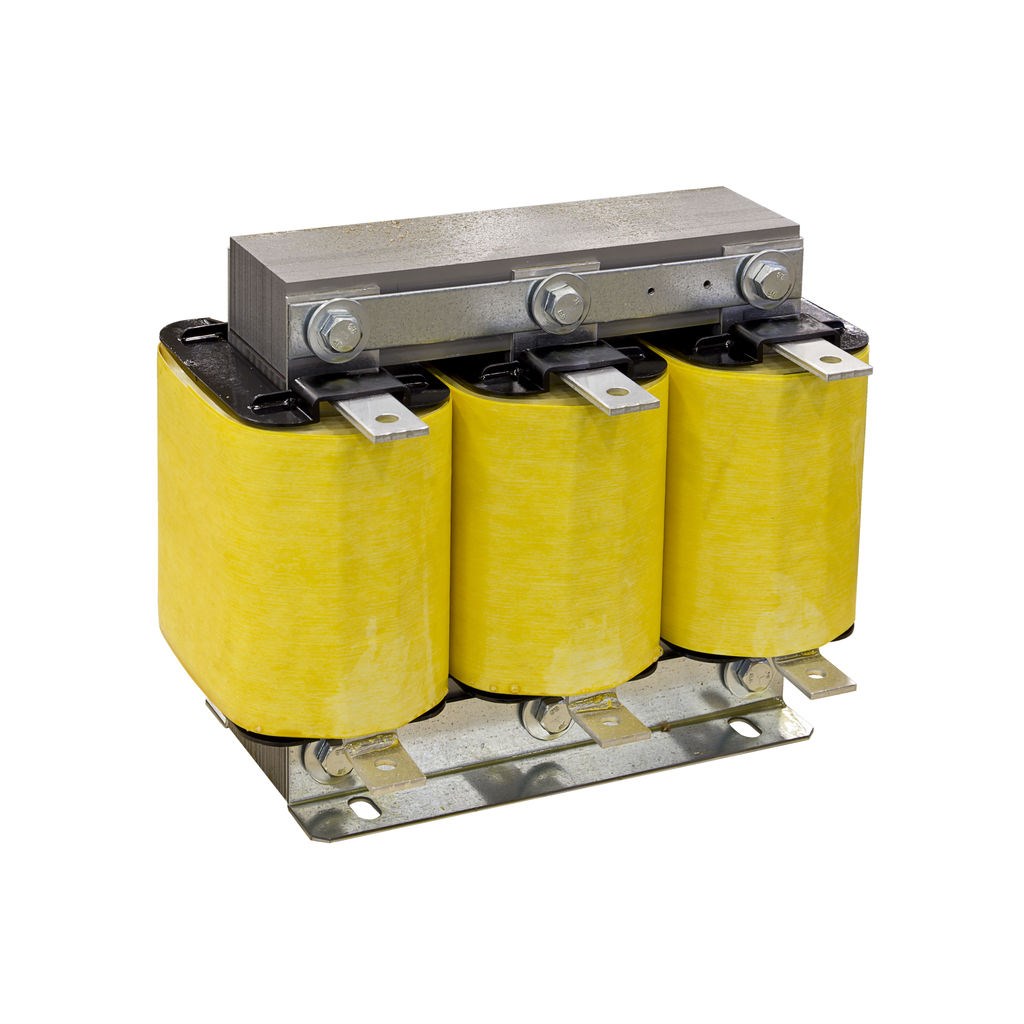

CIRCUTOR P7330E AC LINE REACTOR 0.4mH 76A 50Hz FILTER LRBZ 04-080
