Specifications

Brand

Circutor

Series

LRZ / LRBZ

Nominal Current (In) According to table. Other values on request	Rated Insulation Voltage (Ui) 4 kV	Voltage up to 1000 V~
ETIM 9.0 Class EC002565	Thermal Class class F (+155 ºC) On request: class H (+180 ºC)	Protection Class IP 00
Losses (W) 64 W	Max. Transient Current 2 In (1 min)	Inductance (mH) 0.67
Linearity (5% L) 1.5 In	Nominal Operating Current 47 A	Permanent Overload (Per Transformer) 1.7 In
Allowable Overload 1.7 In

Envelope

Conductor type: copper wire

Depth 110 mm	Height 197 mm	Weight 11
Width 180 mm

Standards

UNE-EN 60289 , IEC 60076

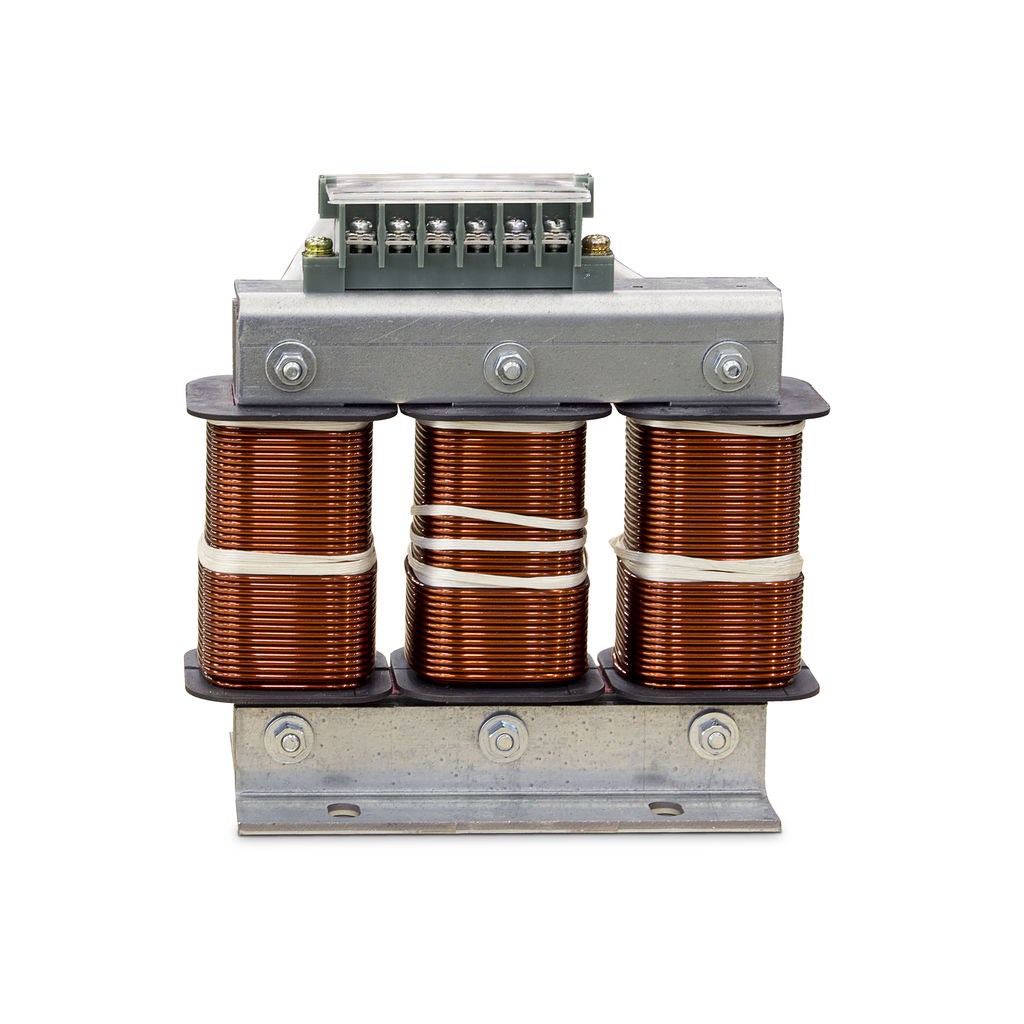

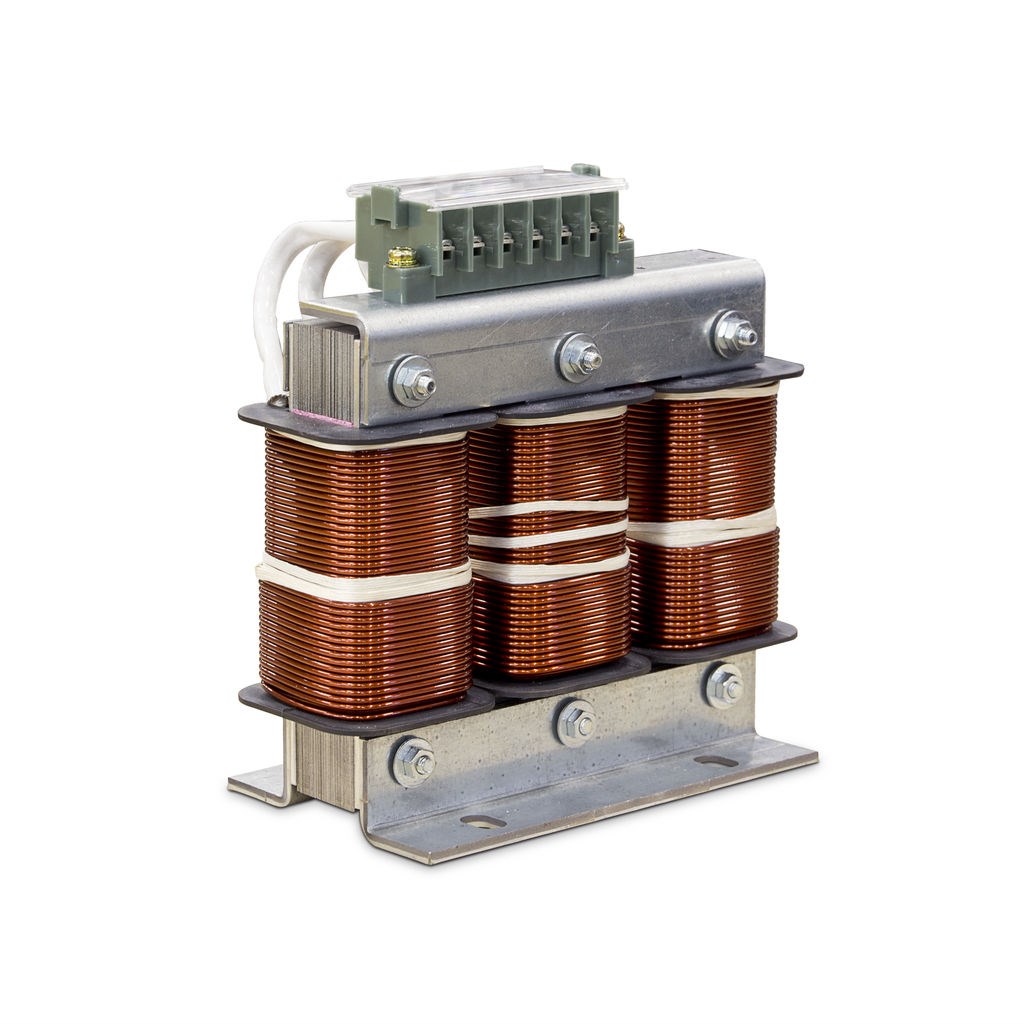

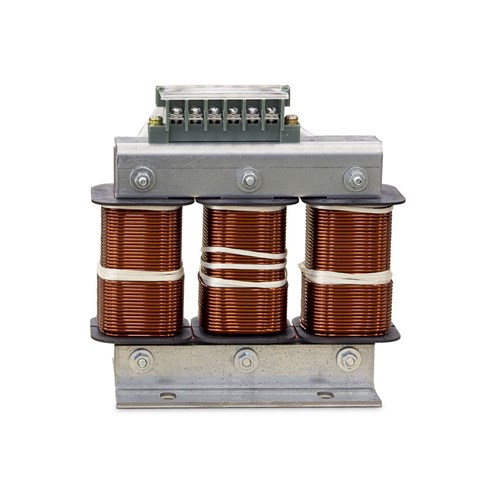

CIRCUTOR P7330B AC LINE REACTOR 0.67mH 47A 50Hz FILTER LRZ 04-050
