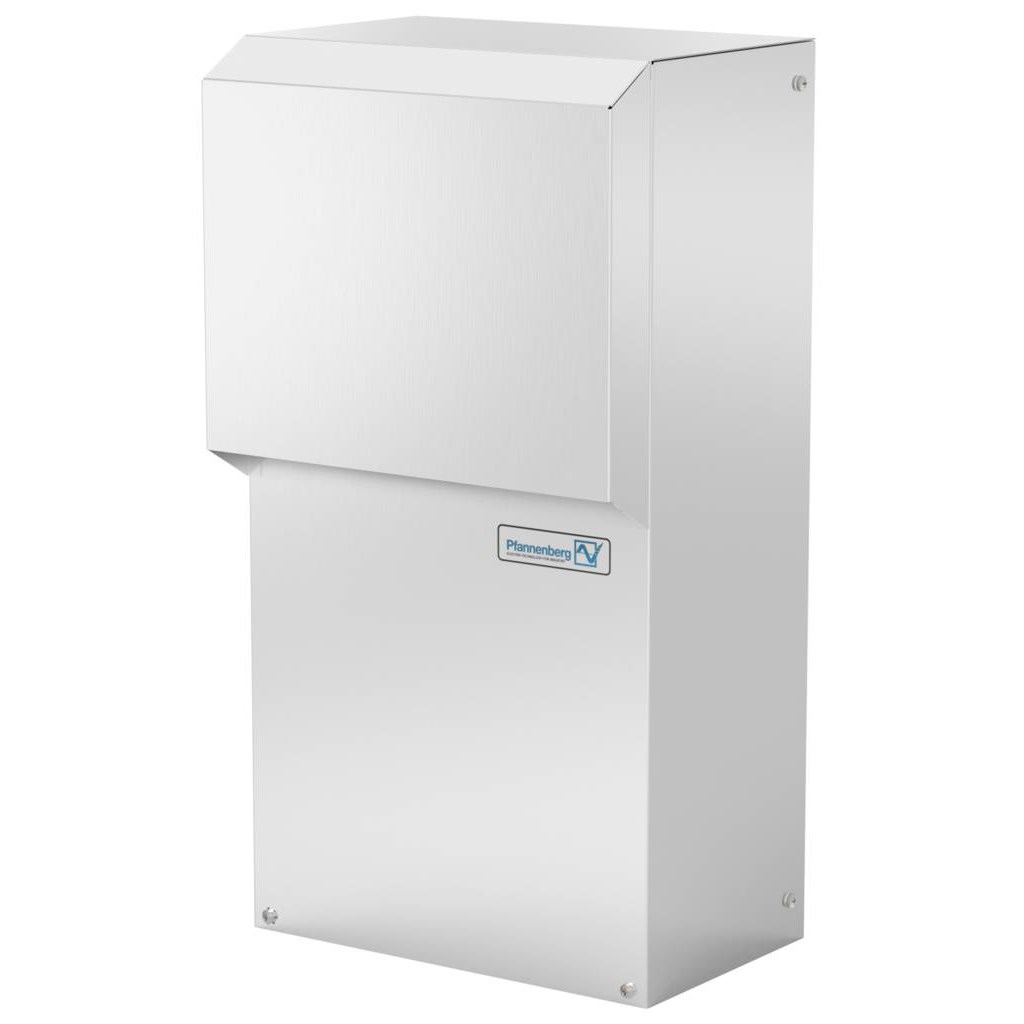

PFANNENBERG COOLING UNIT 230V 1.3kW RAL7035 IP56 DTS 3161

Product Code: 13385441355

In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
Pfannenberg
Series
DTS

Electrical

Power Consumption
795W
Rated Current (In)
4A
Rated Frequency
50Hz / 60Hz
Rated Voltage (Ur)
230V
Cooling Capacity
1235 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, powder-coated cover
Mounting
Wall/Side Mount
Unimpeded Airflow-Internal
300 m³/h
Cover Material
Electrostatically powder-coated steel

Dimensions & Physical Data

Depth
294mm
Height
748mm
Weight
40kg
Width
395mm

Environmental

Operating Temperature
0 to +55 °C (SC) / -40 to +55 °C (LAP)
IP Rating
NEMA 3R/4
Ambient Temperature
0 to +55 °C (SC)
Noise Level
< 70 dB(A)

Safety, Standards & Compliance

Standards and Approvals
NEMA 3R/4

Documents

IPD Product Catalogue V17
