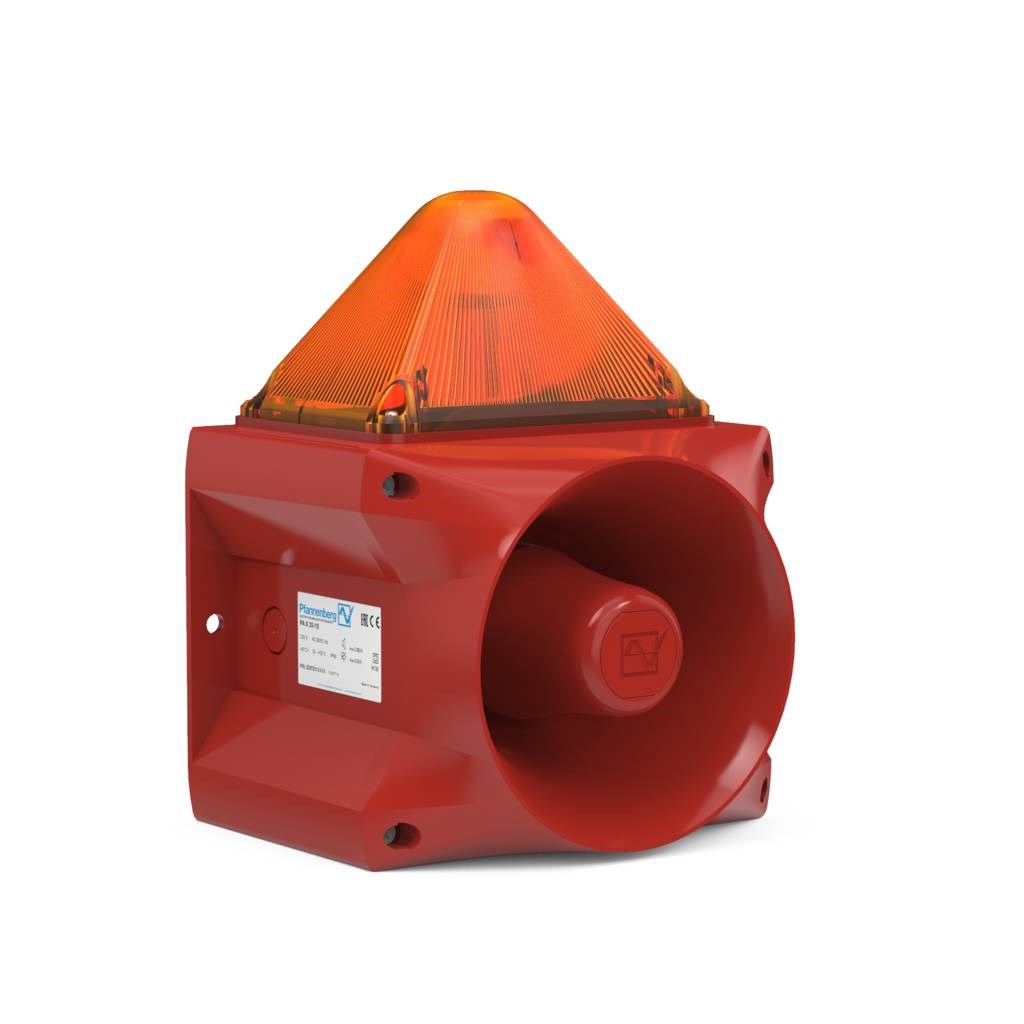

Pfannenberg 23372104000 Flashing Sounder 122 dB(A) 230 VAC 0.385 A IP66

Product Code: 23372104000

  • Compact size: 10x46x60 mm
  • Operates in -25 to 80°C range
  • Flange mounting for easy installation
  • Durable plastic housing
  • Meets EN IEC 60947 standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Flashing Sounder
Brand
Pfannenberg
Series
PA-X-20-15

Electrical

Rated Current (In)
0.385A
Rated Voltage (Ur)
230V AC
Terminal Type
Screw-Terminals

Mechanical

Functionality
Sounder/flashing light combinations
Housing Colour
Red/RAL 3000
Lamp Colour
Orange
Lamp Type
XENON
Loudness
122 dB(A)
Sound Frequency
2900Hz

Dimensions & Physical Data

Depth
181mm
Height
270mm
Mounting Hole Diameter (mm)
22.3mm
Weight
2.298kg
Width
214mm

Environmental

IP Rating
IP66
Ambient Temperature
-40°C to 55°C

Documents

IPD Product Catalogue V17
