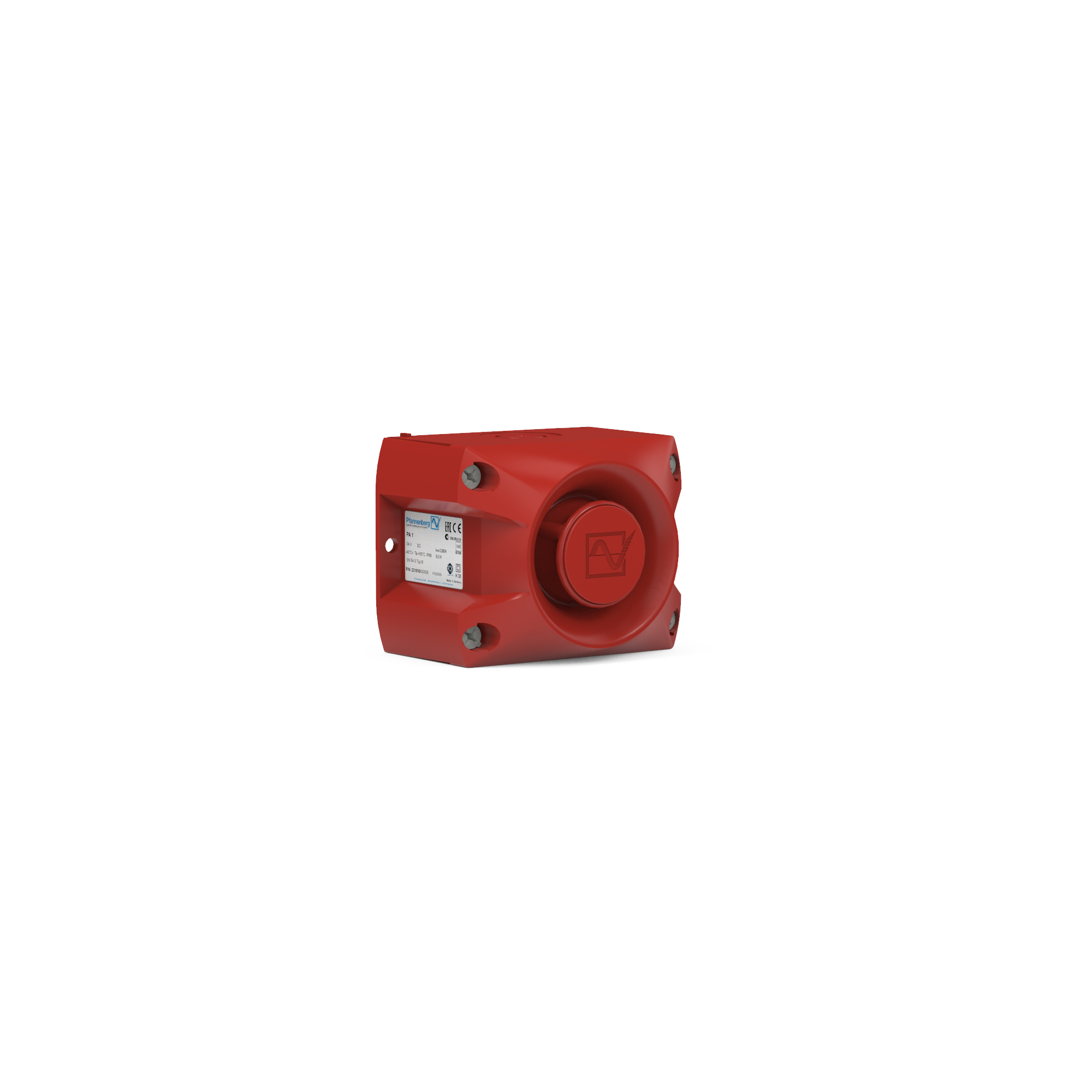

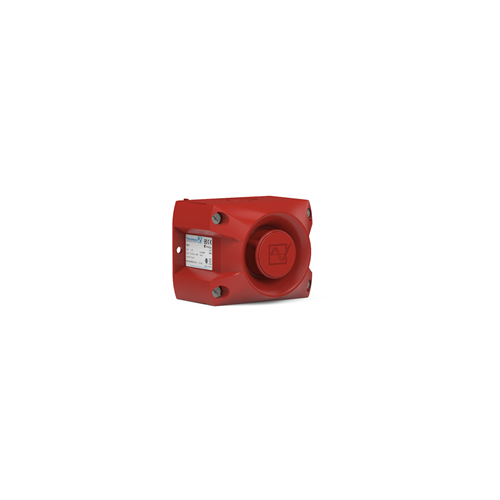

Pfannenberg 23310630001 Patrol Sounder 105 dB(A) 12, 24, 48 VDC 0.08 A IP66

Product Code: 23310630001

  • Operates at 230 VAC/VDC, 3 mA
  • Wide temp range: -30 to 70°C
  • Long-lasting: 100,000 hrs service life
  • Illuminated with white BA9S lamp
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Patrol Sounder
Brand
Pfannenberg
Series
PA-1

Electrical

Rated Current (In)
0.08A
Rated Voltage (Ur)
12, 24, 48 VDC
Terminal Type
Screw Terminals

Mechanical

Functionality
Multifunctional Sounds
Housing Colour
Red
Housing Material
PC / ABS blend
Loudness
105 dB(A)
Sound Frequency
2900Hz

Dimensions & Physical Data

Depth
81mm
Height
86mm
Mounting Hole Diameter (mm)
22.3mm
Weight
0.27kg
Width
110mm

Environmental

IP Rating
IP66
Ambient Temperature
-40°C to 55°C

Documents

IPD Product Catalogue V17
