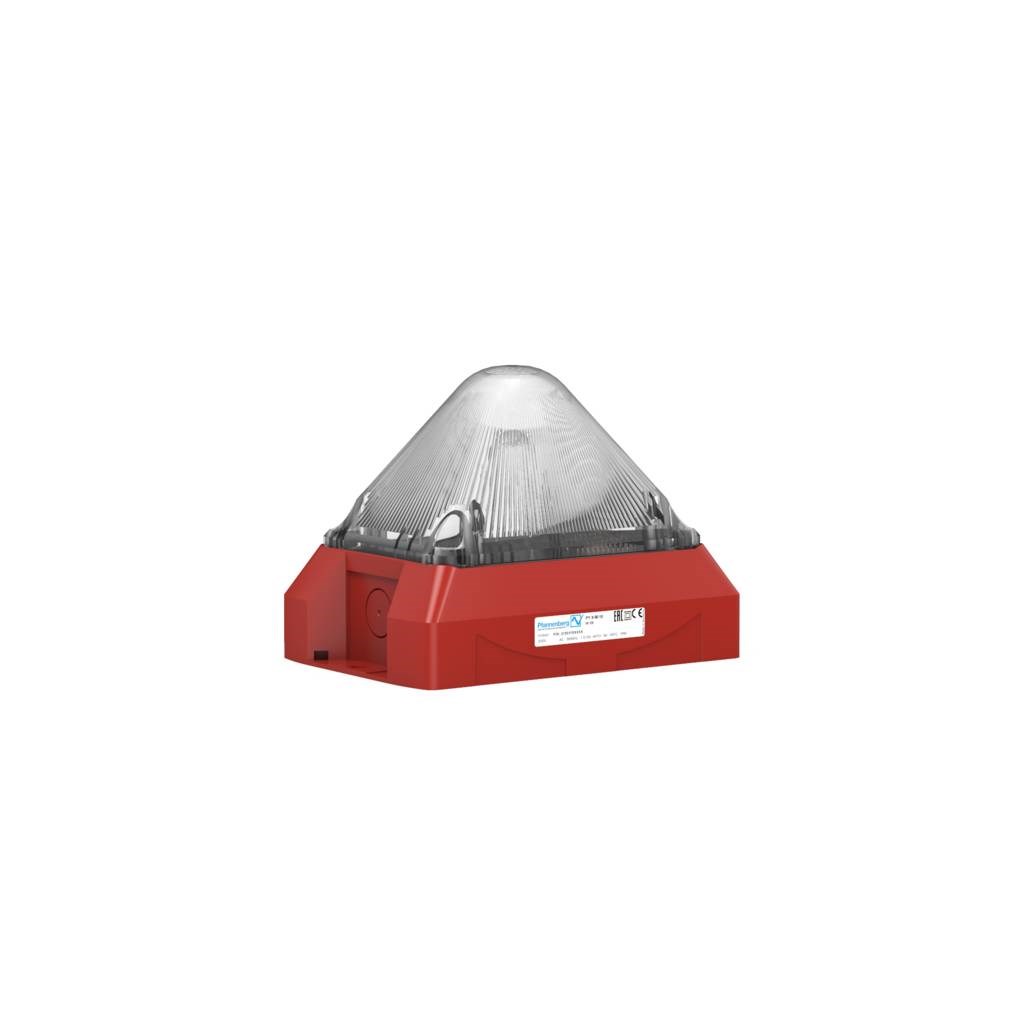

Pfannenberg 21551815055 Flashing light Red 12/24/48 VDC Xenon Bulb

Product Code: 21551815055

  • Suitable for 12 VAC/VDC, 20 mA applications
  • Operates in -30 to 70°C environments
  • Long-lasting service life of 100,000 hrs
  • Illuminated with a white BA9S lamp
  • Complies with IEC/EN and UL standards
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Flashing Light
Brand
Pfannenberg
Series
PYRA

Electrical

Rated Current (In)
0.54A
Rated Voltage (Ur)
12/24/48 VDC
Terminal Type
Screw Terminals

Mechanical

Housing Colour
Grey
Housing Material
PC / ABS
Illumination Mode
Flashing Light
Lamp Colour
Red
Lamp Type
Xenon - Pyramid

Dimensions & Physical Data

Depth
114mm
Height
124mm
Mounting Hole Diameter (mm)
22.3mm
Weight
0.42kg
Width
166mm

Environmental

IP Rating
IP66
Ambient Temperature
-40°C to 55°C
