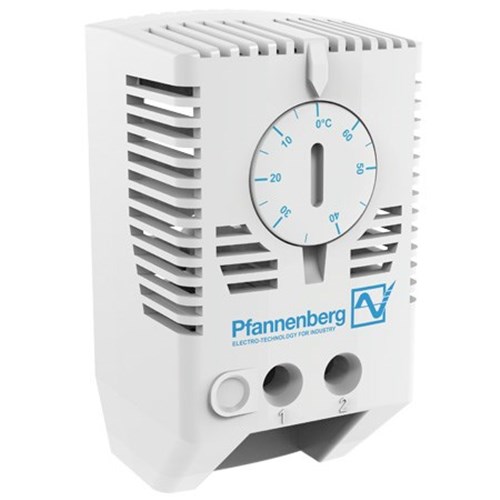

Pfannenberg 17121000010 Thermostat 0 to 60deg C 100-250VAC NO W/Spring Contact

Product Code: 17121000010

  • Compact size: 72x72x36 mm
  • Wide voltage range: 100-250 VAC
  • Operates in extreme temps: -40 to 80°C
  • NO spring contact for reliable switching
  • Adjustable temp range: 0 to 60°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermostat
Brand
Pfannenberg
Series
FLZ 500

Electrical

Contact Configuration
N.O. with spring contact
Rated Current
10 A 15 A
Rated Voltage
240 V AC 120 V AC

Mechanical

Cable Cross Section
0.5 to 2.5 mm²

Dimensions & Physical Data

Depth
36 mm
Height
72 mm
Weight
110 g
Width
40 mm

Environmental

Operating Temperature
–40 °C - +80 °C

Safety, Standards & Compliance

Standards and Approvals
CE, cURus

Documents

IPD Product Catalogue V17
