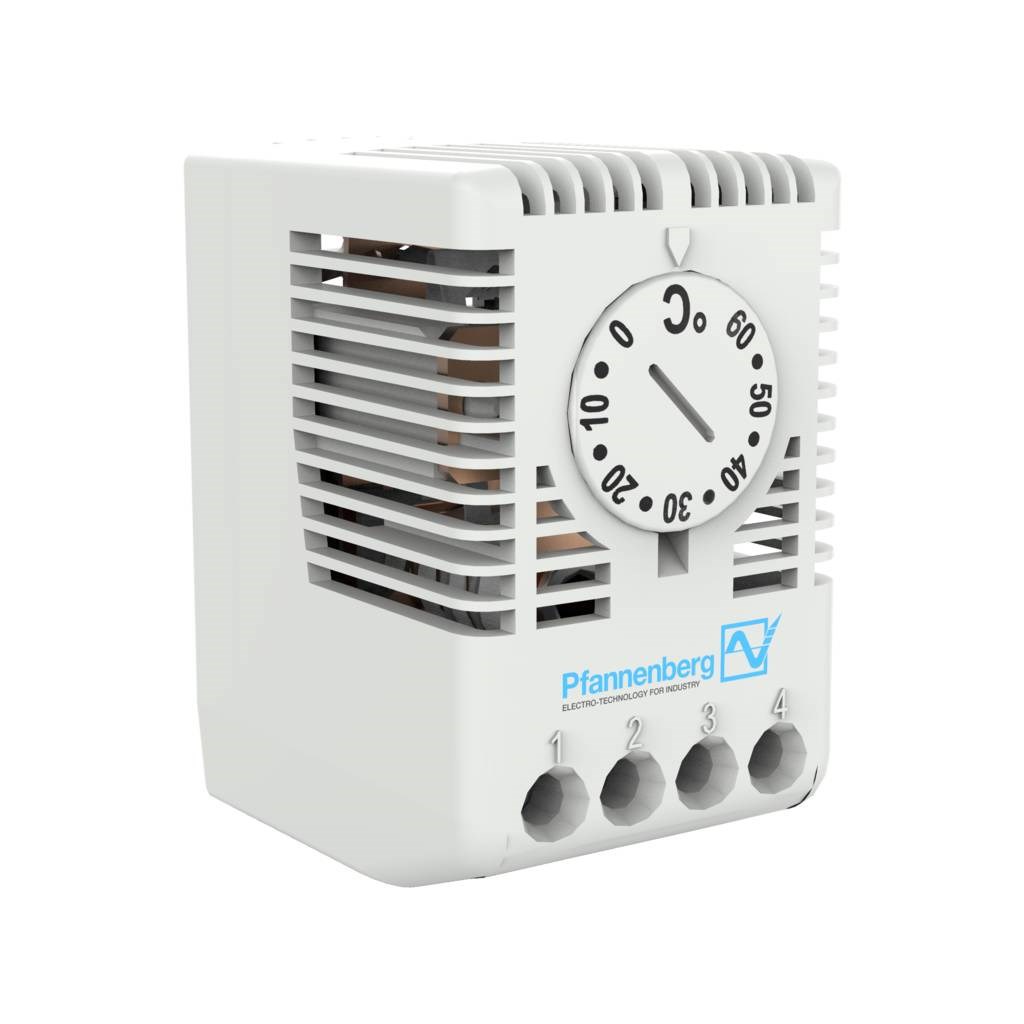

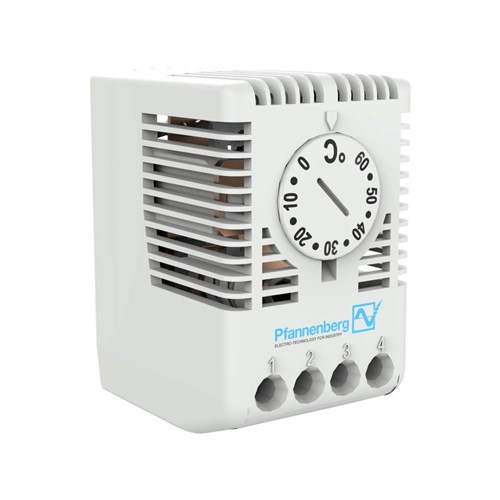

Pfannenberg 17121000003 Thermostat 20 to 40deg C 120VAC NO W/Spring Contact

Product Code: 17121000003

  • Thermostat & Hygrostat combo
  • Operates at 120 VAC, 50/60 Hz
  • Compact size: 59.5 x 59.5 x 47.5 mm
  • Light Grey RAL 7035 finish
  • Wide temp range: -40 to 80°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermostat
Brand
Pfannenberg
Series
FLZ 500

Electrical

Contact Configuration
N.O. with spring contact
Rated Current
10 A 15 A
Rated Voltage
240 V AC 120 V AC

Mechanical

Cable Cross Section
0.5 to 2.5 mm²
Colour
RAL 7035

Dimensions & Physical Data

Depth
36 mm
Height
72 mm
Weight
50 g
Width
40 mm

Environmental

Operating Temperature
–40 °C - +80 °C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE

Documents

IPD Product Catalogue V17
