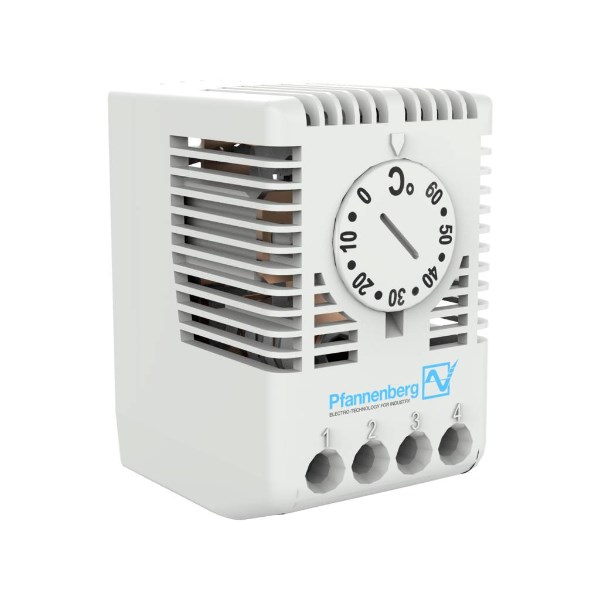

Pfannenberg 17111000004 Thermostat 240VAC NC W/Spring Contact

Product Code: 17111000004

  • Compact size: 59.5 x 59.5 x 47.5 mm
  • Operates in -40 to 80°C range
  • Light Grey RAL 7035 finish
  • Rated Voltage: 240 VAC, Frequency: 50/60 Hz
  • NC contact with spring for reliable switching
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermostat
Brand
Pfannenberg
Series
FLZ 500

Electrical

Contact Configuration
N.C. with spring contact
Rated Current
10 A 15 A
Rated Voltage
240 V AC 120 V AC

Mechanical

Cable Cross Section
0.5 to 2.5 mm²
Colour
RAL 7035

Dimensions & Physical Data

Depth
36 mm
Height
72 mm
Weight
50 g
Width
40 mm

Environmental

Operating Temperature
–40 °C - +80 °C
IP Rating
IP20

Safety, Standards & Compliance

Standards and Approvals
CE

Documents

IPD Product Catalogue V17
