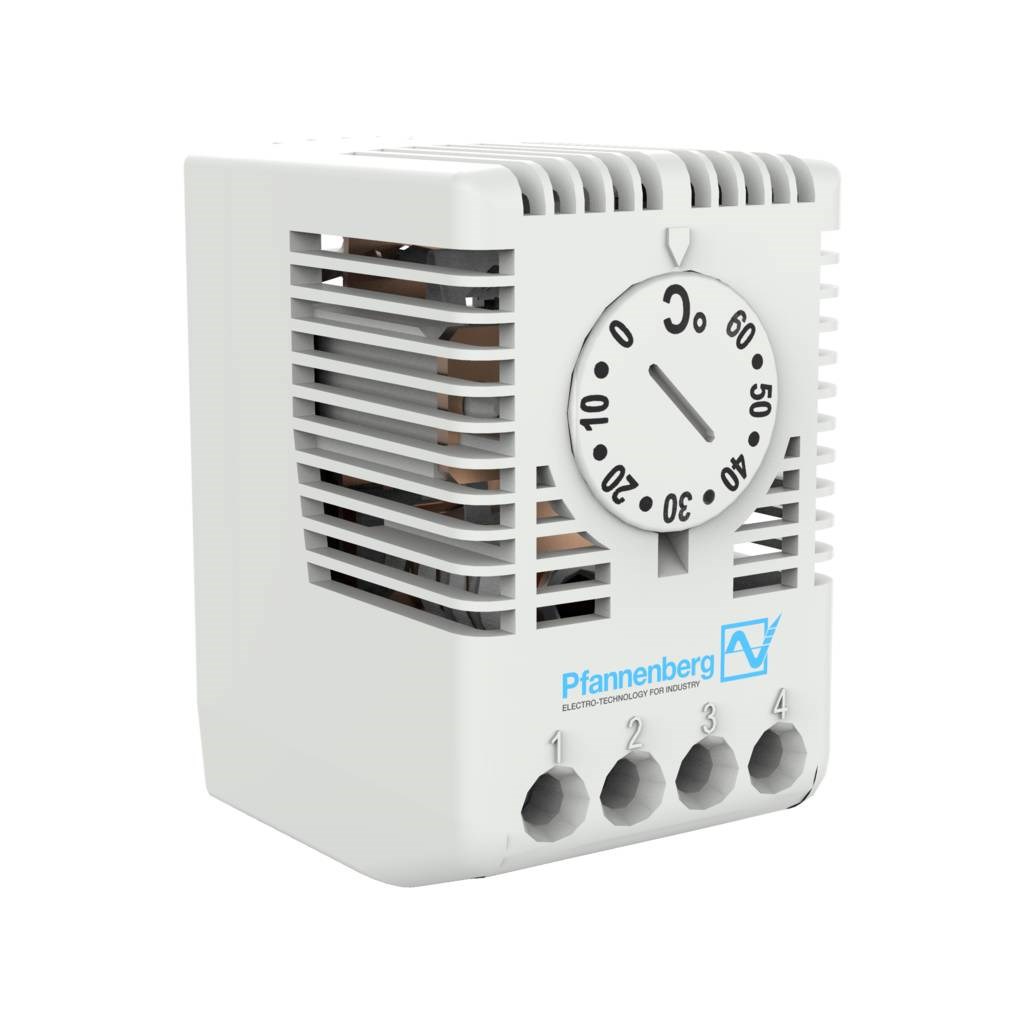

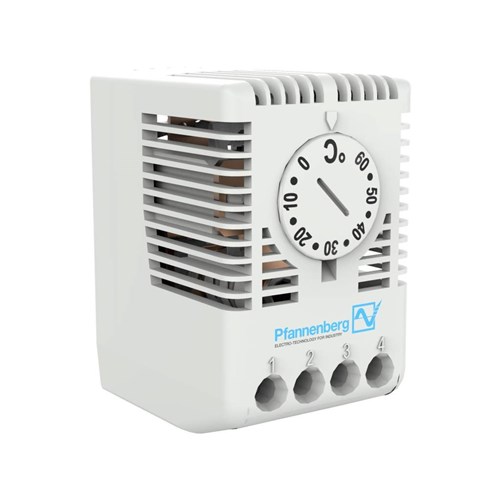

Pfannenberg 17105000000 Thermostat 0 to 60deg C 100-250VAC Change Over W/Spring Contact

Product Code: 17105000000

  • Suitable for 100-250 VAC, 50/60 Hz systems
  • Compact size: 59.5 x 59.5 x 47.5 mm
  • Operates in -40 to 80°C environments
  • Light Grey RAL 7035 colour finish
  • Change Over with Spring Contact
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Thermostat
Brand
Pfannenberg
Series
FLZ 500

Electrical

Contact Configuration
Changeover with spring contact
Rated Current
NC: 10 A NO: 5 A
Rated Voltage
NC/ NO: 100–250 V AC

Mechanical

Cable Cross Section
0.5 to 2.5 mm²
Colour
RAL 7035

Dimensions & Physical Data

Depth
47.5 mm
Height
59.5 mm
Weight
75 g
Width
37 mm

Environmental

Operating Temperature
0 °C - +60 °C

Safety, Standards & Compliance

Standards and Approvals
CE, GOST, UKCA, UL (recognized)

Documents

IPD Product Catalogue V17
