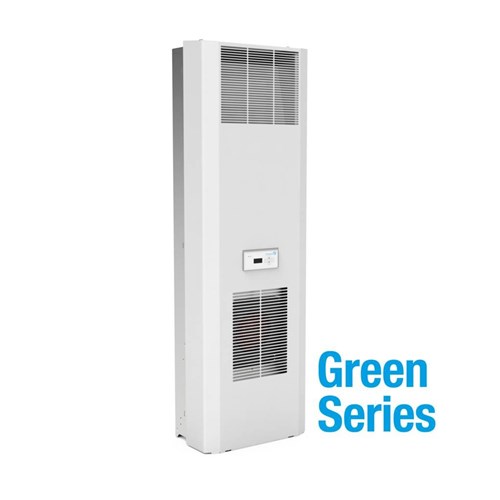

PFANNENBERG COOLING UNIT 400V 2.5kW RAL7035 IP54 DTI 6501

Product Code: 13896512055

  • 2500 W cooling capacity for efficient performance
  • IP54 rated for dust and water protection
  • Operates at 400 VAC with a frequency of 50/60 Hz
  • Door/side mounting flexibility
  • Made from durable galvanized sheet steel
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
Pfannenberg
Series
DTI

Electrical

Power Consumption
1048/1247W
Rated Current (In)
2.49 / 2.18A
Rated Frequency
50Hz / 60Hz
Rated Voltage (Ur)
400/460V
Cooling Capacity
2500 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, electrostatically powder-coated cover
Mounting
DTI – Door/Side, Partially Recessed Mounting
Unimpeded Airflow-Internal
935 m³/h
Cover Material
Electrostatically powder-coated steel

Dimensions & Physical Data

Depth
158mm
Height
1536mm
Weight
67kg
Width
485mm

Environmental

Operating Temperature
15°C to 55°C
IP Rating
IP54 (enclosure) / IP34 (surroundings)
Ambient Temperature
15°C to 55°C
Noise Level
< 65 dB(A)

Safety, Standards & Compliance

Standards and Approvals
EN 60529 (IP54/IP34)

Documents

IPD Product Catalogue V17
