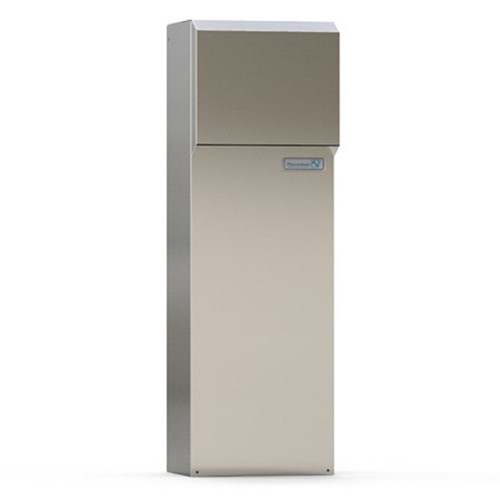

PFANNENBERG COOLING UNIT 230V 2kW IP56 DTS 3281

Product Code: 13385741158

  • High cooling capacity of 1900 W
  • Energy-efficient with 1425 W power use
  • Durable galvanized sheet steel construction
  • IP56 protection for harsh environments
  • Quiet operation at less than 73 dBA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
Pfannenberg
Series
DTS

Electrical

Power Consumption
1425W
Rated Current (In)
6.2A
Rated Frequency
50Hz / 60Hz
Rated Voltage (Ur)
230V
Cooling Capacity
1900/2000 W

Mechanical

Colour
Stainless Steel 304 Finish
Material
Galvanised sheet steel housing, Stainless Steel 304 cover
Mounting
Wall/Side Mount
Unimpeded Airflow-Internal
765 m³/h
Cover Material
Stainless Steel 304

Dimensions & Physical Data

Depth
269mm
Height
1209mm
Weight
63kg
Width
395mm

Environmental

Operating Temperature
0 to +55 °C (SC) / -40 to +55 °C (LAP)
IP Rating
NEMA 4X / IP56
Ambient Temperature
0 to +55 °C (SC) / -40 to +55 °C (LAP)
Noise Level
< 73 dB(A)

Safety, Standards & Compliance

Standards and Approvals
NEMA 4X, EN 60529 IP56
