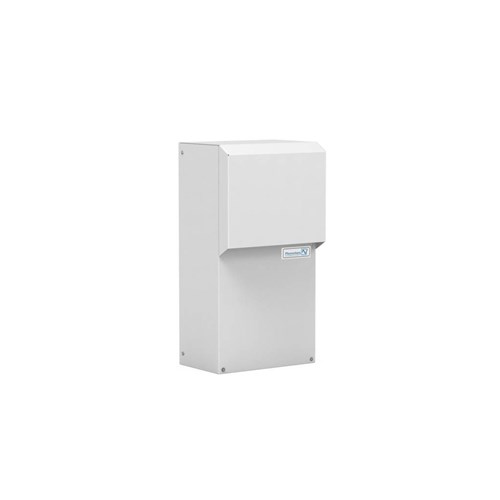

PFANNENBERG COOLING UNIT 230V 1.3kW IP56 DTS 3181

Product Code: 13385441178

  • Cooling capacity of 1235 W
  • Side mounting for ease of installation
  • IP56 protection against dust and water
  • Operates in -40 to 55°C conditions
  • Quiet operation at <70 dBA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
Pfannenberg
Series
DTS

Electrical

Power Consumption
795W
Rated Current (In)
4A
Rated Frequency
50Hz / 60Hz
Rated Voltage (Ur)
230V
Cooling Capacity
1235 W

Mechanical

Colour
Stainless Steel 304 Finish
Material
Galvanised sheet steel housing, Stainless Steel 304 cover
Mounting
Wall/Side Mount
Unimpeded Airflow-Internal
300 m³/h
Cover Material
Stainless Steel 304

Dimensions & Physical Data

Depth
294mm
Height
748mm
Weight
42kg
Width
395mm

Environmental

Operating Temperature
-40 to +55 °C (LAP)
IP Rating
NEMA 4X / IP56
Ambient Temperature
-40 to +55 °C (LAP)
Noise Level
< 70 dB(A)

Safety, Standards & Compliance

Standards and Approvals
NEMA 4X, EN 60529 IP56

Documents

IPD Product Catalogue V17
