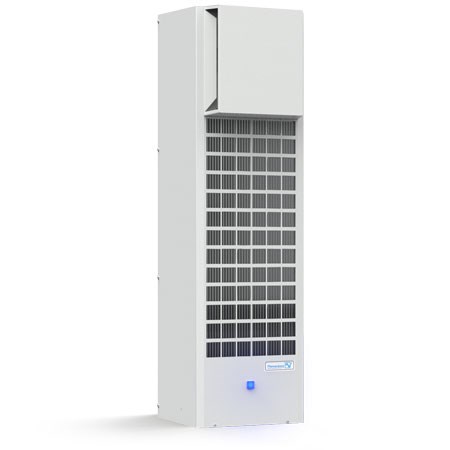

PFANNENBERG COOLING UNIT 400V 4963W RAL7035 IP56 DTS 3461

Product Code: 13385036355

  • Cooling capacity of 4963 W
  • High airflow: 2157 cu-m/h internal, 705 cu-m/h external
  • Operates at 460 VAC with IP56 protection
  • Side mounting in galvanized sheet steel
  • Suitable for ambient temps from -4 to 55°C
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
Pfannenberg
Series
DTS

Electrical

Power Consumption
1979W
Rated Current (In)
2.5A
Rated Frequency
50Hz / 60Hz
Rated Voltage (Ur)
400/460V
Cooling Capacity
4963 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, galvanised/powder-coated cover
Mounting
Wall/Side Mount
Unimpeded Airflow-Internal
2157 m³/h
Cover Material
Galvanised / electrostatically powder-coated steel

Dimensions & Physical Data

Depth
405mm
Height
1440mm
Weight
87kg
Width
406mm

Environmental

Operating Temperature
-4°C to 55°C
IP Rating
NEMA 3R/4
Ambient Temperature
-4°C to 55°C
Noise Level
< 69 dB(A)

Safety, Standards & Compliance

Standards and Approvals
NEMA 3R/4
