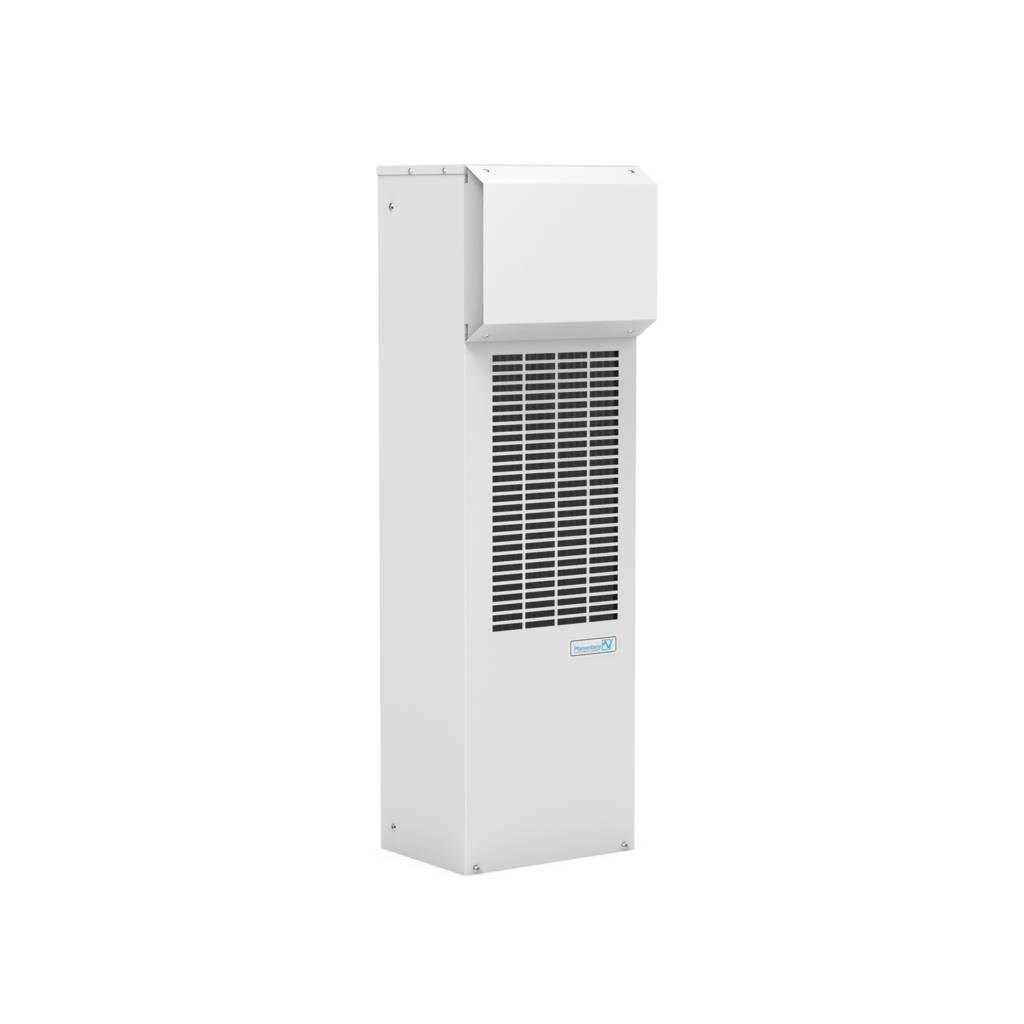

PFANNENBERG COOLING UNIT 230V 3.2kW LAP IN RAL7035 IP56 DTS 3285

Product Code: 13383839178

  • High cooling capacity: 3040 W, 3200 W
  • Efficient power use: 1600 W
  • IP56 protection for harsh environments
  • Operates in -40 to 55°C ambient temps
  • Quiet operation at <73 dBA noise level
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
Pfannenberg
Series
DTS

Electrical

Power Consumption
1600W
Rated Current (In)
7A
Rated Frequency
50Hz / 60Hz
Rated Voltage (Ur)
230V
Cooling Capacity
3040/3200 W

Mechanical

Colour
Stainless Steel 304 Finish
Material
Galvanised sheet steel housing, Stainless Steel 304 cover
Mounting
Wall/Side Mount
Unimpeded Airflow-Internal
1200 m³/h
Cover Material
Stainless Steel 304

Dimensions & Physical Data

Depth
301mm
Height
1347mm
Weight
68kg
Width
406mm

Environmental

Operating Temperature
-40 to +55 °C (LAP)
IP Rating
NEMA 4X / IP56
Ambient Temperature
-40 to +55 °C (LAP)
Noise Level
< 73 dB(A)

Safety, Standards & Compliance

Standards and Approvals
NEMA 4X, EN 60529 IP56
