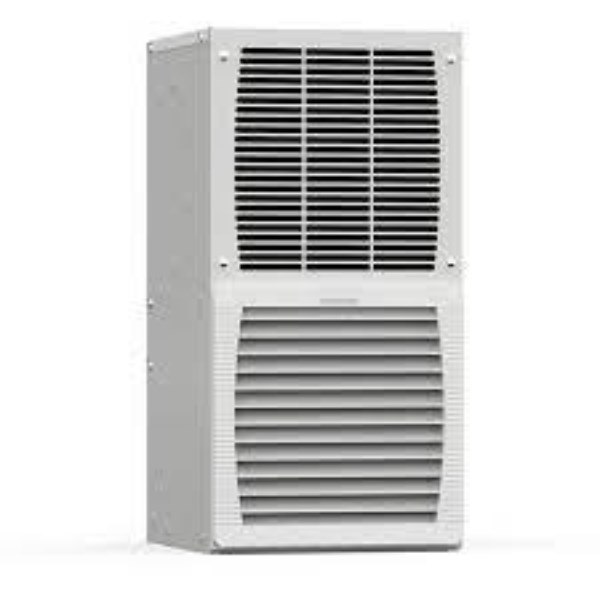

PFANNENBERG COOLING UNIT 230V 694W RAL7035 IP56 DTS 3061

Product Code: 13382341355

  • Cooling capacity of 694 W for efficient performance
  • IP54 protection ensures durability and safety
  • Operates at 230 VAC, 50/60 Hz for flexibility
  • Compact size: 274 mm x 515.2 mm x 255.3 mm
  • Light grey RAL 7035 finish in galvanized steel
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
PFANNENBERG
Series
DTS

Electrical

Power Consumption
663 W
Rated Current
4.1 A
Rated Frequency
50 Hz / 60 Hz
Rated Voltage
230 V
Cooling Capacity
694 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, powder-coated cover
Mounting
Wall/Side Mount
Unimpeded Airflow-Internal
325 m³/h
Cover Material
Galvanised / electrostatically powder-coated steel

Dimensions & Physical Data

Depth
274 mm
Height
515.2 mm
Weight
25 kg
Width
255.3 mm

Environmental

Noise (dB)
< 64 dB(A)
Operating Temperature
-4 to +55 °C (SC)
IP Rating
IP56 / NEMA 3R/4
Ambient Temperature
-4 to +55 °C (SC)

Safety, Standards & Compliance

Standards and Approvals
NEMA 3R/4, EN 60529 IP56

Documents

IPD Product Catalogue V17
