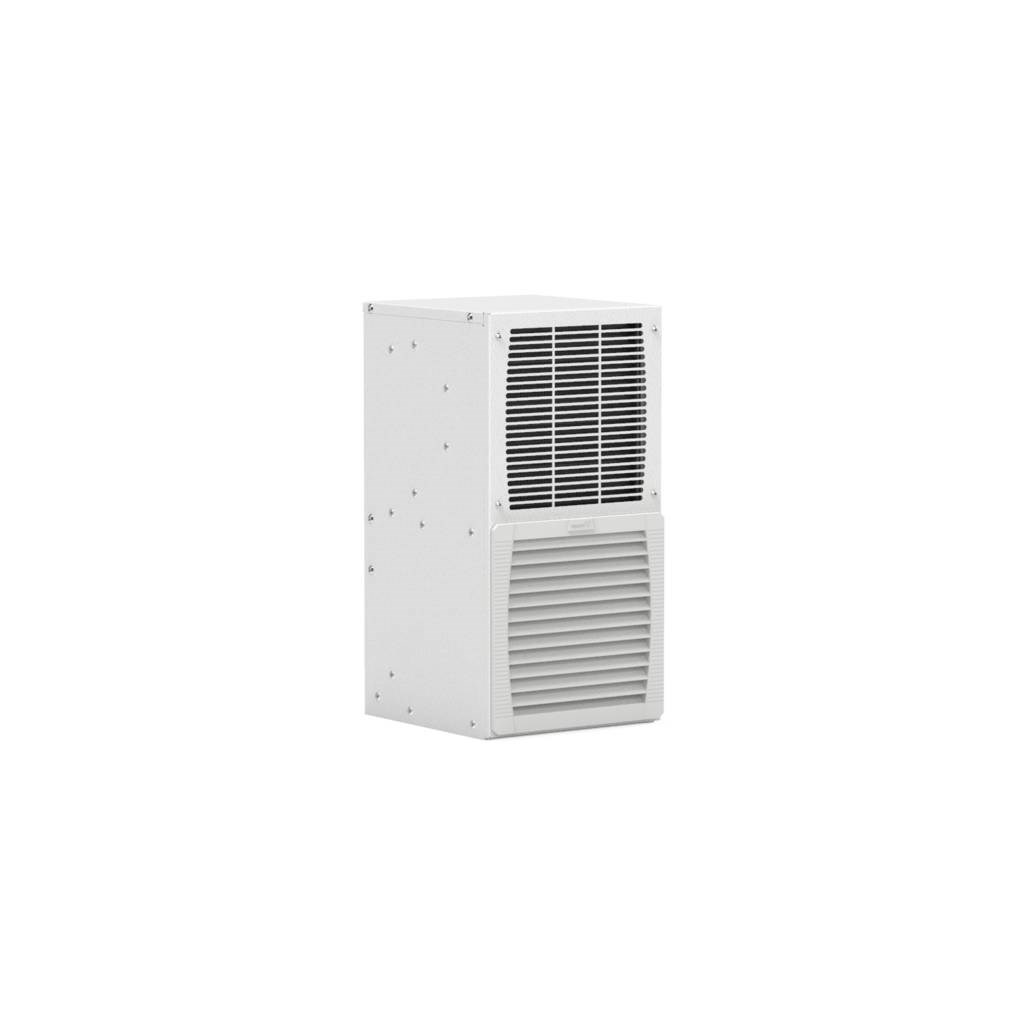

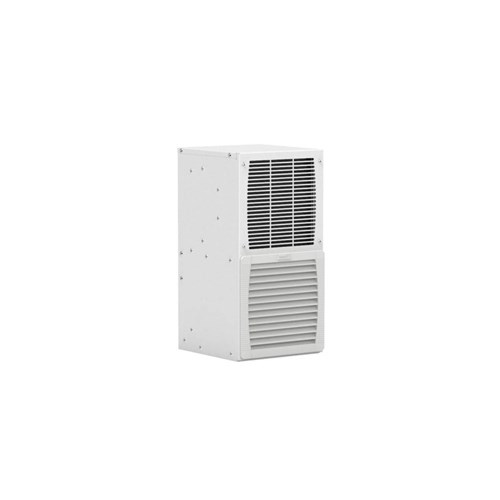

PFANNENBERG COOLING UNIT 230V 694W IP56 DTS 3081

Product Code: 13382341300

  • Cooling capacity of 694 W
  • IP54 protection rating
  • Operates at 230 VAC, 50/60 Hz
  • External airflow: 150 cu-m/h
  • Internal airflow: 325 cu-m/h
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
Pfannenberg
Series
DTS

Electrical

Power Consumption
663W
Rated Current (In)
4.1A
Rated Frequency
50Hz / 60Hz
Rated Voltage (Ur)
230V
Cooling Capacity
800 W

Mechanical

Colour
Stainless Steel 304 Finish
Material
Galvanised sheet steel housing, Stainless Steel 304 cover
Mounting
Wall/Side Mount
Unimpeded Airflow-Internal
325 m³/h
Cover Material
Stainless Steel 304

Dimensions & Physical Data

Depth
274mm
Height
515.2mm
Weight
25kg
Width
255.3mm

Environmental

Operating Temperature
-4 to +55 °C (SC)
IP Rating
NEMA 4X / IP56
Ambient Temperature
-4 to +55 °C (SC)
Noise Level
< 64 dB(A)

Safety, Standards & Compliance

Standards and Approvals
NEMA 4X, EN 60529 IP56
