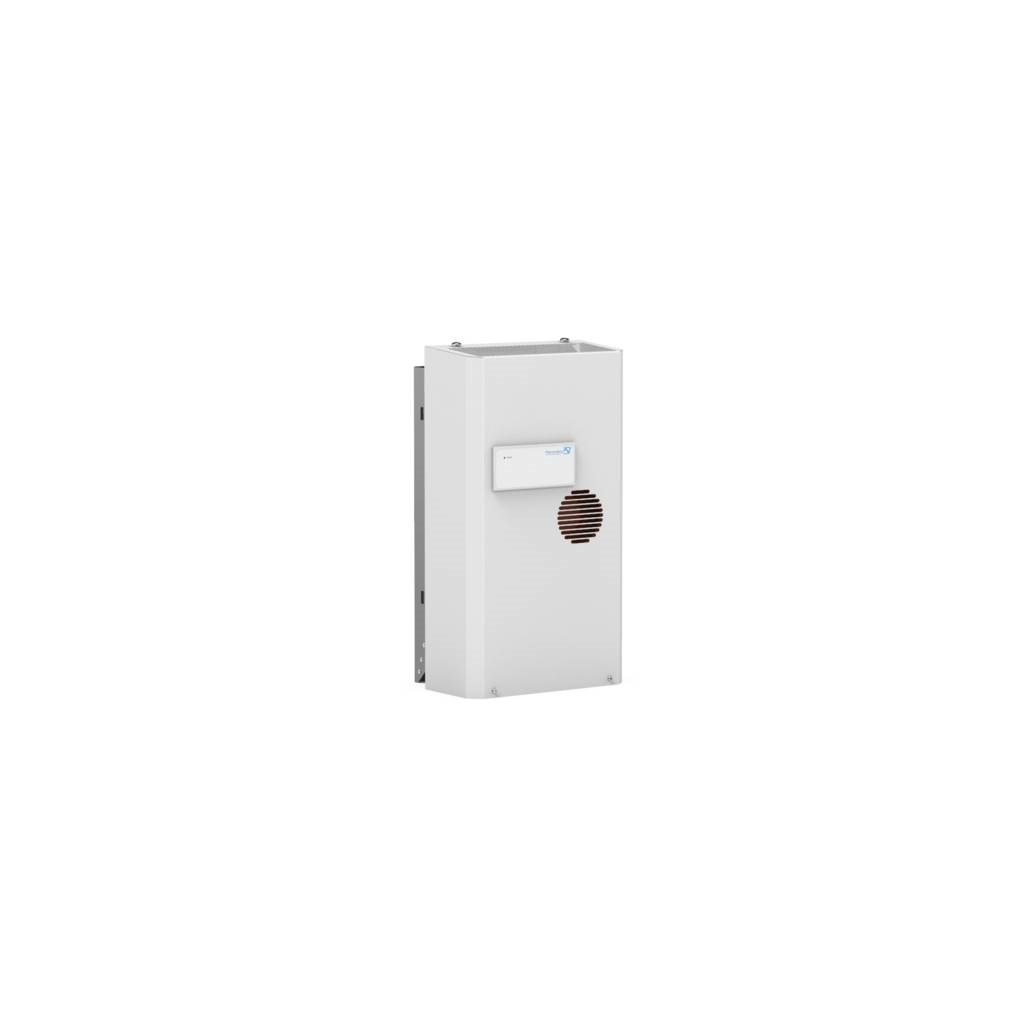

PFANNENBERG COOLING UNIT 400V 410W RAL7035 IP54 DTI 9031

Product Code: 13295049055

  • Cooling capacity of 510 W
  • Operates at 400 VAC, 50/60 Hz
  • IP54 protection rating
  • Recessed mounting design
  • Made from galvanized sheet steel
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
Pfannenberg
Series
DTI

Electrical

Power Consumption
297/354W
Rated Current (In)
1.59 / 1.53A
Rated Frequency
50Hz / 60Hz
Rated Voltage (Ur)
400V
Cooling Capacity
410/540 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, powder-coated cover
Mounting
DTI – Door/Side, Partially Recessed Mounting
Unimpeded Airflow-Internal
280 m³/h
Cover Material
Galvanised / electrostatically powder-coated steel

Dimensions & Physical Data

Depth
145mm
Height
562mm
Weight
26kg
Width
310mm

Environmental

Operating Temperature
15°C to 55°C
IP Rating
IP54 / IP34
Ambient Temperature
15°C to 55°C
Noise Level
63 dB(A)

Safety, Standards & Compliance

Standards and Approvals
EN 60529 (IP54/IP34)
