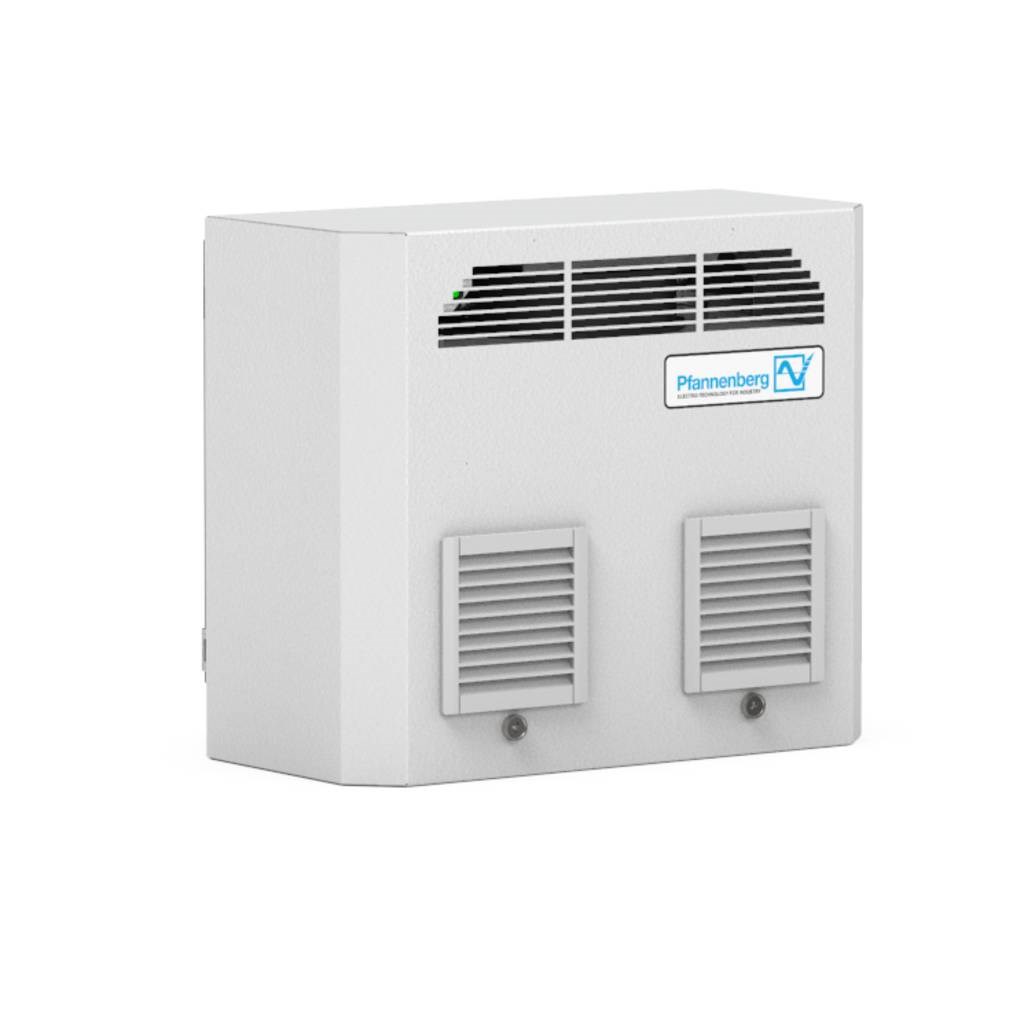

PFANNENBERG COOLING UNIT 230V 320W RAL7035 IP54 DTFI 9021

Product Code: 13293141055

  • Cooling capacity of 320-340 W
  • Efficient power use: 230-240 W
  • Airflow: 282 cu-m/h both internal & external
  • IP54 protection with galvanized steel build
  • Operates quietly at <62 dBA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
Pfannenberg
Series
DTFI

Electrical

Power Consumption
230/240W
Rated Current (In)
1.6A
Rated Frequency
50Hz / 60Hz
Rated Voltage (Ur)
230V
Cooling Capacity
320/340 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, powder-coated cover
Mounting
DTFI – Integrated/Recessed Mounting
Unimpeded Airflow-Internal
282 m³/h
Cover Material
Galvanised / electrostatically powder-coated steel

Dimensions & Physical Data

Depth
177mm
Height
326mm
Weight
16kg
Width
385mm

Environmental

Operating Temperature
15°C to 45°C
IP Rating
IP54 / IP34
Ambient Temperature
15°C to 45°C
Noise Level
< 62 dB(A)

Safety, Standards & Compliance

Standards and Approvals
EN 60529 (IP54/IP34)

Documents

IPD Product Catalogue V17
