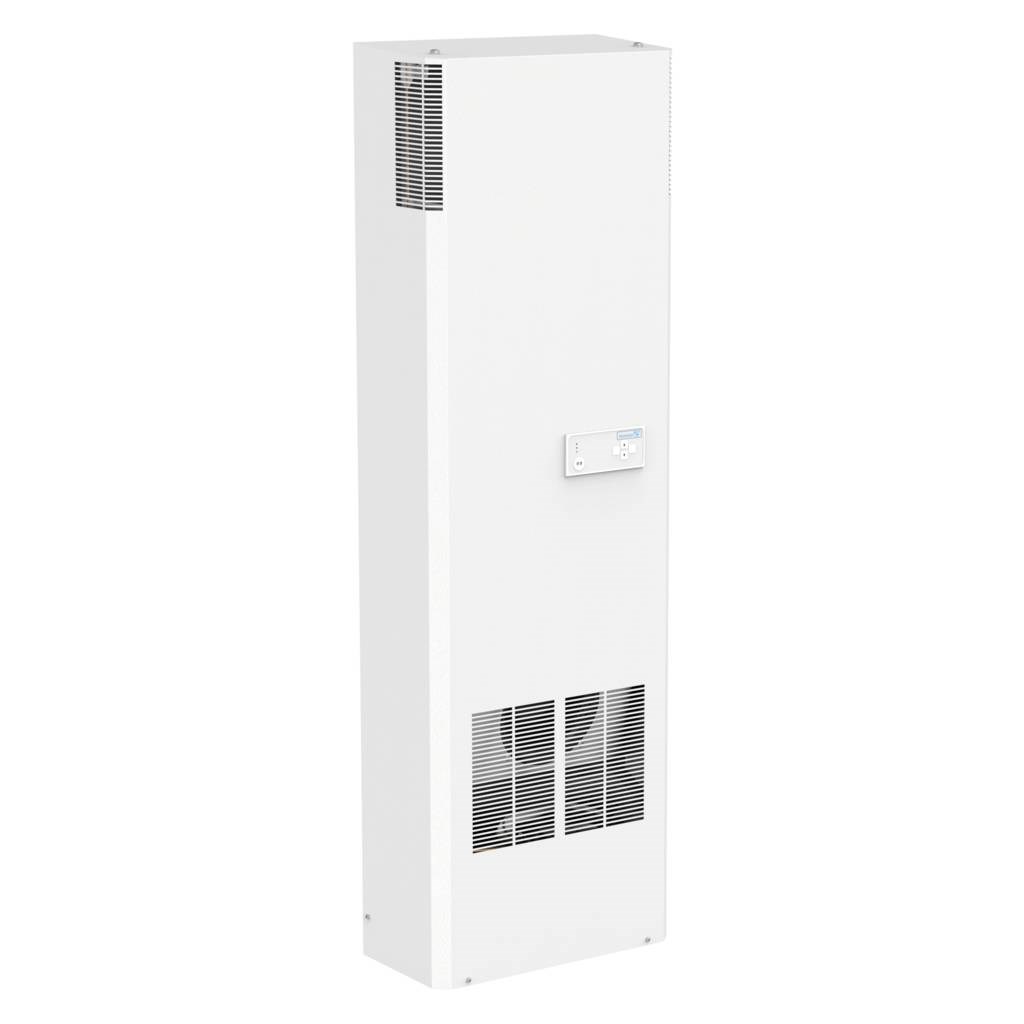

PFANNENBERG COOLING UNIT 230V 800W RAL7035 DTS 8041ES

Product Code: 13289241055

  • 1000W cooling capacity for efficient performance
  • Dual power consumption options: 740W, 910W
  • IP54 rated for robust protection
  • Door/side mounting flexibility
  • Quiet operation at <62 dBA noise level
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
Pfannenberg
Series
DTS

Electrical

Power Consumption
740/910W
Rated Current (In)
3.7 / 4.4A
Rated Frequency
50Hz / 60Hz
Rated Voltage (Ur)
230V
Cooling Capacity
1000 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, powder-coated cover
Mounting
DTS – External Door/Side Mounting
Unimpeded Airflow-Internal
890 m³/h
Cover Material
Galvanised / electrostatically powder-coated steel

Dimensions & Physical Data

Depth
180mm
Height
1539mm
Weight
51kg
Width
485mm

Environmental

Operating Temperature
15°C to 55°C
IP Rating
IP54 / IP34
Ambient Temperature
15°C to 55°C
Noise Level
< 62 dB(A)

Safety, Standards & Compliance

Standards and Approvals
EN 60529 (IP54/IP34)

Documents

IPD Product Catalogue V17
