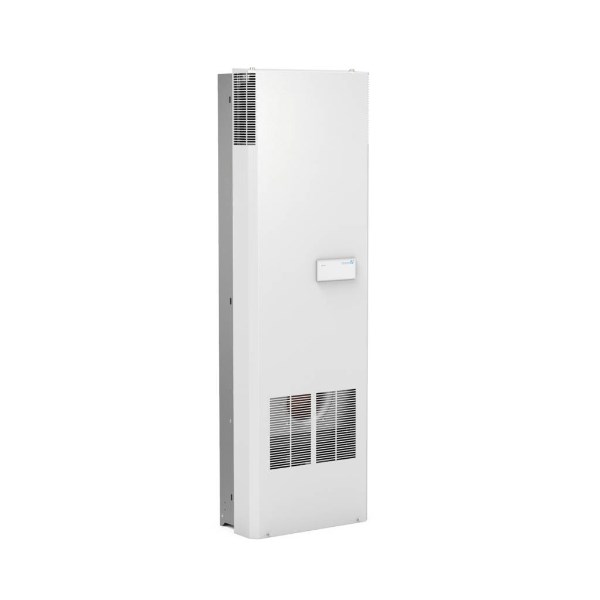

PFANNENBERG COOLING UNIT 400V 2.5kW RAL7035 IP54 DTI 9541

Product Code: 13269532055

  • Cooling capacity of 2500 W
  • Dual voltage: 400/460 VAC
  • IP54 protection rating
  • Door/side mounting flexibility
  • Quiet operation <65 dBA
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
PFANNENBERG
Series
DTI

Electrical

Power Consumption
1140/1450 W
Rated Current
3.5 / 3.9 A
Rated Frequency
50 Hz / 60 Hz
Rated Voltage
400/460 V
Cooling Capacity
2500 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, powder-coated cover
Mounting
DTI – Door/Side, Partially Recessed Mounting
Unimpeded Airflow-Internal
890 m³/h
Cover Material
Electrostatically powder-coated steel

Dimensions & Physical Data

Depth
120 mm
Height
1536 mm
Weight
67 kg
Width
485 mm

Environmental

Noise (dB)
< 65 dB(A)
Operating Temperature
+15 to +55 °C
IP Rating
IP54 / IP34
Ambient Temperature
+15 to +55 °C

Safety, Standards & Compliance

Standards and Approvals
EN 60529 (IP54/IP34)

Documents

IPD Product Catalogue V17
