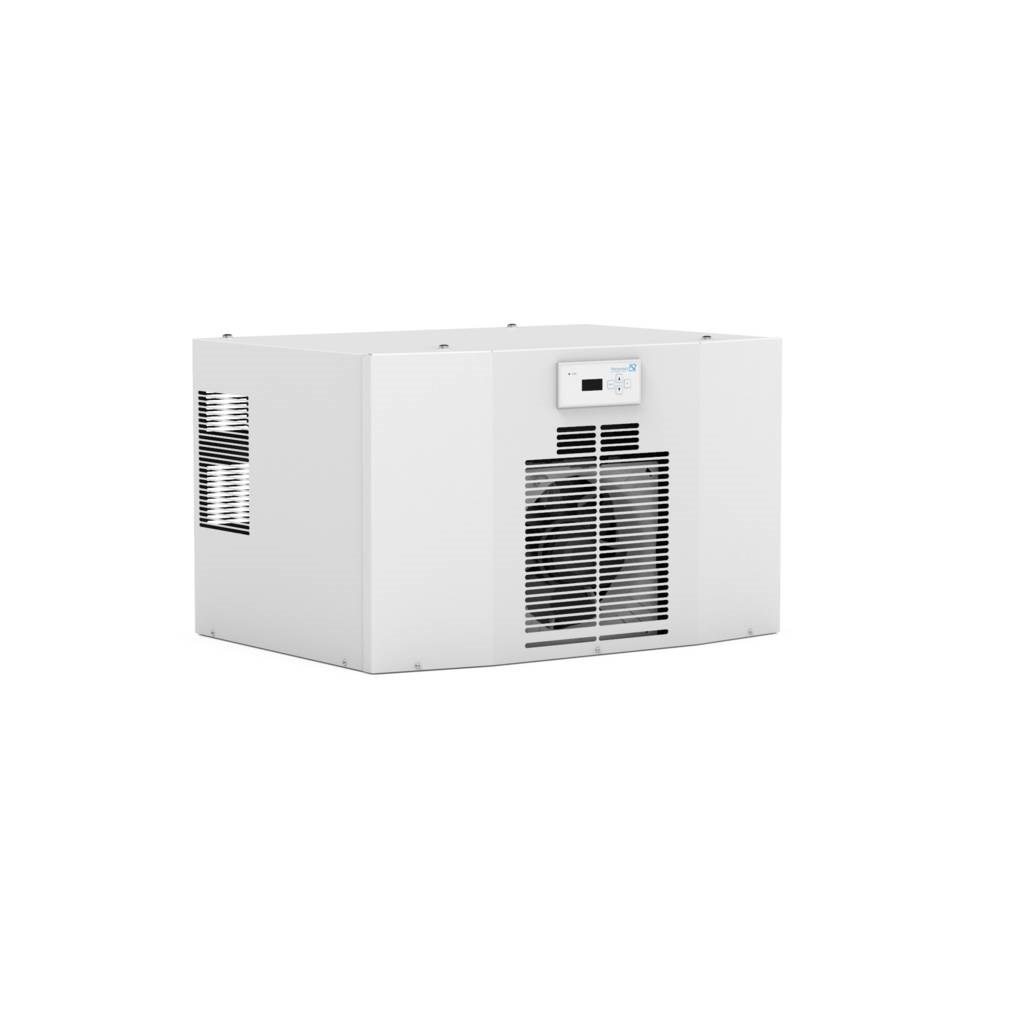

PFANNENBERG COOLING UNIT 400V 4kW RAL7035 IP54 DTT 6801

Product Code: 13256832055

  • Cooling capacity of 4000 W for efficient performance
  • Dual power consumption options: 1618 W, 2050 W
  • High airflow rates up to 2180 cu-m/h external
  • Operates on 400/460 VAC at 50/60 Hz frequency
  • Durable galvanized sheet steel construction
In Stock Low Stock Out Of Stock Please See Attributes
1

Specifications

General

Product Type
Cooling Unit
Brand
Pfannenberg
Series
DTT

Electrical

Power Consumption
1618/2050W
Rated Current (In)
4.2 / 3.6A
Rated Frequency
50Hz / 60Hz
Rated Voltage (Ur)
400/460V
Cooling Capacity
4000/4250 W

Mechanical

Colour
RAL 7035 (Light Grey)
Material
Galvanised sheet steel housing, electrostatically powder-coated cover
Mounting
DTT – Roof Mounting
Unimpeded Airflow-Internal
1450 m³/h
Cover Material
Electrostatically powder-coated steel

Dimensions & Physical Data

Depth
252mm
Height
1539mm
Weight
91kg
Width
485mm

Environmental

Operating Temperature
15°C to 55°C
IP Rating
IP54 / IP34
Ambient Temperature
15°C to 55°C
Noise Level
< 70 dB(A)

Safety, Standards & Compliance

Standards and Approvals
EN 60529 (IP54/IP34)

Documents

IPD Product Catalogue V17
